Section III - Installation
Connecting the Pre-filter
Installation
Electrical Supply
Energy Management and PC
Interface
Energy Management Connection
Alarm Connection

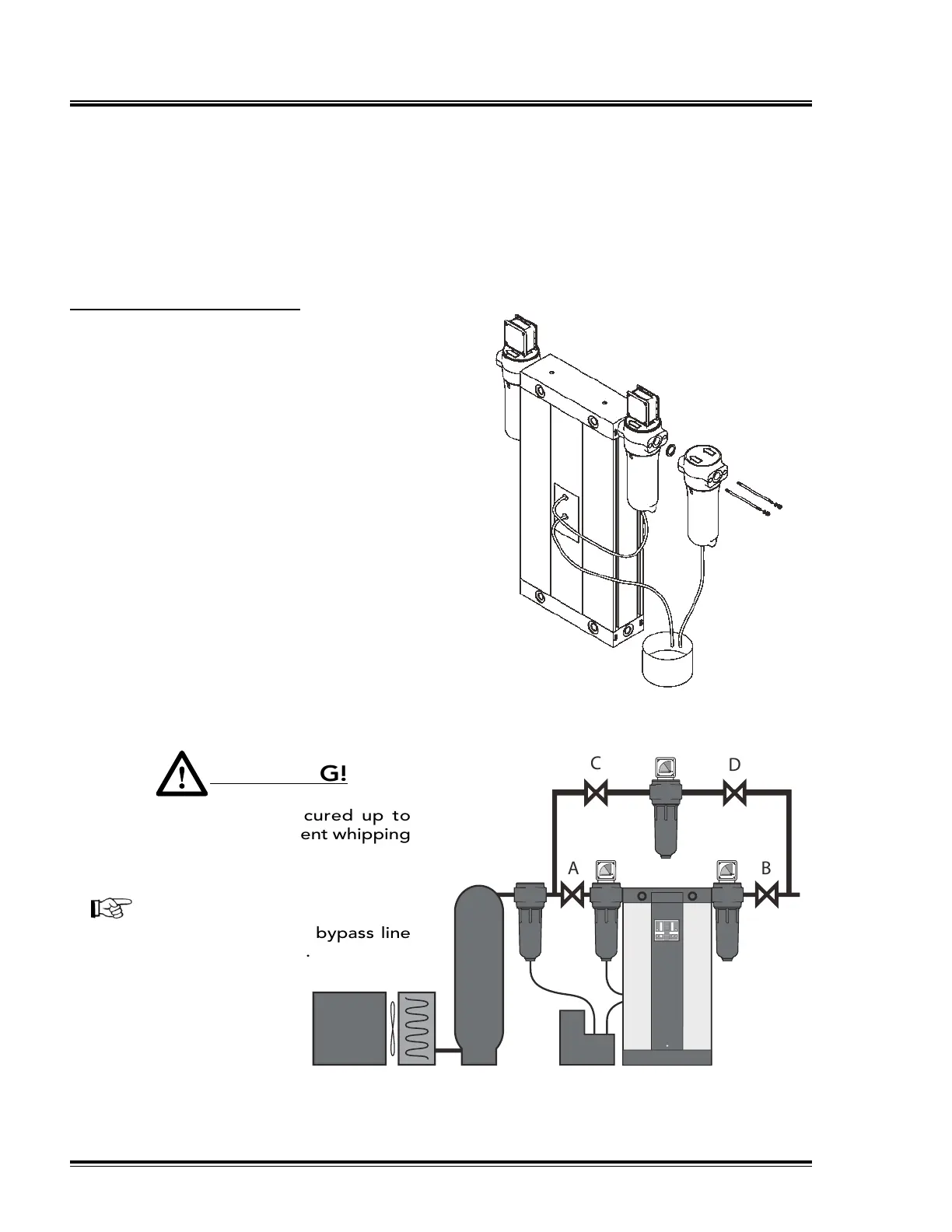

Connecting the Pre-filter
Fit lubricated o-ring between the filter
and top valve manifold, observing the
flow direction on both.
Fasten filter bolts evenly to 4 Nm / 2.94
Ft. Lbs
Fit 4 mm (5/32”) black tubing to filter
and drain valve inlet.
Pipe away condensate with 4 mm
(5/32”) tubing from drain outlet. Ensure
condensate is drained into a fluid/water
separator.
Fit any further filtration or ancillary
equipment.
WARNING!
All tubing should be secured up to
the point of drain to prevent whipping
during discharge.
NOTICE!
It is recommended that a bypass line
including filter is installed.
•
•
•
•
•
•
1.
2.
3.
4.
5.
