Section IV - Operating Procedures
Energy Management Application
Selection
For correct energy management operation
it is important to select the correct mode
of operation for the application.
For applications where the compressor,
receiver and the dryer are in the same
location, linking the controller energy
management into the compressor pressure
limit switch, an effective method of energy
saving is offered.
Energy management
required
Point of use dryer application
(remote from compressor)
Dewpoint dependant energy
management switching
Dewpoint monitoring
Continuous running
compressor
Dewpoint dependant energy
management
switching
Dryer directly connected to
local compressor
and receiver
Compressor load energy
management
switching
Dry receiver application
15 second default EM delay
Wet receiver application
Input compressor/receiver
operating parameters
Calculated EM delay
Compressor
Dry air receiver
Wet air receiver
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
4
5
6
7 8
9
10
11
12
13
14
15
16
2
3
For applications where the compressor
is a continual operating type or the dryer
is point of use or is remote from the
receiver, a dewpoint dependant method of
switching should be employed.
This links the operation of the energy
management to the outlet dewpoint from
the dryer.

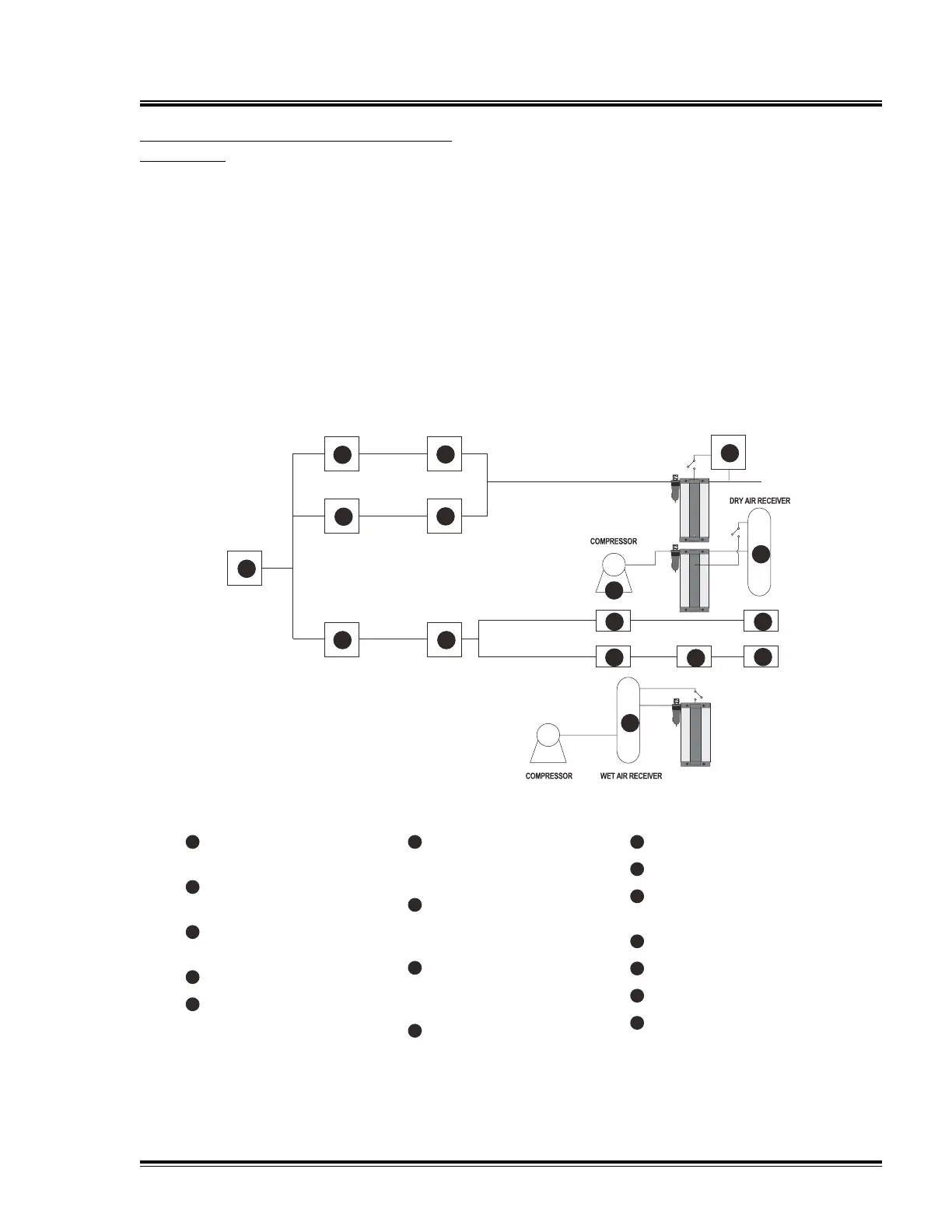

The flow diagram below illustrates the correct selection:
Quincy Compressor-QMOD 17
