Section IV - Operating Procedures
Start-up Procedure
Starting the Interface Program
Programming the Dryer
Energy Management Application
Selection
Start-up Procedure

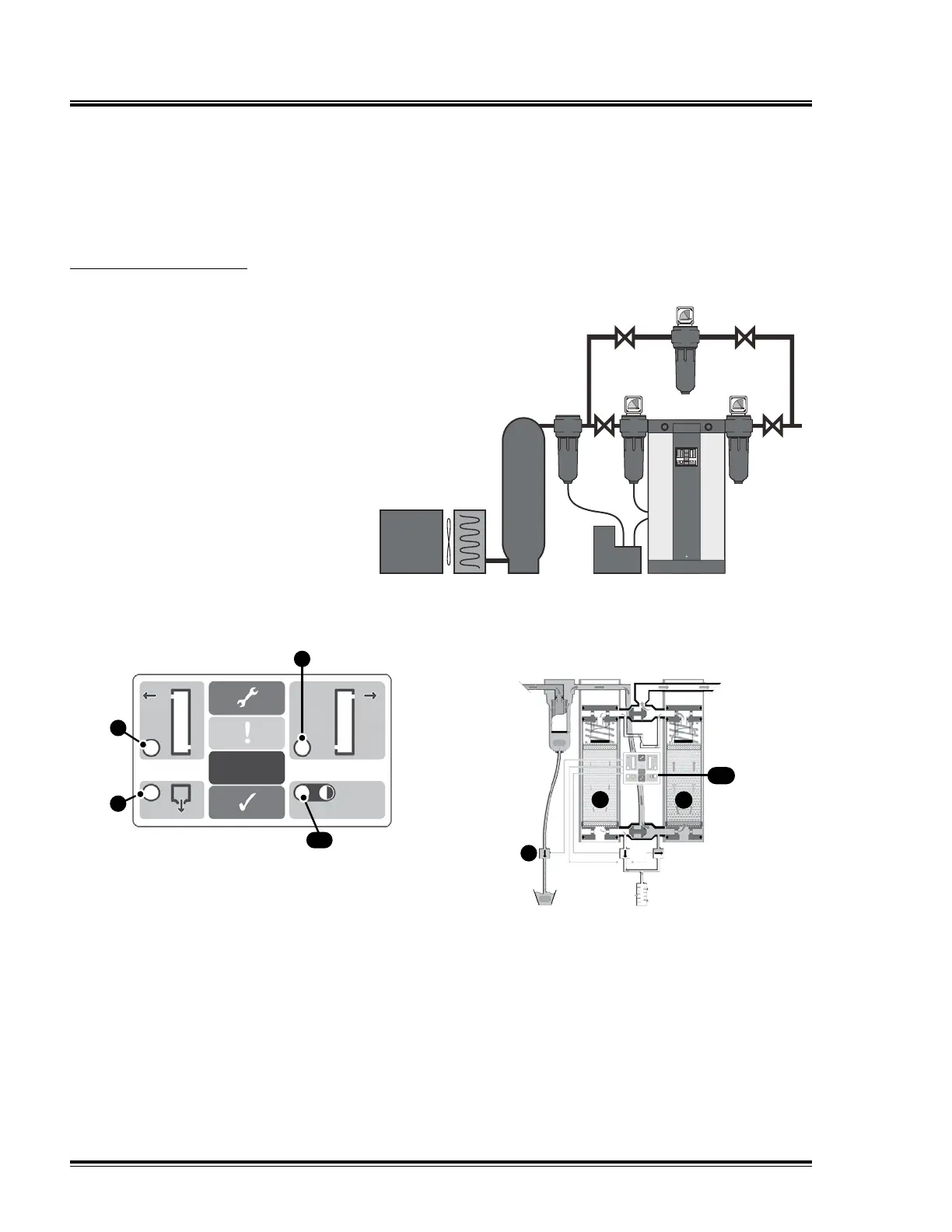

Close valves A, B, C and D.
Switch on compressor.
Open valve A slowly.
Verify there are no leaks
from the dryer.
Switch on electric power.
All four display panel LED’s
will flash simultaneously
green four times then
simultaneously red four
times to acknowledge
application of power and
readiness to function.
Observe display panel for
one complete cycle. Note:
cycle described is factory setting.
X
Z
Y
POWER
Power LED illuminates green and tower
LED X illuminates green.
After 120 seconds, tower LED X
switches off and drain LED Z illuminates
green.
After a further 50 seconds drain
LED Z switches off and tower LED Y
illuminates green.
After a further 120 seconds, tower LED
Y switches off
•
•
•
•
1.
2.
3.
4.
5.
•
•
•
•
C
D
A B
Z
X
Y
POWER
After a further 50 seconds, tower LED
X illuminates green - this is (i) in the
cycle described above.
The above cycle repeats.
Run the dryer for a minimum of 6 hours
to ensure dewpoint is adequate.
Open valve B slowly.
•
•
•
•
