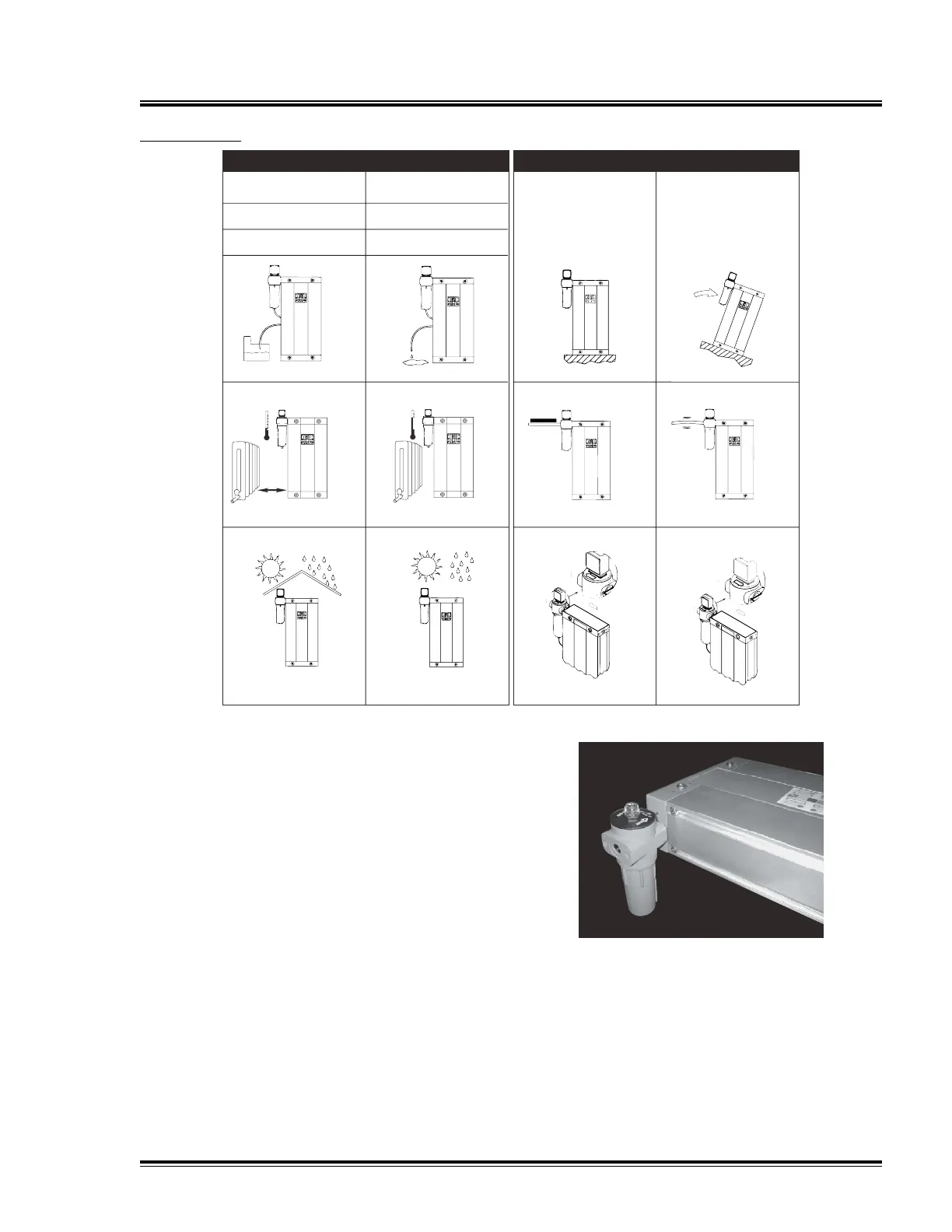

Section III - Installation
Installation
Correct Wrong
< 35°C / 95°F > 35°C / 95°F
< 16 barg / 232 psig < 4 barg / 58 psig
> 12 V < 12 V
Correct Wrong
Installing the Dryer in a Horizontal Position
If installation in a horizontal orientation is
desired, the inlet filter must be installed
vertically and coupled as closely as
possible to the inlet port on the manifold
using a suitable pipe nipple (not supplied).
The dryer must be suitably supported
and and consideration must be given to
support and clearance for removal of the
inlet filter bowl.
Quincy Compressor-QMOD 9
