QUORION QMP 2000 series User Manual

12
QMP (RJ45) Printer (DSUB25 male)
VCC Pin 1 Pin 1 --
RxD Pin 2 Pin 2 TxD
TxD Pin 3 Pin 3 RxD
DTR Pin 4 Pin 4 RTS
GND Pin 5 Pin 5 CTS
DSR Pin 6 Pin 6 DSR
RTS Pin 7 Pin 7 GND
CTS Pin 8 Pin 8 --
Pin 20 DTR
SHLD SHLD SHLD SHLD

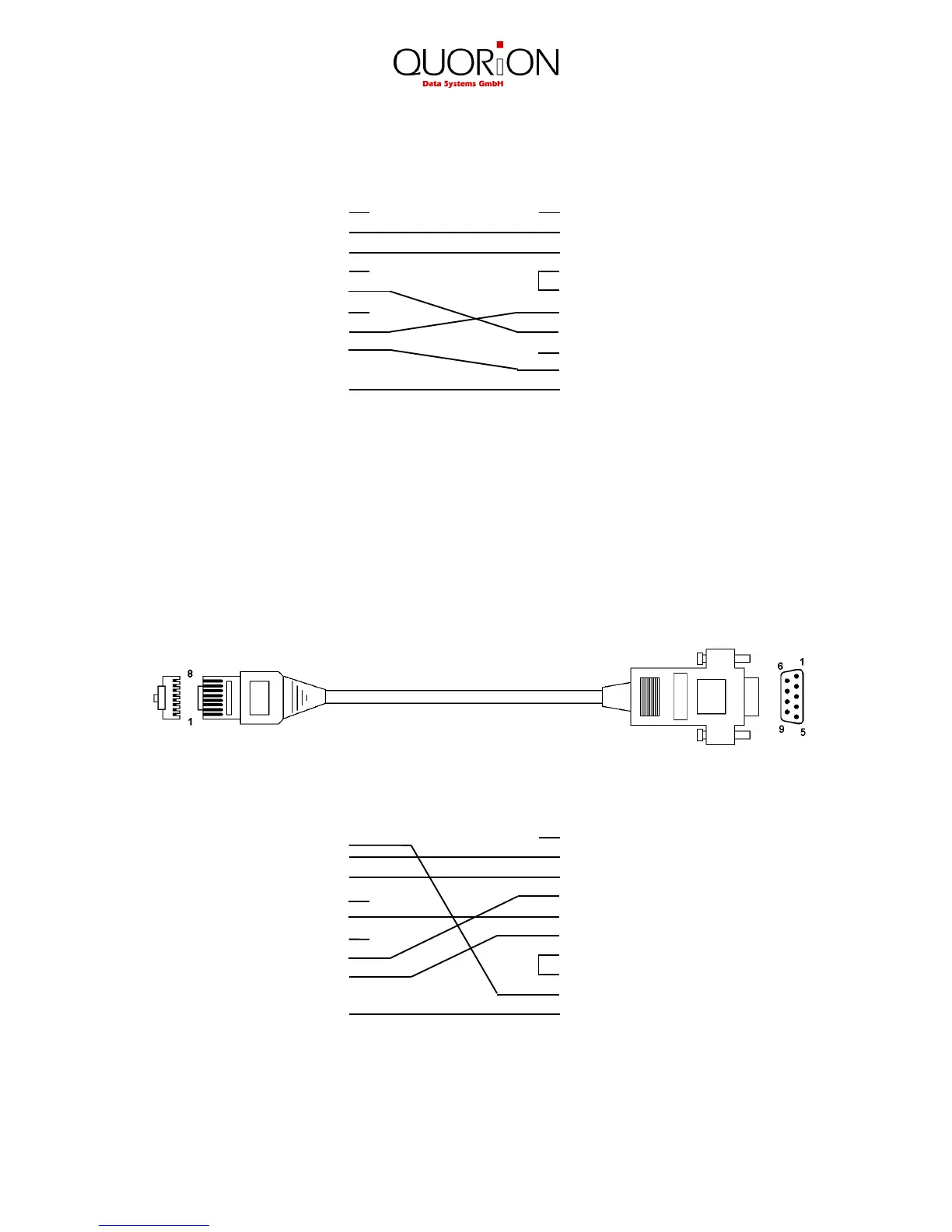

2.3.4 Adapter Cable for RS232
To connect standard peripheral devices you will need an adapter cable from the RJ-interface of the QMP
2000 series to the D-SUB connector of the external device. Connect the original cable of the device to the
D-SUB connector of the adapter and put the other end of the adapter in the interface socket of the QMP
2000.
You can order the special adapter cable from your local QUORION dealer. If you want to make the
connection yourself, please note the following specifications:
QMP (RJ45) QMP (DSUB9 male)
VCC Pin 1 Pin 1 --
RxD Pin 2 Pin 2 RxD
TxD Pin 3 Pin 3 TxD
DTR Pin 4 Pin 4 DTR
GND Pin 5 Pin 5 GND
DSR Pin 6 Pin 6 DSR
RTS Pin 7 Pin 7 RTS
CTS Pin 8 Pin 8 CTS
Pin 9 VCC
SHLD SHLD SHLD SHLD
