Quorum Q150T S User Manual

Q150T Sample Preparation System
Q150T - Instruction Manual 51 10473 - Issue 5

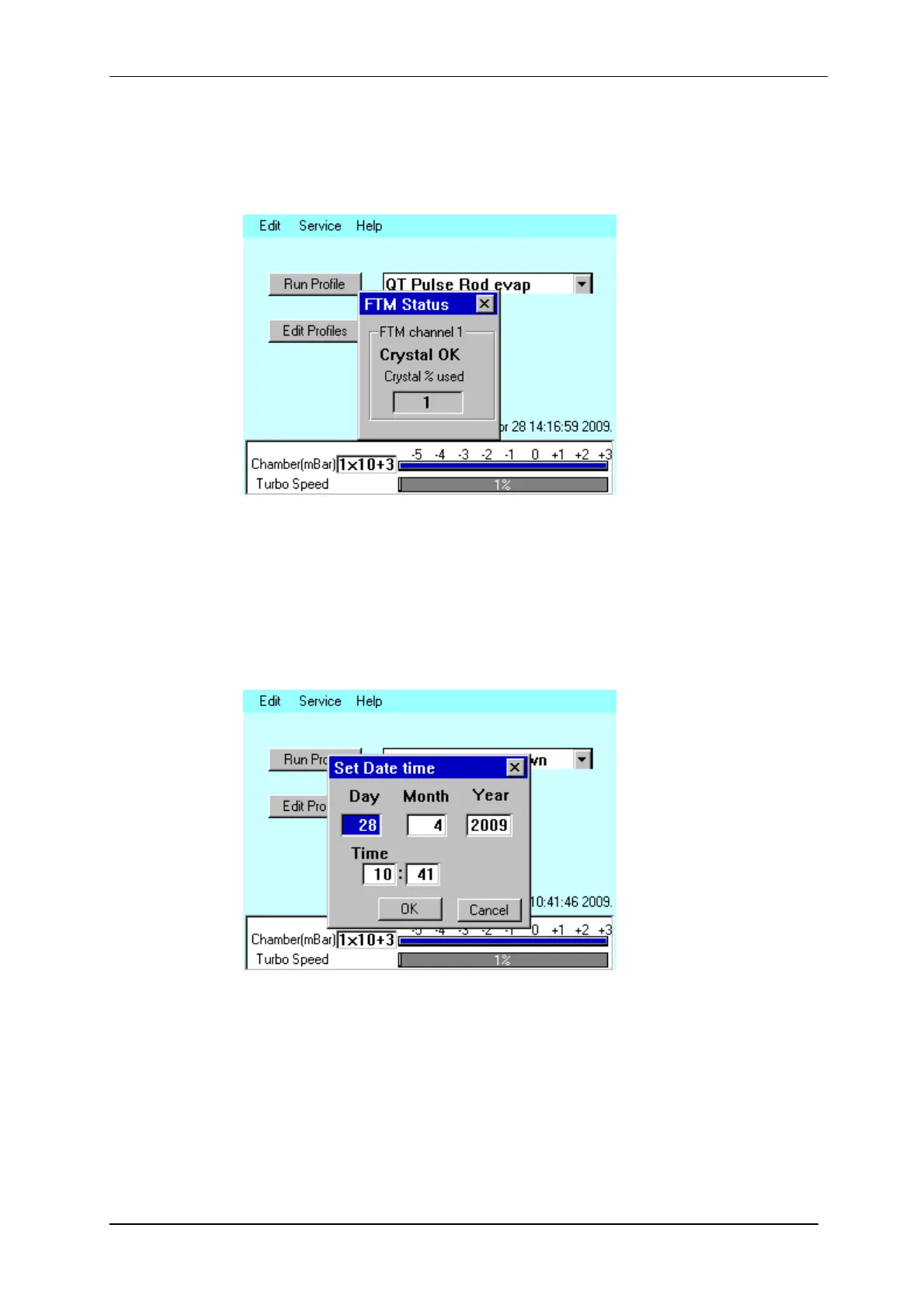

6.4 Film Thickness Monitor
To view the status of the Film Thickness Monitor (FTM), select Service | FTM from the
menu bar. The FTM Status window is displayed (see Figure 6-10).
This shows the percentage of the crystal used and will help you decide when to replace it
(see page 68).
Figure 6-10. FTM Status
6.5 Setting the Date and Time
To adjust the Q150T’s clock, select Service | Set Time from the menu bar. The Set
Date Time dialog box is displayed (see Figure 6-11).
To change any of the numerical fields, tap in the box and then select the correct value
using the displayed keypad. Tap on the OK button to confirm the changes or on the
Cancel button to discard them.
Figure 6-11. Setting the date and time

Quorum Q150T S Specifications

General

Brand	Quorum
Model	Q150T S
Category	Laboratory Equipment
Language	English
