Rabbit 2000 - Rlc (Hl)

Instruction Reference Manual 119
Description
Rotates to the left the data whose address is:
• the data in HL, or
• the sum of the data in IX and a displacement d,or
• the sum of the data in IY and a displacement d.
Each bit in the register moves to the next highest-order bit position (bit 0 moves to bit 1, etc.) while bit 7
moves to both bit 0 and the C flag. See figure below.

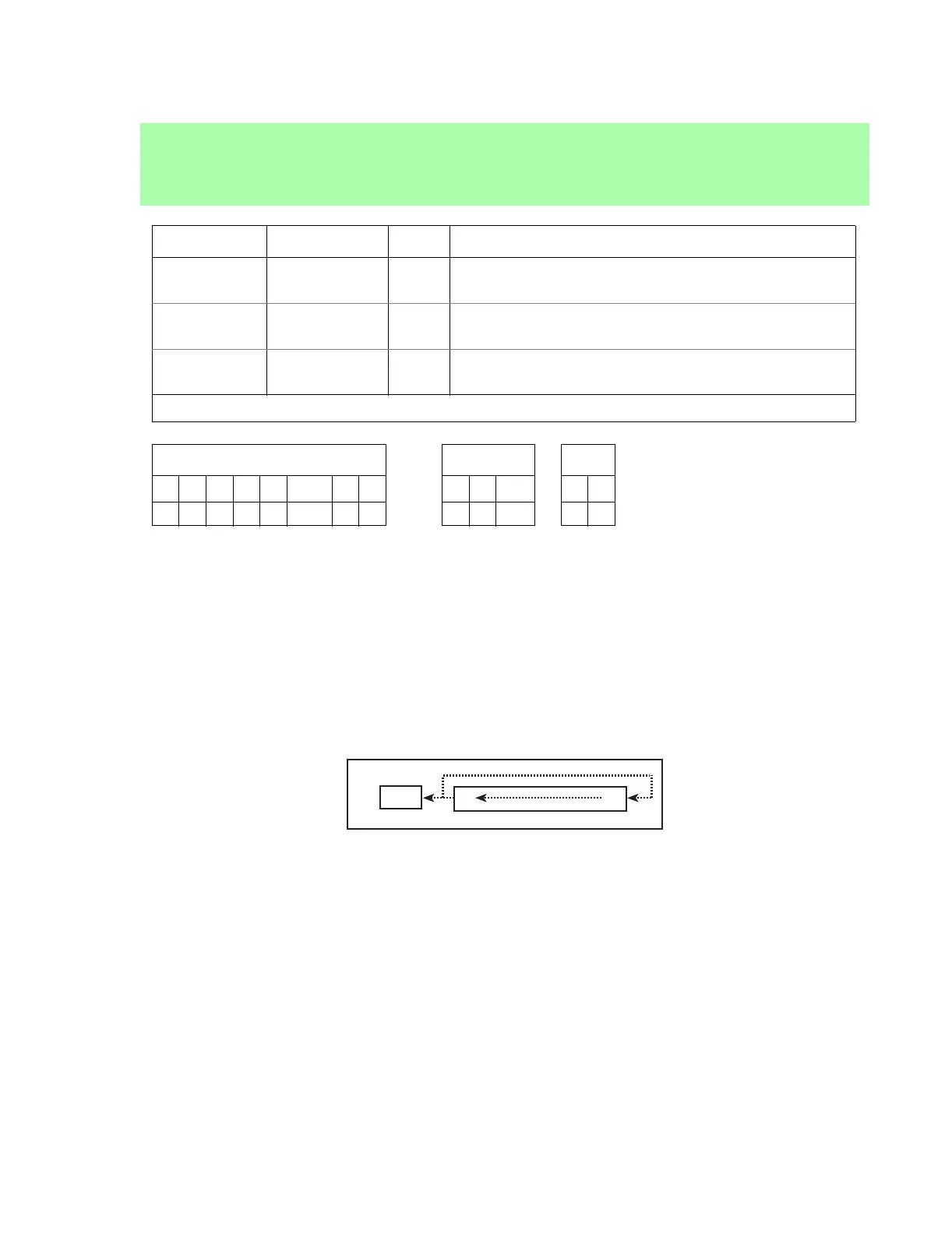

Figure 3: The bit logic of the RLC instruction.
Example
If HL contains 0x4545, the byte in the memory location 0x4545 is 0110 1010, and the C flag is set, then after
the execution of the operation:
RLC (HL)
the byte in memory location 0x4545 will contain 1101 0100 and the C flag will be reset.
RLC (HL)
RLC (IX+d)
RLC (IY+d)
Opcode Instruction Clk Operation
CB 06 RLC (HL)
10*
(HL) = {(HL)[6,0],(HL)[7]};
CF = (HL)[7]
DD CB d 06 RLC (IX+d)
13**
(IX + d) = {(IX + d)[6,0],(IX + d)[7]};
CF = (IX+d)[7]
FD CB d 06 RLC (IY+d)
13**
(IY + d) = {(IY + d)[6,0],(IY + d)[7]};
CF = (IY + d)[7]
Clk: Clocking: *10 (2,2,1,2,3) **13 (2,2,2,2,2,3)
Flags ALTD I/O
S Z L/V C F R SP S D
• • L • • • •
7
0
CF
