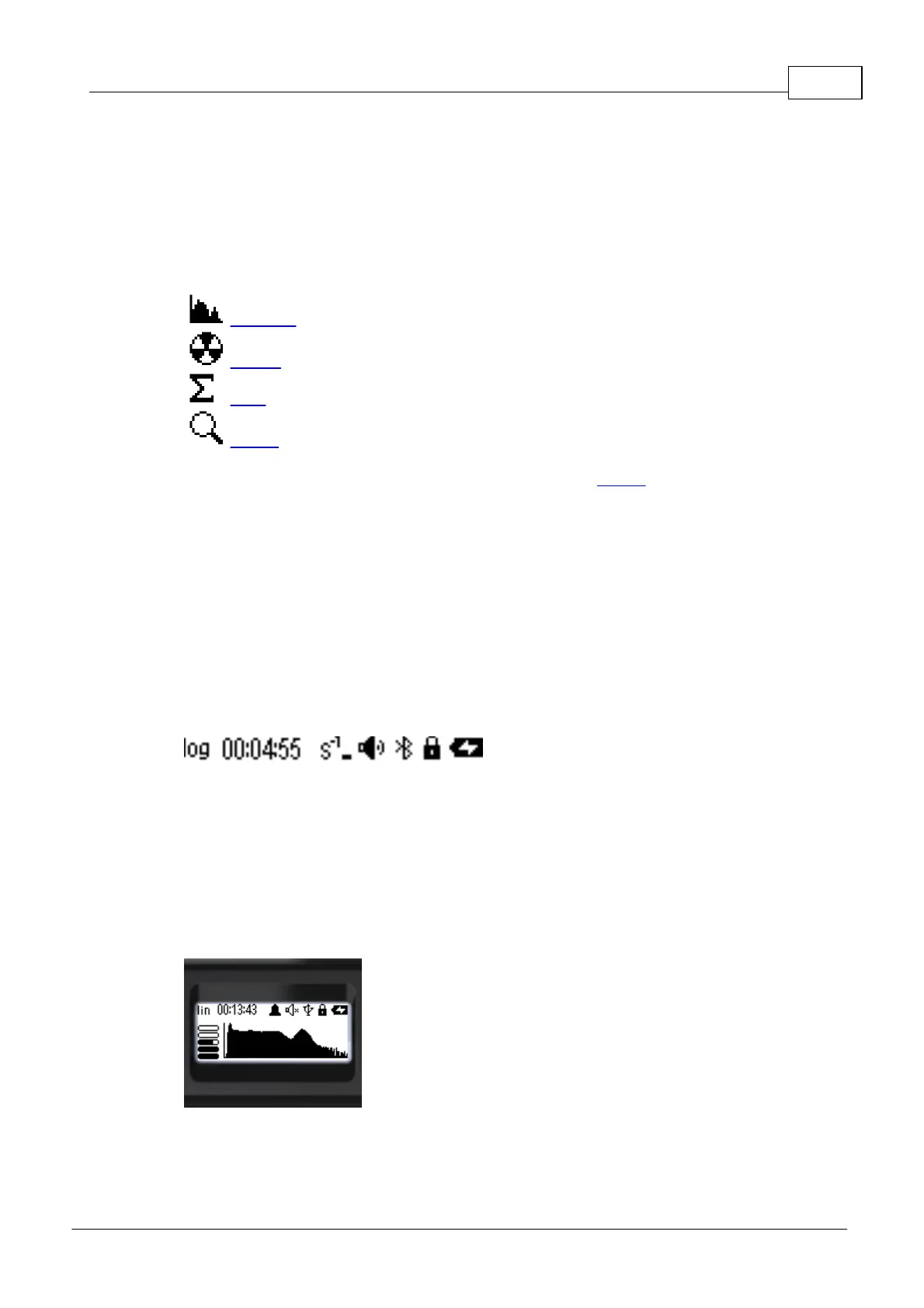

3.11 Display Modes
The RadiaCode-101 dosimeter has a single mode of operation - continuous data collection, accumulation
and analysis.
At any moment one of several ways of displaying the radiation situation assessment is available:
Spectrum – energy spectrum of photon radiation;
Monitor – estimation of dose rate and count rate;
..
Dose – dose assessment;
Search – operational search.
During operation, the instrument also detects the exceeding of all Alarms levels. Informs the user of
radiation hazards or changes in the environment.
3.11.1 Spectrum
The mode is intended for representation of the general view of the photon (gamma and X-ray) radiation
energy spectrum.
In the Spectrum display mode the screen shows:
state panel - from top;
energy spectrum of photon (gamma and X-ray) radiation.
The upper part of the screen, from left to right, contains basic information about the instrument status:
o scale of the amplitude scale of the photon radiation energy spectrum - linear or logarithmic;
o time since the beginning of spectrum accumulation: hours, minutes, seconds;
o sign of exceeding thresholds by dose rate, dose rate, count rate;
o audio indication status;
o Bluetooth or USB connection;
o swing buttons lock sign;
o battery status.
At the bottom of the screen from left to right:
o graphical representation of dose rate estimation.
o histogram of the photon radiation energy spectrum;
Labels are placed under the energy scale of the histogram:
o dots - every 100keV;
