Radio Systems Millenium-D Digital Console Page 18

Channel Stop Signal - Input A*

Channel Stop Signal - Input B*

Channel Start Signal - Input B*

Channel Start Signal - Input A*

Remote Control Start/Stop Outputs

from the Console Channel

Remote Control On/Off Inputs to the Console Channel

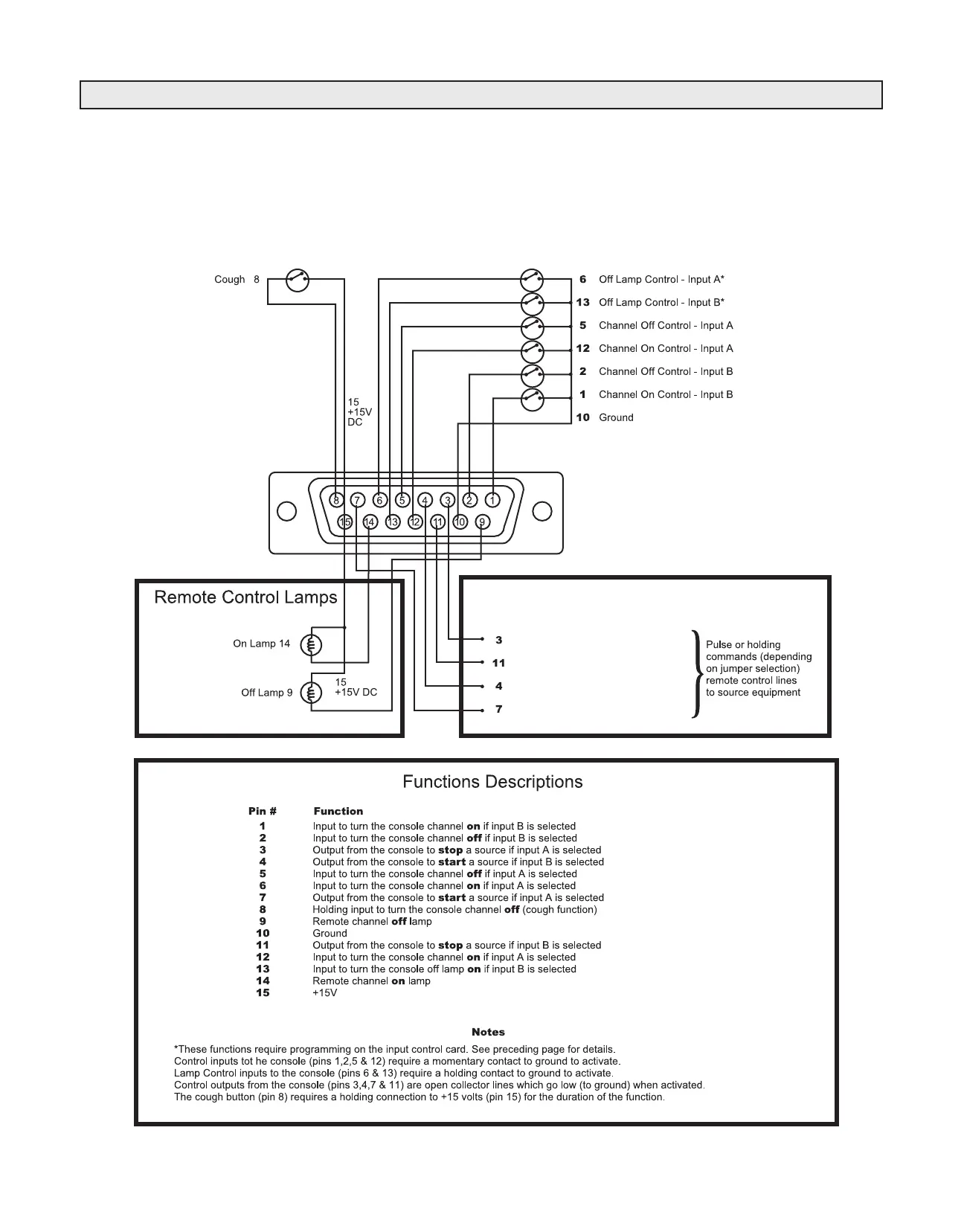

Illustration B-3

Remote Control Wiring - “Classic” Version

(for console models shipped after 10/15/10 with control prom PN: 18407)

Note: Jumper JU213 on Input Control Board must be installed to initiate this mode of remote control
