Radio Systems Millenium-D - Illustration

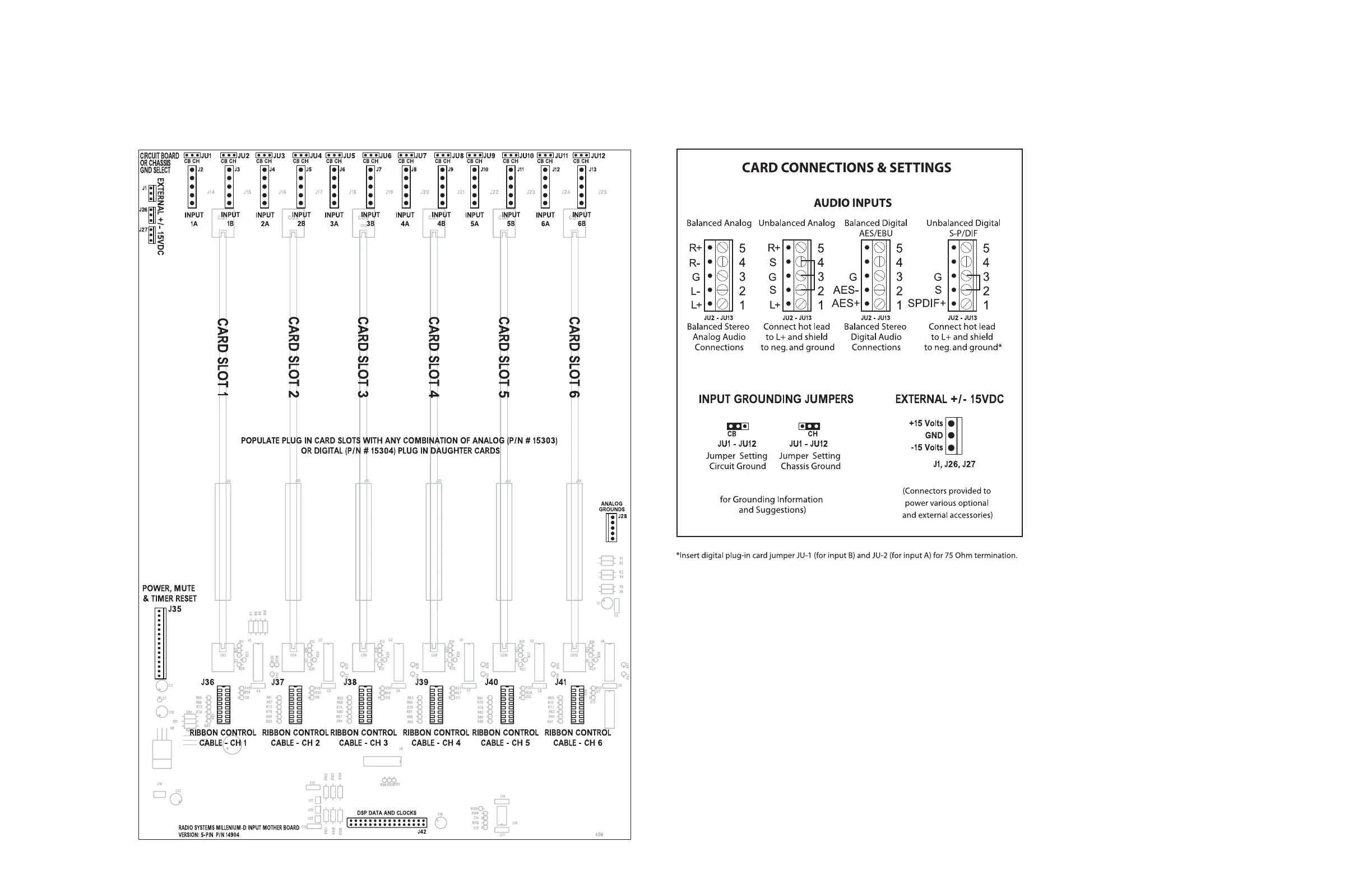

6 INPUT MOTHER BOARD
5 PIN CONNECTOR VERSION p/n 14904
Description
This board houses 6 channels of DIGITALor analog output cards. Cards can be inserted in any slot.
This 5-pin connector version of the board utilizes 5-pin removeable barrier strip connectors for all analog and DIGITAL audio I/O.
One of these boards per each 6 console channels mounts on the lower right of the console
Illustration C-4
(See Manual Section 1.4.6
