Radio Systems Millenium-D Digital Console Page 9

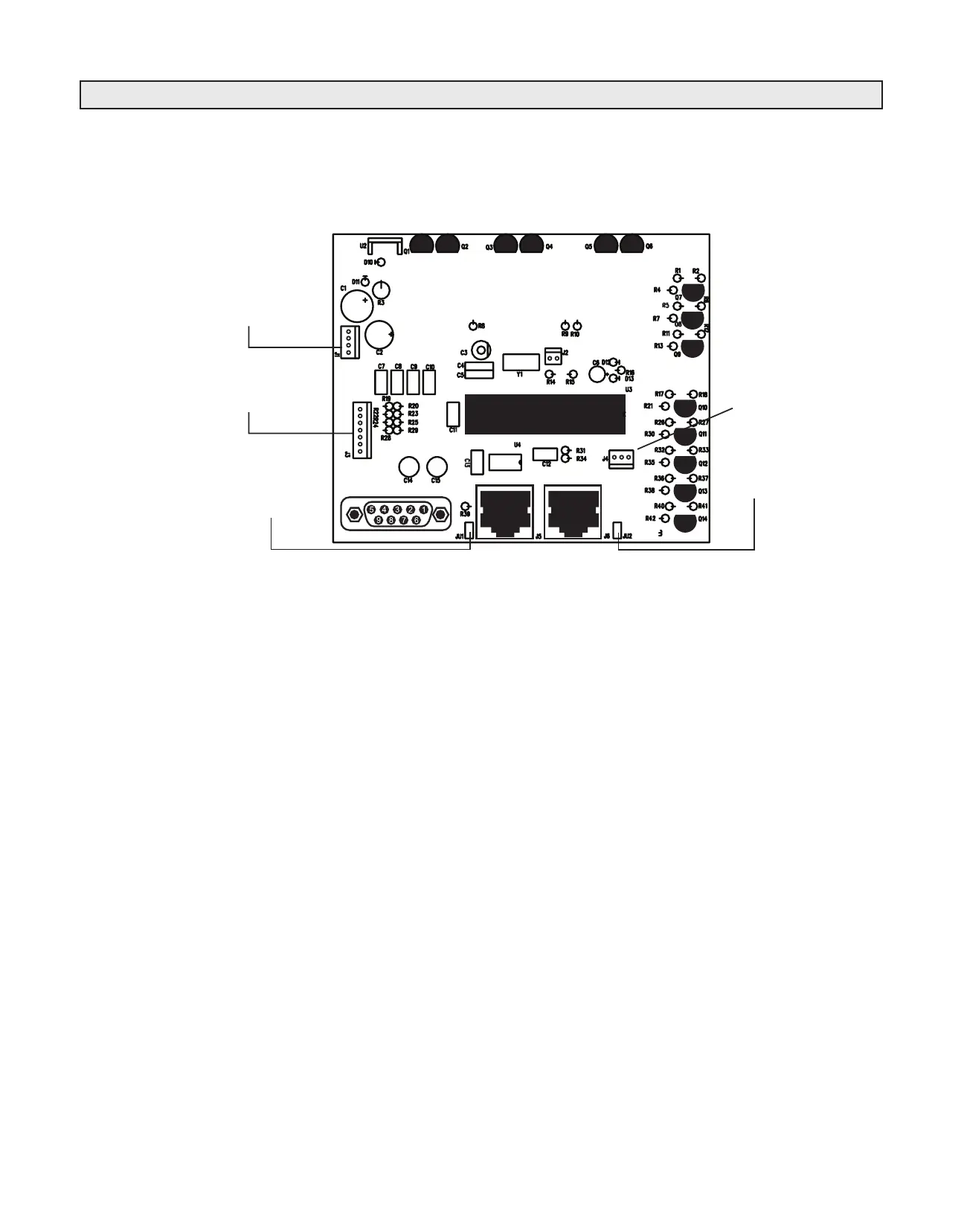

Illustration A-1
CT-2002 Console Clock/Timer/Master Clock
To Console
Monitor Board J3
To Console
Output Board J1
Insert jumper for
timer only operation
General Operating Instructions
All units may operate in stand-alone or slave displays. Clock Set and Up Timer functions can be controlled
by the front panel buttons or the infra-red remote control. However, the IR remote control is required for
entering down times and internal setup functions.
Console Front Panel or Wired Remote Operations
Clock/Timer (Mode) Select
All CT-2002 unites operate as both clocks and timers. Switch between modes by pressing the MODE button
on the console front panel. The front panel LED will light to indicate the mode selected.
To Set the Clock:
1. Press the mode button to select the time-of-day display. The clock LED will illuminate.
2. Press and hold the STOP and START buttons. The set LED will illuminate. The display will reset to 12:00:00.
3. Press the STOP button to advance the hours. Press the RESET button to advance the minutes
(note - seconds are not setable and remain at :00.
4. Start the clock at the top of the minute by pressing the START button. The set LED will extinguish.
Note: If Serial Time of Day is supplied to the CT-2002 (slave mode), it will not be possible to enter the Clock Set
Mode. Time-of-Day set can be done at the master unit. The displayed hours can be offset via the IR Remote Control.
To Use the Up Timer
1. Press the Mode Button to select the timer display. The timer LED will illuminate.
2. Press the START button to start timing.
3. Press the STOP button to stop timing.
4. Press the RESET button to return the display to 00:00
Note: Press the Auto button to allow automatic reset and start of the timer when a console channel on button
is depressed. (programming of JU15 for input A or JU17 for input B to allow this function on each channel is required.)
Factory use only
Insert jumper for
termination resistor
(last slave clock in line)
J7 (9 Pin D Female)
Pin 1 Serial Data Out +
Pin 2 Serial Data In +
Pin 3 Serial Data In -
Pin 4 Serial Data Out -
Pin 5 GND
Pin 6 TOH Reset
Pin 7 GND
Pin 8 N/C
Pin 9 N/C
J5 Serial Input (RJ-45)
Pin 1 n/c
Pin 2 n/c
Pin 3 Input +
Pin 4 GND
Pin 5 TOH Input
Pin 6 Input -
J6 Serial Loop-Thru (RJ-45)
Pin 1 Output +
Pin 2 Output -
Pin 3 Input +
Pin 4 GND
Pin 5 TOH Input
Pin 6 Input -
J6
J5
J7
