Radio Systems Millenium-D Digital Console Page 21

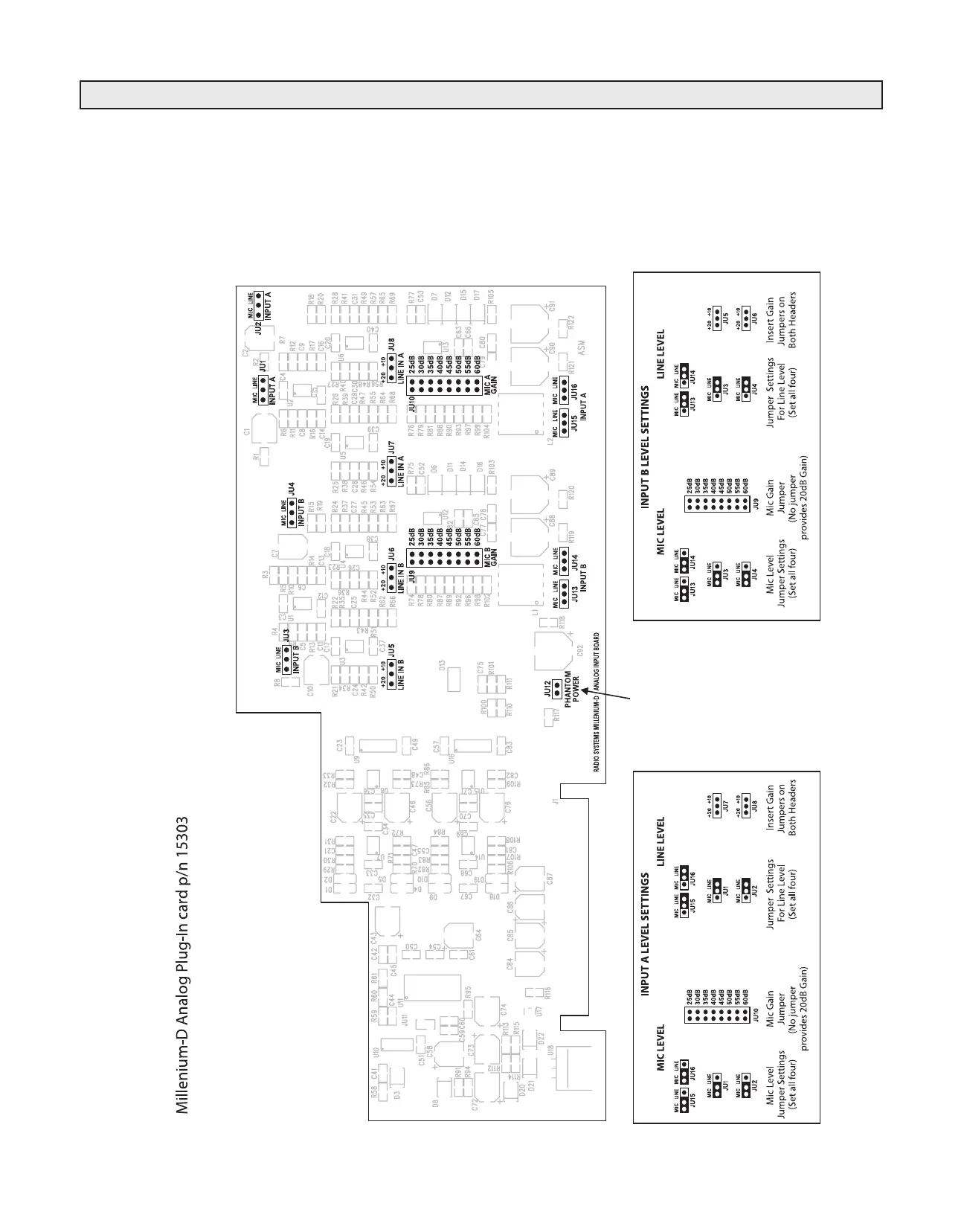

Illustration C-1
Analog input plug-In Board p/n 15303
This board provides two stereo analog inputs
Mic thru line level are jumper selectable for each individual input.
This board can be plugged into any slot on the 6 input motherboard
P/N 15303
+15v and +48v phantom power
is activated by inserting jumpers
on J-7 on the digital output board.
MIC LEVEL
Note:
When an input is set for
mic level it is automatically
applied in MONO by
summing the left input to both
left and right output channels.
PHANTOM POWER
Insert Jumper for Phantom Power
(effects both A & B inputs)
