Radio Systems Millenium-D User Manual

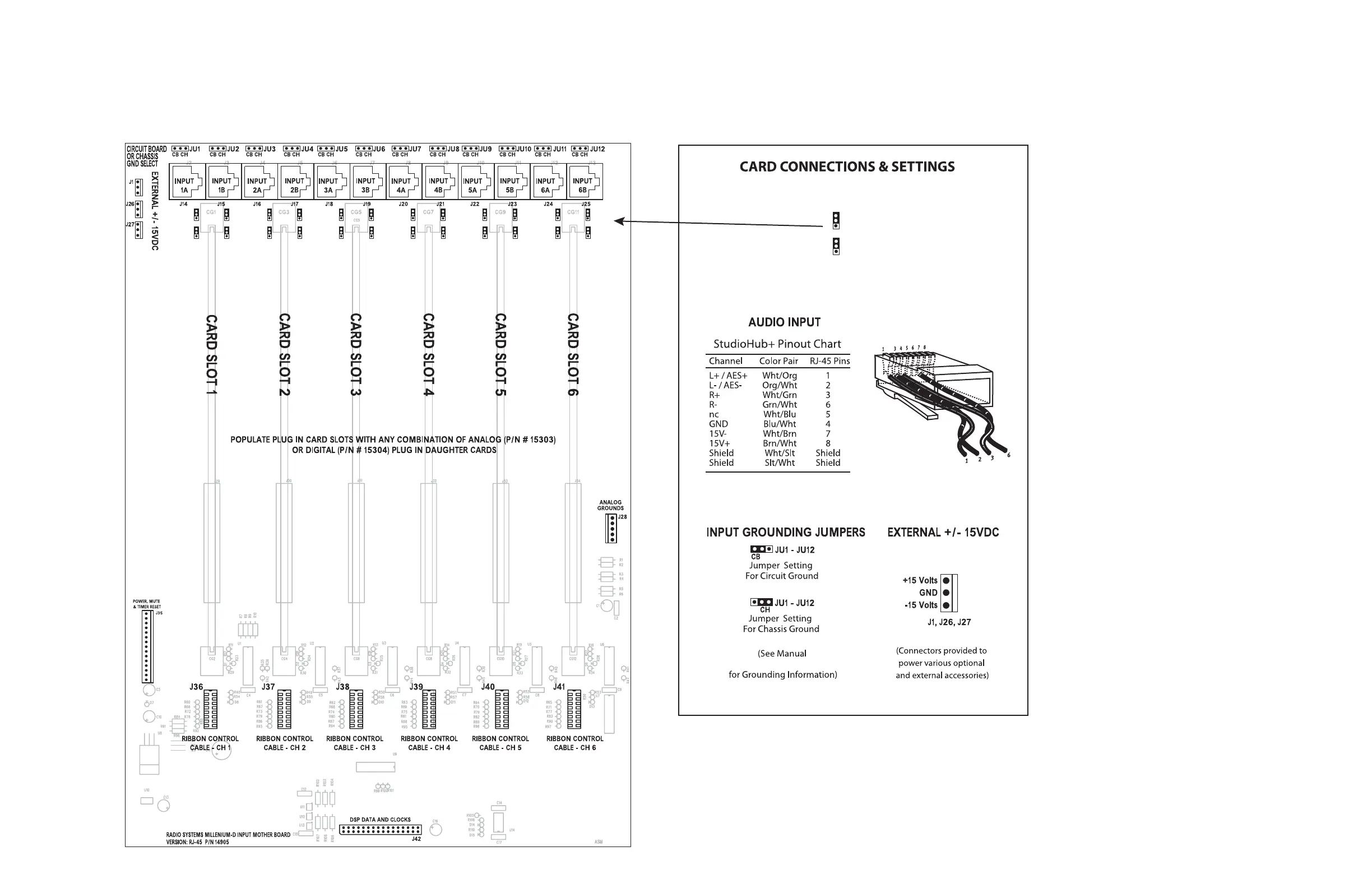

6 INPUT MOTHER BOARD
RJ-45 CONNECTOR VERSION p/n 14905
Illustration C-3
Description
This board houses 6 channels of DIGITAL or analog input cards. Cards can be inserted in to any slot.
This RJ-45 version of the board utilizes StudioHub+ standard pin outs for all analog and DIGITAL audio I/O.
One of these boards per each 6 console channels mounts on the lower right of the console.
Section 1.4.6
JU13
JU25
JU14
JU26
JU15
JU27
JU16
JU28
JU17
JU29
JU18
JU30
JU19
JU31
JU20
JU32
JU21
JU33
JU22
JU34
JU23
JU35
JU24
JU36
ST
M
ST
M
INPUT B
INPUT A
INPUT B
INPUT A
INPUT B
INPUT A
INPUT B
INPUT A
INPUT B
INPUT A
INPUT B
INPUT A
STEREO
STEREO/MONO INPUT JUMPERS
MONO
STEREO
MONO
Install both upper jumpers for stereo inputs (default).
Install both lower jumpers to mono a stereo input.
