Radio Systems Millenium-D User Manual

Radio Systems Millenium-D Digital Console Page 35

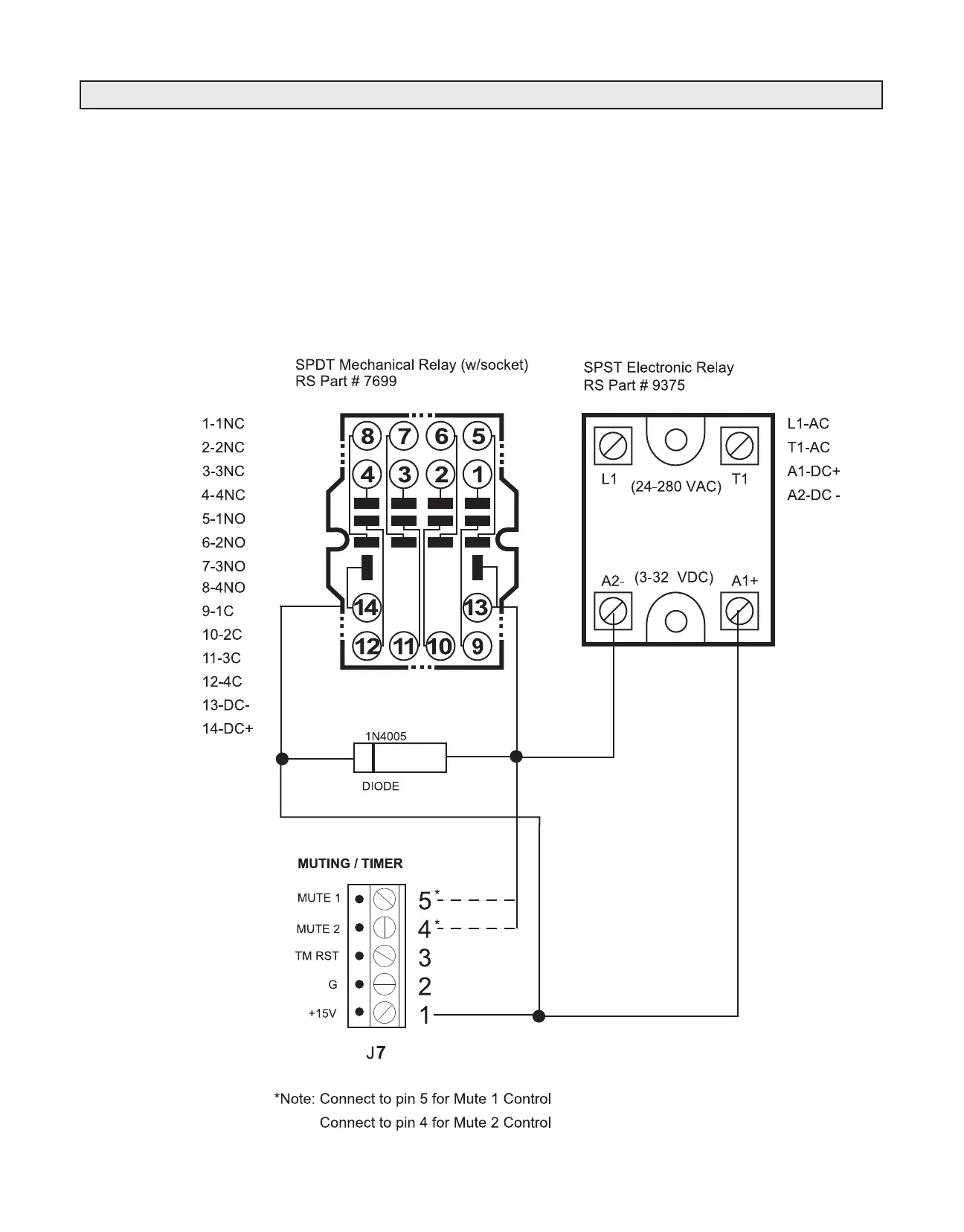

Illustration D-5
Auxiliary Control Relay Wiring
Connect the auxiliary relay (optional) (RS Part #7699) to the console muting connector J7 on the analog output board
for mute-1 or mute-2 control of air lights and other outboard equipment
A solid-state model of this relay (RS Part #9375) is also available. Note that this part is only supplied single pole
(SPST) configuration.
IMPORTANT NOTE: Take extreme care in wiring this relay to console connectors J7 to ensure that no hazardous (110V)
voltage is applied to pins on this connector.
