Wiring
Installation Guide CT100

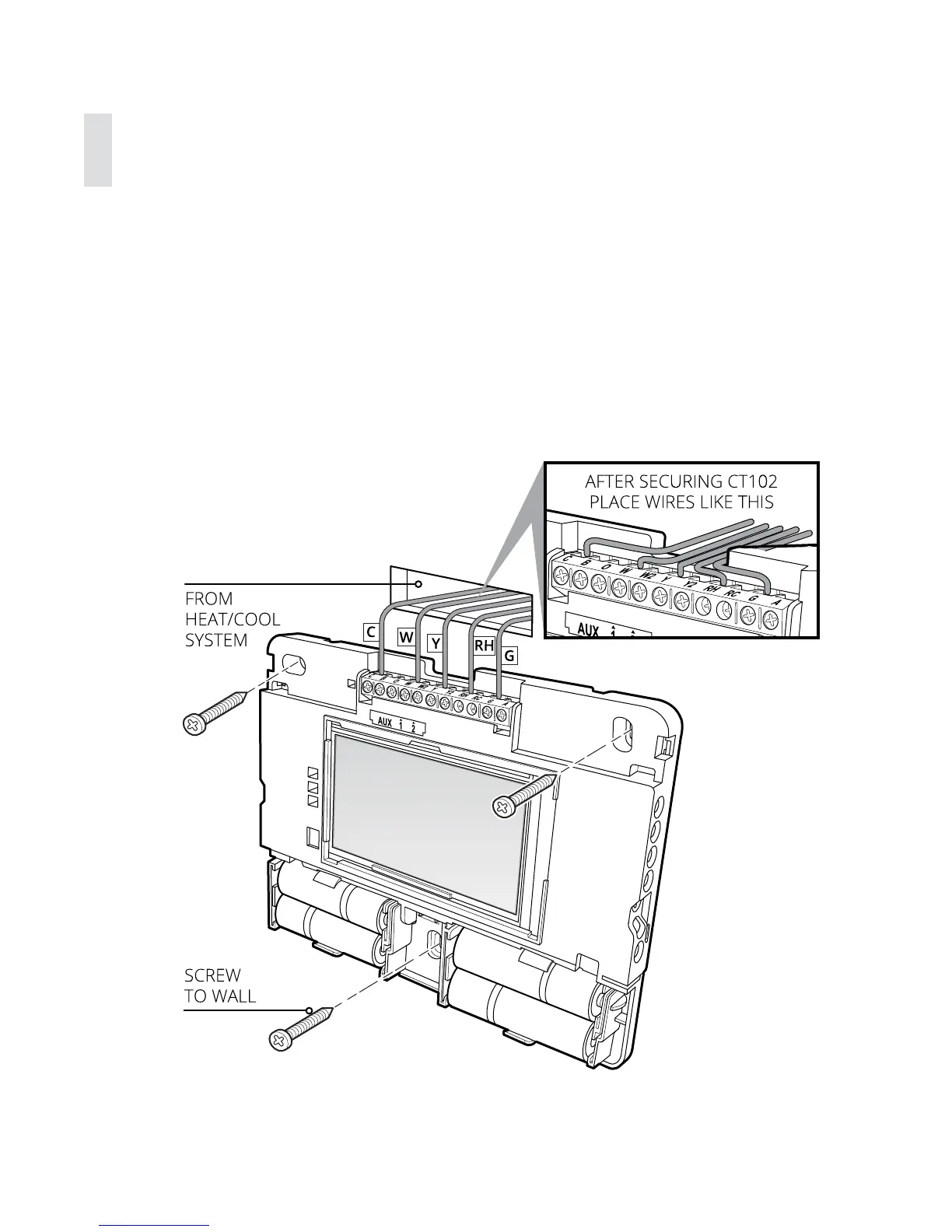

Mount the CT100 to the Wall
1. Hold the CT100 against the wall, with the wires coming over the
top; above terminal block.
2. Position CT100 for best appearance, cover the hole in the wall.
3. Mark fi rst and drill a 3/16-in.(4.8mm) hole at each screw location.
4. If you are mounting the CT100 to sheet rock or if you are using the
old mounting holes, use the plastic anchors provided.
5. Attach the CT100 to the wall with the screws provided.
