Radio Thermostat CT100 User Manual

Setup
Installation Guide CT100
-
+
NEGATIVE
-
AA
+
-
AA +
+
AA
-
+
AA
-
POSITIVE
4 PROPERLY INSTALLED
AA ALKALINE BATTERIES
AA ALKALINE BATTERIES

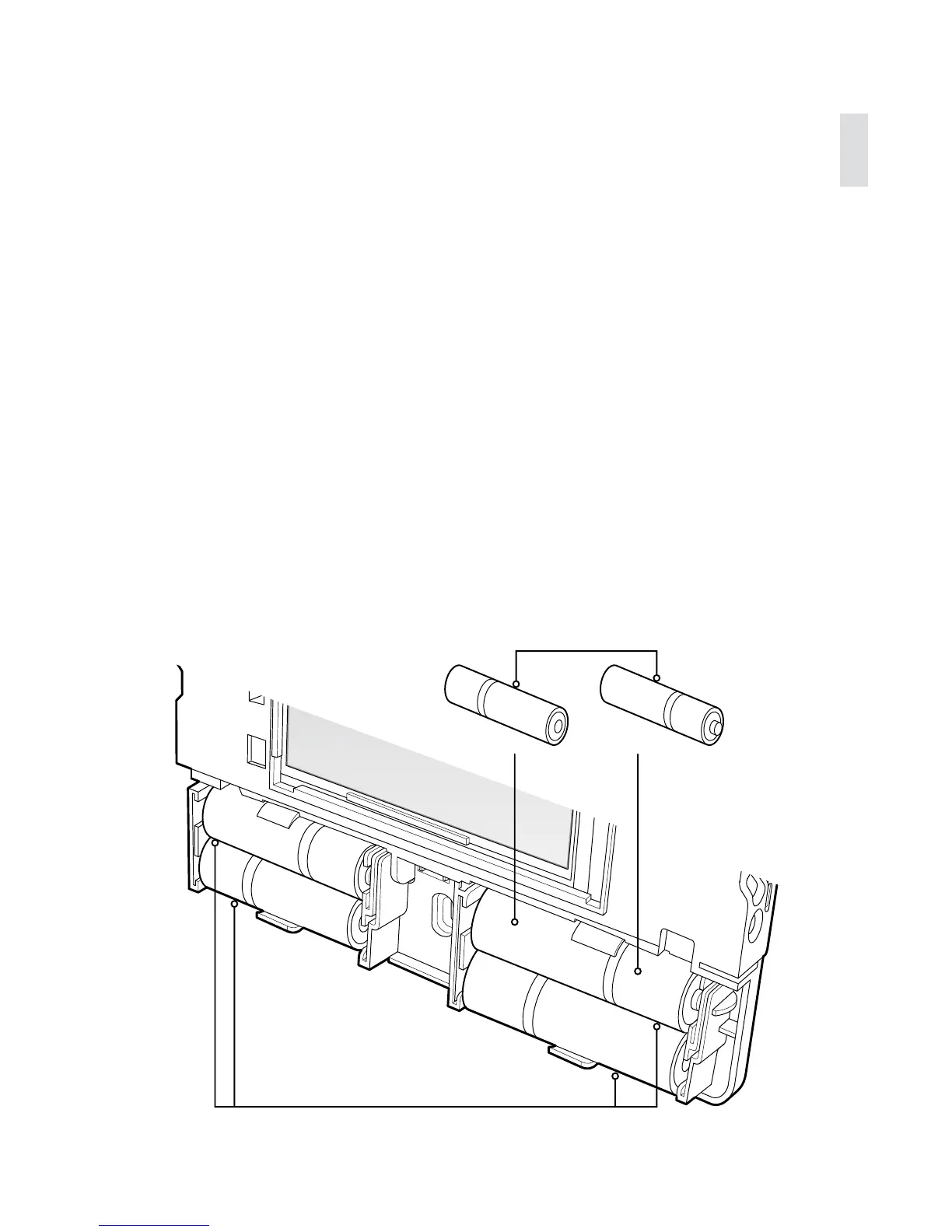

Battery Installation
While the CT100 Thermostat can run without batteries on C-wire
power, you should install batteries as well to provide power to the
unit during outages.
1. Install four (4) AA alkaline batteries following the marked polarity
in the battery compartments. Insert the battery negative end fi rst
against the spring, then push the positive end in.
2. With all the wires connected and the unit attached to the wall, it
is time to turn the AC power back on. Reconnect the power at the
breaker you used to switch it off . The CT100 will power-up in the
OFF mode.
3. Trip the RESET button to implement the HVAC switch selections.
4. Your CT100 is not yet confi gured to operate your HVAC system.
You must now confi gure your thermostat (see page 15.)
Power Supply
13

Radio Thermostat CT100 Specifications

General

Brand	Radio Thermostat
Model	CT100
Category	Thermostat
Language	English
