11/21
R&M Materials Handling, Inc. reserves the right to alter or amend the above information without notice.
4 CONSTRUCTION

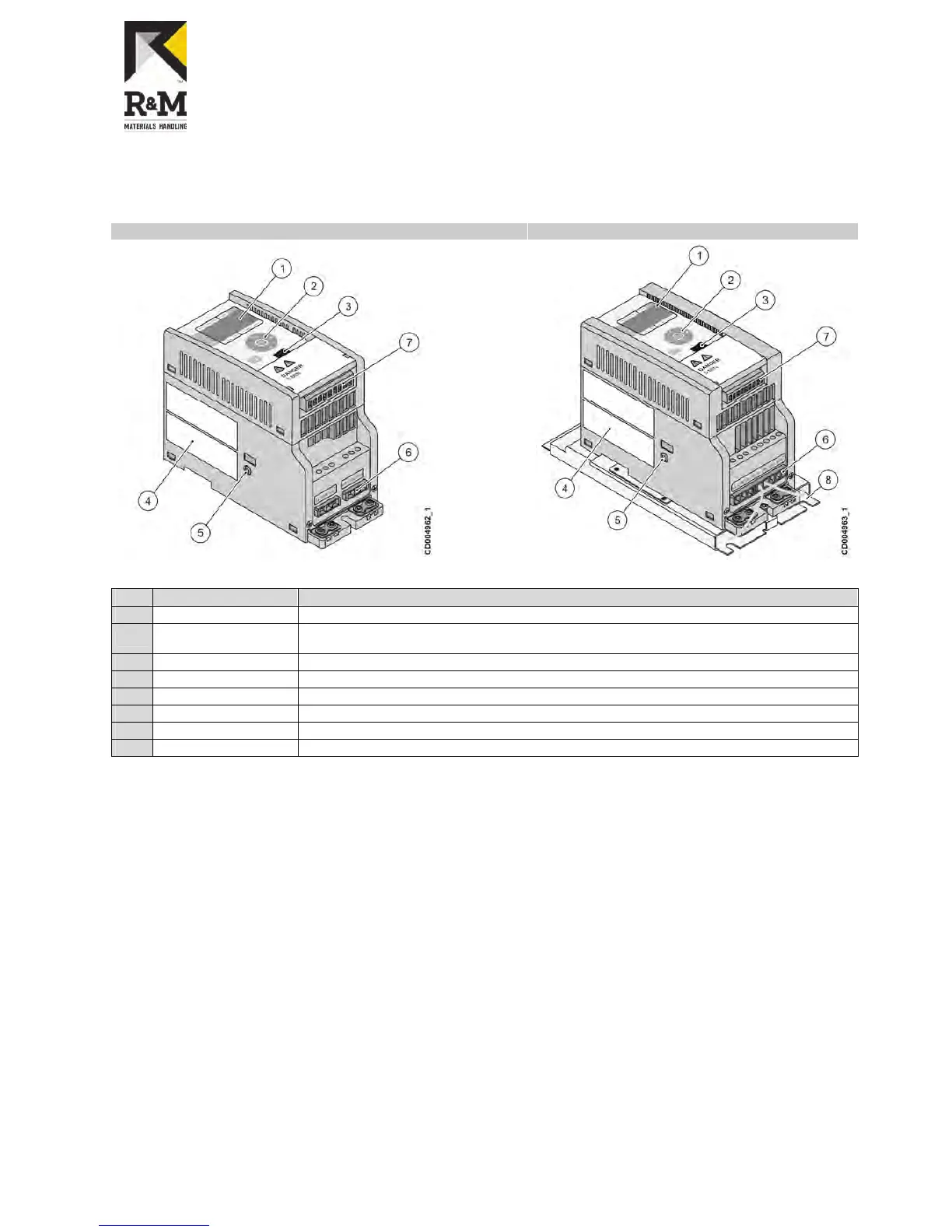

4.1 Main components
The 003 model The 006 model
Pos. Part Description
1 Display LCD Display
2
Navigation and
confirmation buttons
Buttons with four arrow navigation buttons and buttons for back/reset and confirmation, used in navigating
in the menu structure and in adjusting parameter values.
3 Terminal for MCA cable MCA cable is used with Connection tool for TM.
4 Main sticker Identification data
5 EMC fIlter screw EMC level of the frequency converter can be modified by removing the EMC filter screw
6 Power supply terminals 3-phase power supply and motor supply terminals
7 Digital input terminals 6 digital input terminals (API2 control board)
8 Braking resistor Internal braking resistor (in model 006)
