R&M ControlMaster NXT - New frequency controller installation

1

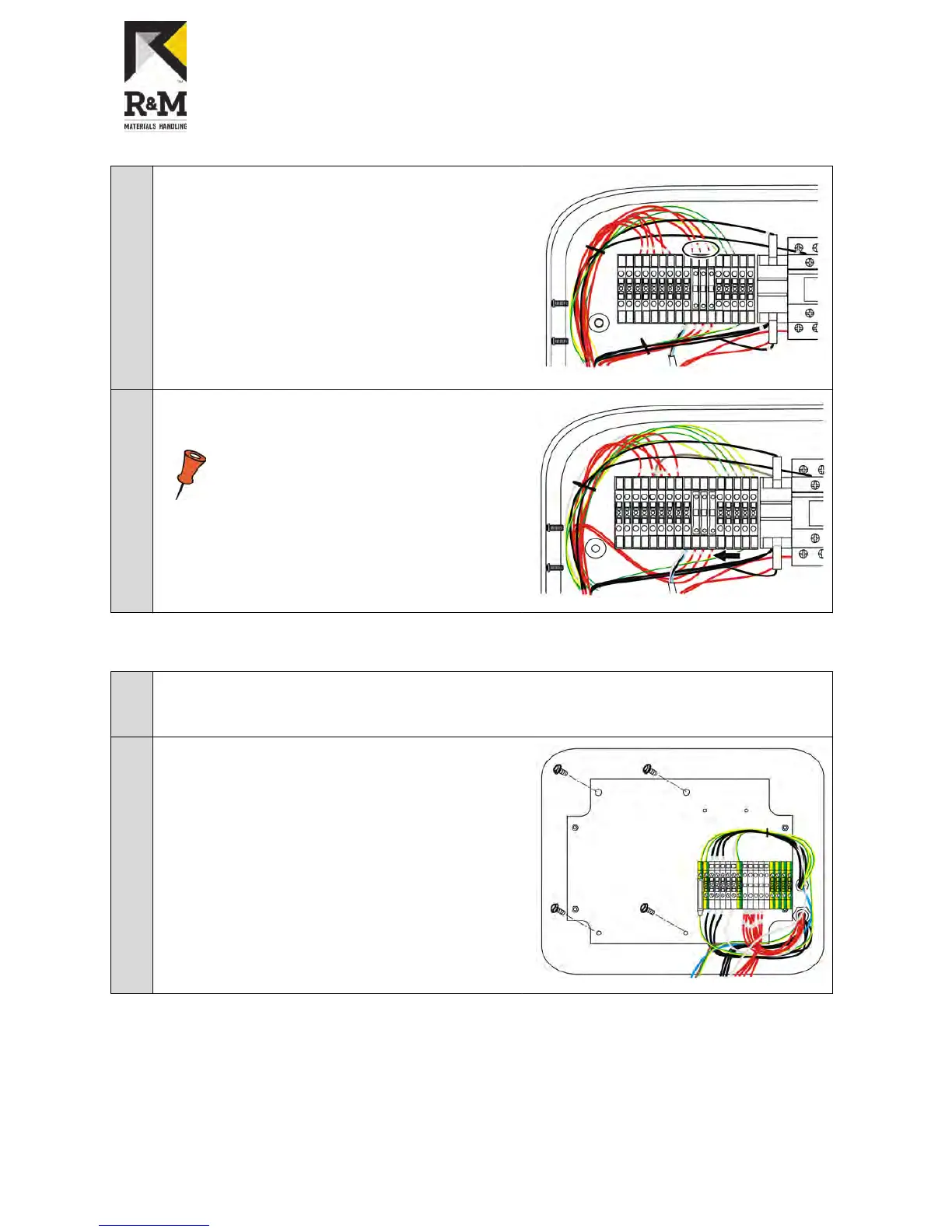

Remove the control signal wires from the top side of
the front resistor.
2
Connect the control signal wires to the bottom side of
the front resistor. See the picture below.
Do not mix the order of the wires.
4.5 New frequency controller installation
1
If the CMX 022 has an external braking resistor: install the braking resistor to suitable place close to
ControlMaster ®NXT 006 in the crane. Install the braking resistor wire from the braking resistor to the
cubicle.
2
Put 4 pcs , size M5 x 10 Flanged installation screws
into back plate. Leave screws loose. The installation
rack has slotted screw holes.
