11 = Inst Trig input connector (BNC)
12 = Signal Valid output connector (BNC)
13 = Clk Syn and Clk Syn N output connectors (SMA)
14 = Pulse Sync, Pulse Video and Pulse Ext connectors (BNC)
15 = LF output connector (BNC)
16 = Ext 1/2 input connectors (BNC)
17 = AC power supply connection and main power switch
18 = RF output connector
19 = Serial number (six digits in the string 1419.8888.02-<serial number>-<checksum>)

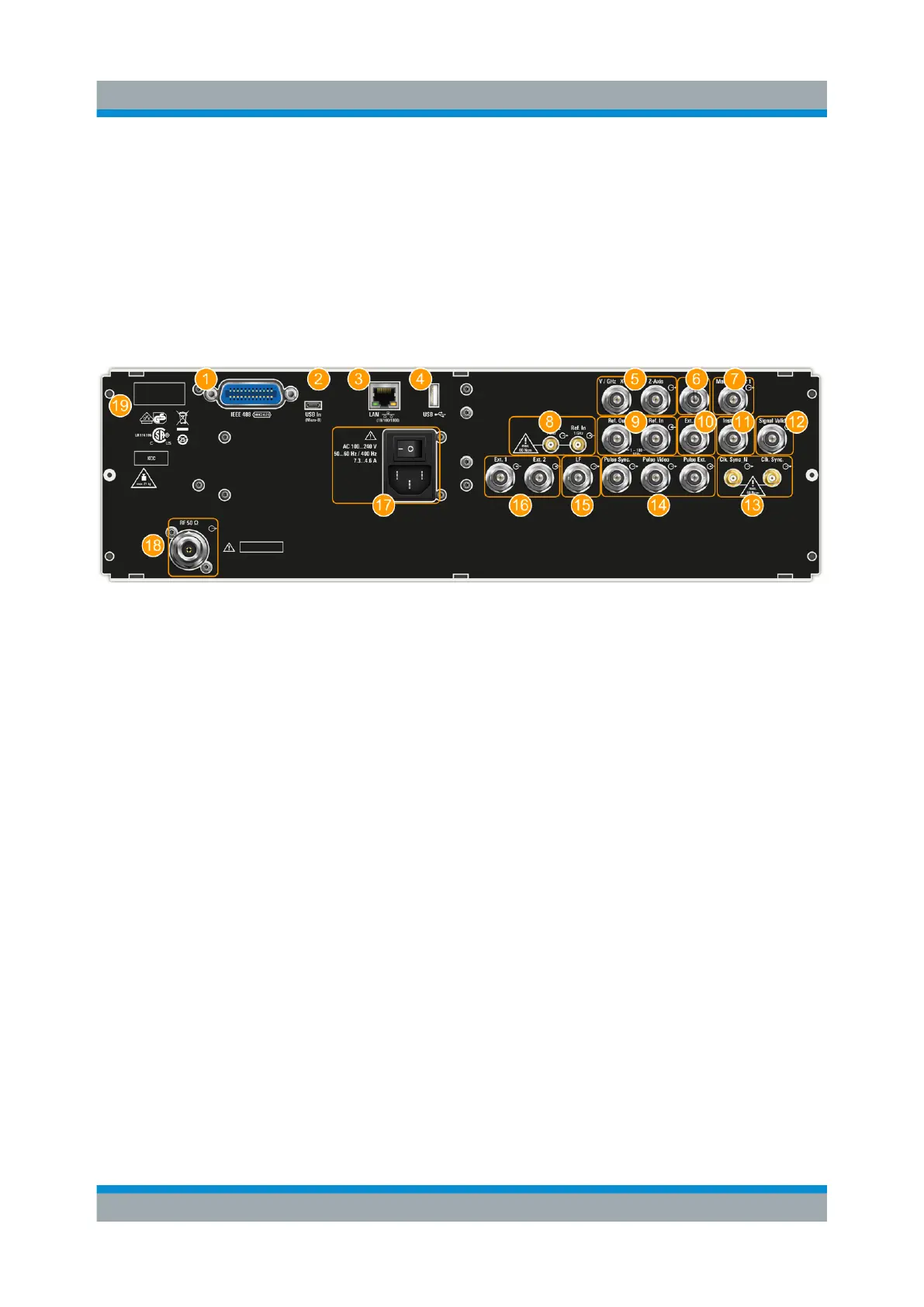

Figure 5-5: Rear panel view of the R&S SMA100B RF Signal Generator with height unit
3HU (option R&S SMAB-B93)
1 = IEC 625/IEEE 488 connector
2 = USB In connector (type micro-B)
3 = LAN connector
4 = USB connector (type A)
5 = V/GHz X-Axis and Z-Axis output connectors (BNC)
6 = Stop input and output connector (BNC)
7 = Marker User1 output connector (BNC)
8 = Ref In 1GHz and Ref Out 1GHz connectors (SMA)
9 = Ref In and Ref Out connectors (BNC)
10 = EFC input connector (BNC)
11 = Inst Trig input connector (BNC)
12 = Signal Valid output connector (BNC)
13 = Clk Syn and Clk Syn N output connectors (SMA)
14 = Pulse Sync, Pulse Video and Pulse Ext connectors (BNC)
15 = LF output connector (BNC)
16 = Ext 1/2 input connectors (BNC)
17 = AC power supply connection and main power switch
18 = RF output connector
19 = Serial number (six digits in the string 1419.8888.02-<serial number>-<checksum>)
