5 Instrument Tour
The following topics help you to get familiar with the instrument and perform the
first steps:
●
Chapter 5.1, "Front Panel Tour", on page 23
●
Chapter 5.2, "Rear Panel Tour", on page 32
This section explains the control elements and the connectors of the
R&S SMA100B with the aid of the front and rear views. For specifications of the
interfaces, refer to the data sheet.
5.1 Front Panel Tour
This section provides an overview of the control elements at the front panel of the
R&S SMA100B. Most of the connectors are at the rear panel and are described in
Chapter 5.2, "Rear Panel Tour", on page 32.

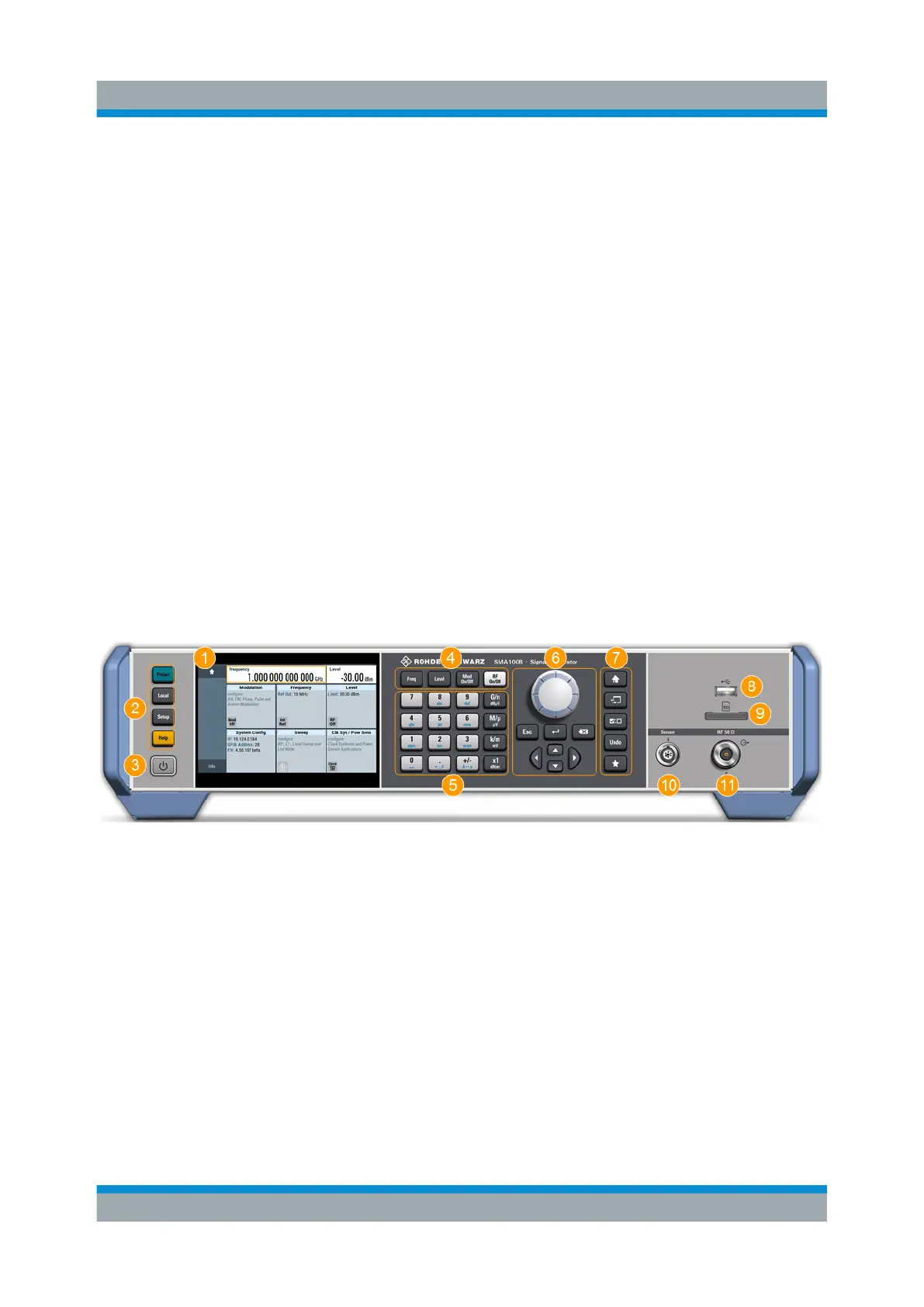

Figure 5-1: Front panel view of the R&S SMA100B RF Signal Generator with height unit
2HU (option R&S SMAB-B92)
1 = Touchscreen
2 = Utility keys
3 = [On/Standby]
4 = Function keys
5 = Keypad
6 = Navigation controls
7 = Display keys
8 = USB connector
9 = SD card slot
10 = Sensor connector
11 = RF output connector
Front Panel Tour
