R&S SMA100B Getting Started

Instrument Tour
R&S
®
SMA100B
32Getting Started 1419.8620.02 ─ 07
5.1.13 LF Modulation Connectors
LF
Output for internal LF generator signal.
See also data sheet and user manual, section "Analog Modulation".
Ext
Input for external analog modulation signals.
5.1.14 Clock Synthesizer Connectors
Clk Syn/Clk Syn N
Connectors for output of the clock synthesizer signal, or the inverted signal.
5.2 Rear Panel Tour
This section provides an overview of the connectors at the rear panel of the
instrument. For technical data of the connectors, refer to the data sheet.

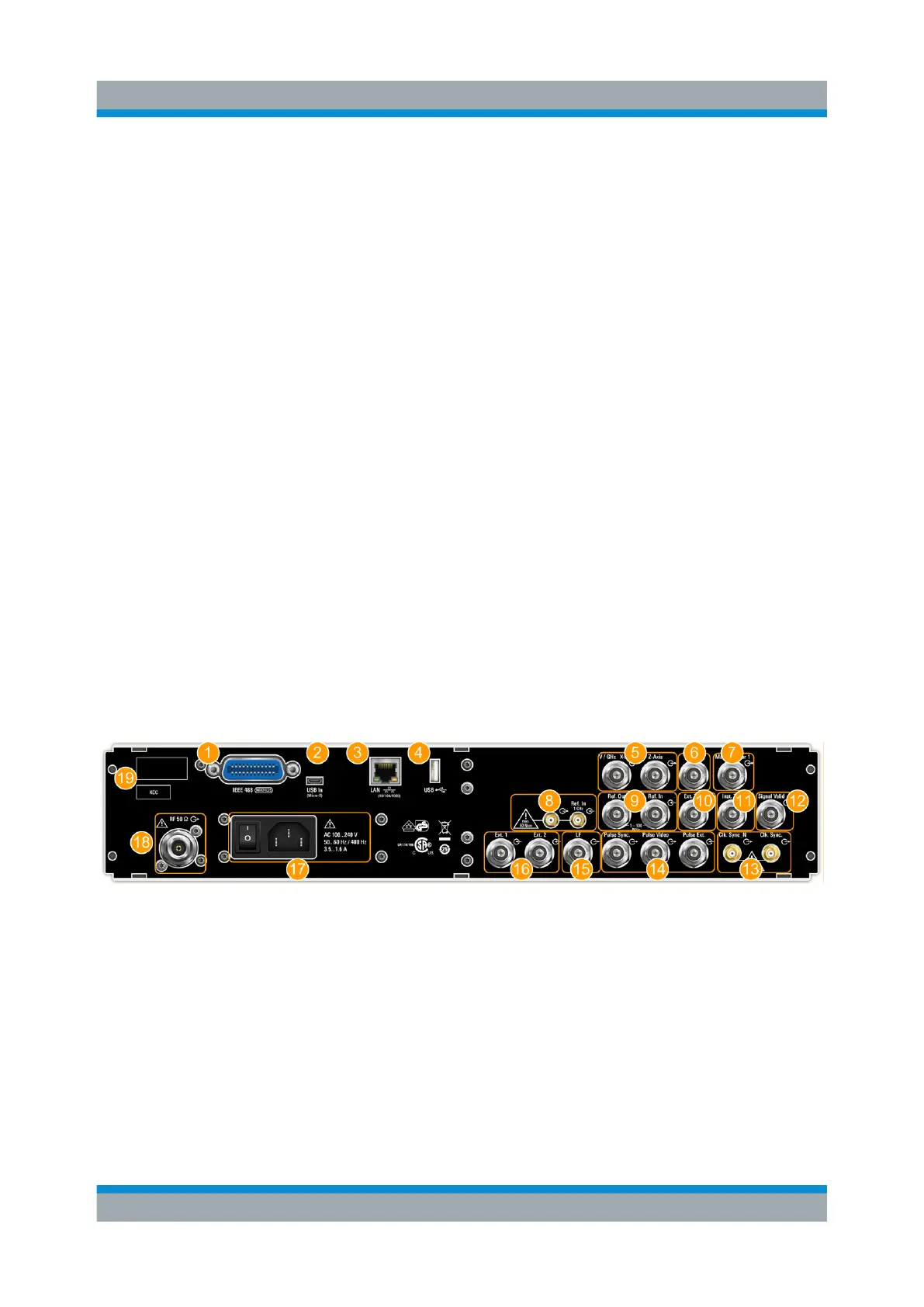

Figure 5-4: Rear panel view of the R&S SMA100B RF Signal Generator with height unit
2HU (option R&S SMAB-B92)
1 = IEC 625/IEEE 488 connector
2 = USB In connector (type micro-B)
3 = LAN connector
4 = USB connector (type A)
5 = V/GHz X-Axis and Z-Axis output connectors (BNC)
6 = Stop input and output connector (BNC)
7 = Marker User1 output connector (BNC)
8 = Ref In 1GHz and Ref Out 1GHz connectors (SMA)
9 = Ref In and Ref Out connectors (BNC)
10 = EFC input connector (BNC)
Rear Panel Tour
