Trying Out the Instrument

R&S

SMA100B

40Getting Started 1419.8620.02 ─ 07

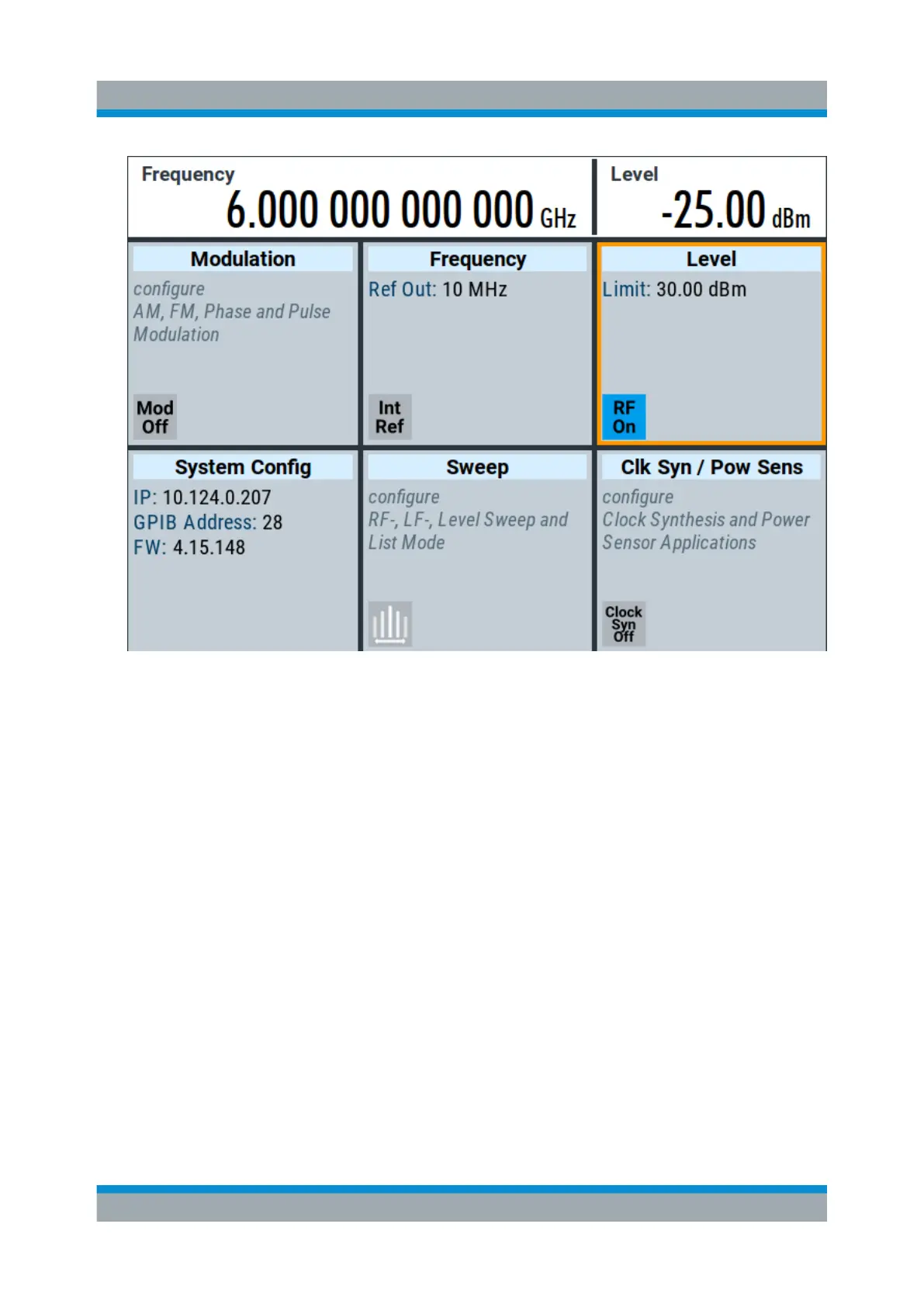

Figure 6-1: Generating an unmodulated signal

Alternative ways to access the instrument functions

To fulfill the same task, you can also use the front panel keys or the setting

parameters provided in the frequency and level dialogs.

Try out the settings dialogs

1. In the "Frequency" tile, select "Frequency...".

a) In the "RF Frequency" tab, tap the "Frequency" field.

b) Set the frequency via the on-screen keypad.

2. Access the "RF Level" dialog via the "Level" tile.

a) In the "RF Level" tab, select "Amplitude".

b) Set the amplitude (level) via the on-screen keypad.

3. Select "RF State > On" to activate the RF signal generation.

Try out the front panel keys

► Use the [Freq], [Level], and [RF on/off] key on the front panel.

Generating an Unmodulated Carrier
