CHAPTER 4
30 Hawkeye® 2 Installation Manual for AGCO RoGator C-Series (RG900, RG1100, RG1300)
BUMPER INSTALLATION FOR C-SERIES MACHINES WITH PROSTOP-E VALVES AND WILGER NOZZLE BODIES
It is necessary to add spacers to the boom bump stops to help prevent nozzle bodies from colliding with each
other upon folding, causing damage to the nozzle bodies. To install bump stop spacers:
1. Locate the boom stops shown in Figure 10, “Boom Stop,” and remove the existing hardware. Keep the existing
washers and nuts.

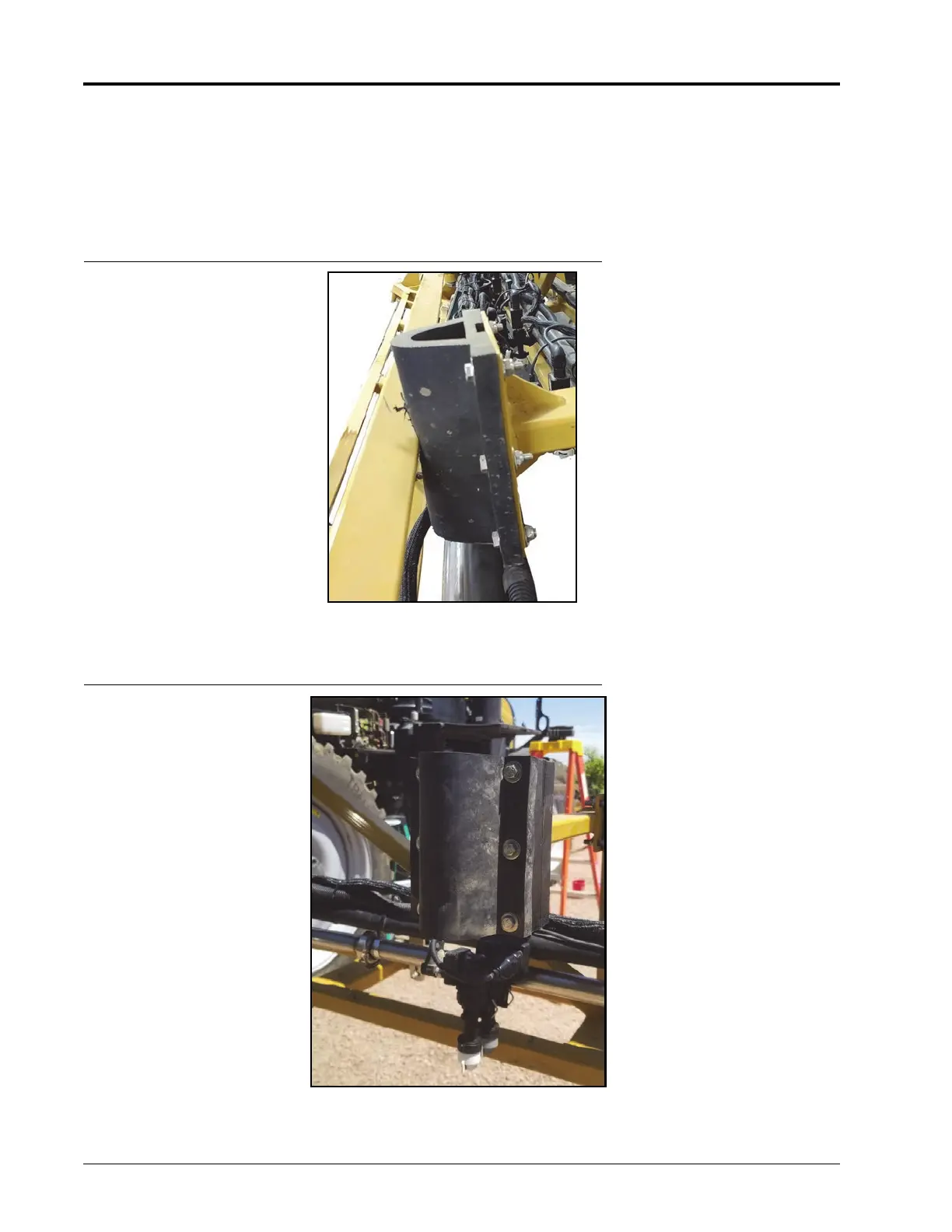

FIGURE 10. Boom Stop
2. Place two boom stop spacers (P/N 107-0172-609) behind the boom stop.
FIGURE 11. Installed Boom Spacers
3. Use the longer bolt provided in the kit (P/N 311-0070-014) and the original nuts and washers to secure the
boom stop and spacers.
