Chapter3
Install the DirecSteer Assembly
Prepare the DirecSteer Assembly

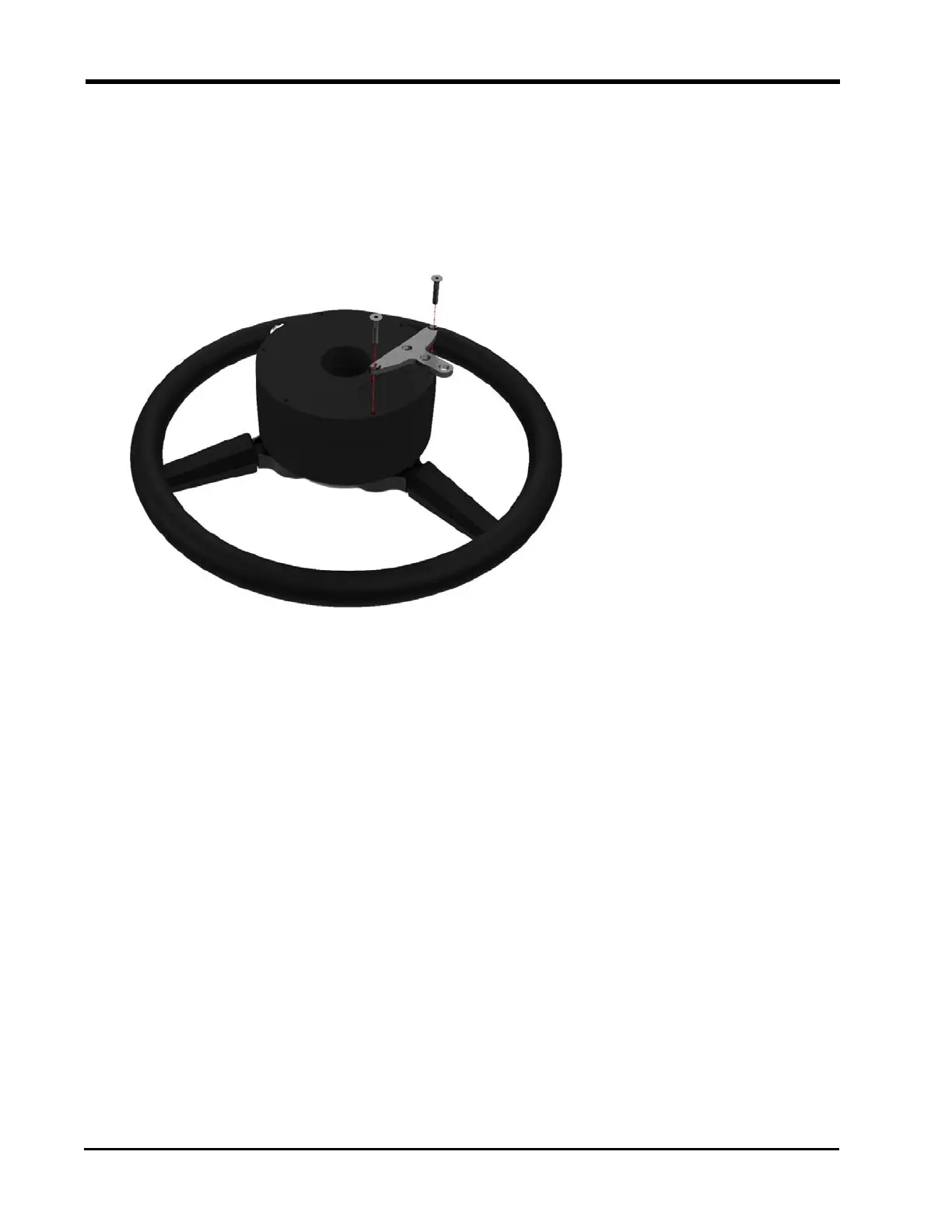

1. Use two M5x16 bolts (P/N 311-4070-091) to secure the anti-rotation pin bracket (P/N
107-4050-104) to the bottom of the DirecSteer assembly (P/N 063-4001-040).
Note: The anti-rotation pin bracket may be secured using any two of the mounting
threaded holes on the bottom of the DirecSteer casing. Determine the preferred wire
harness position and orientation for the DirecSteer casing to select the position of the
anti-rotation pin bracket.
When mounted, the anti-rotation pin bracket will be positioned facing the driver seat
above the self-adjusting bearing and bracket.
