Chapter5

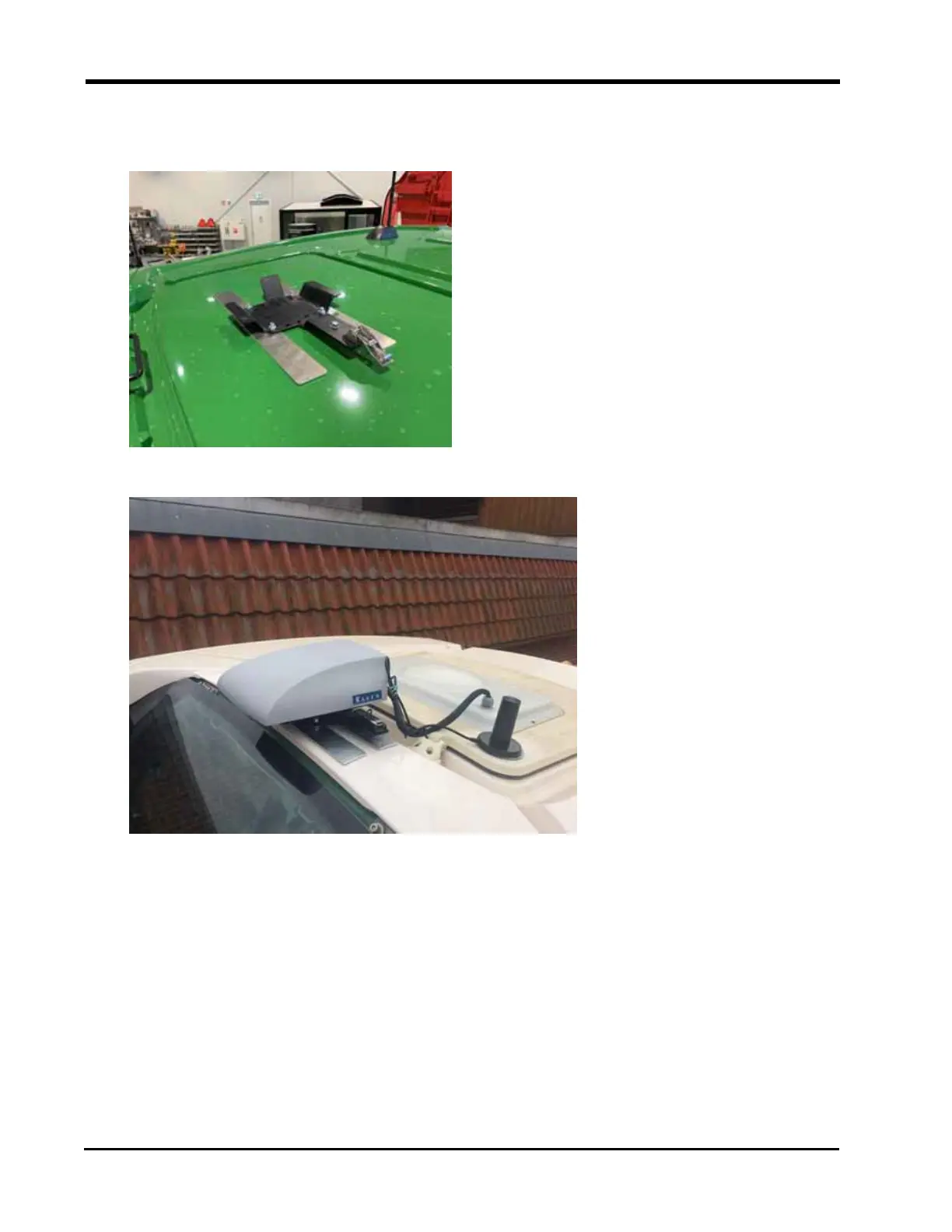

3. Use the two adhesive strips to secure the bottom bracket assembly to the roof of the
tractor. Attach the RS1™ brackets so that the RS1™
4. Secure the RS1™, already connected to the latch plate, onto the fixed plate.
5. Mount the round adhesive plate for the Laird cellular antenna (P/N 121-000-042)
within 50 cm [20 in.] from the RS1™ bracket.
Note: The LAIRD antenna is the main cellular antenna for the RS1™.
Connect RS1™ Cabling to DirecSteer
When installing an auto-steer system, the power cables should always be connected to the
battery after all cables have been routed and connected. Two options are available:
