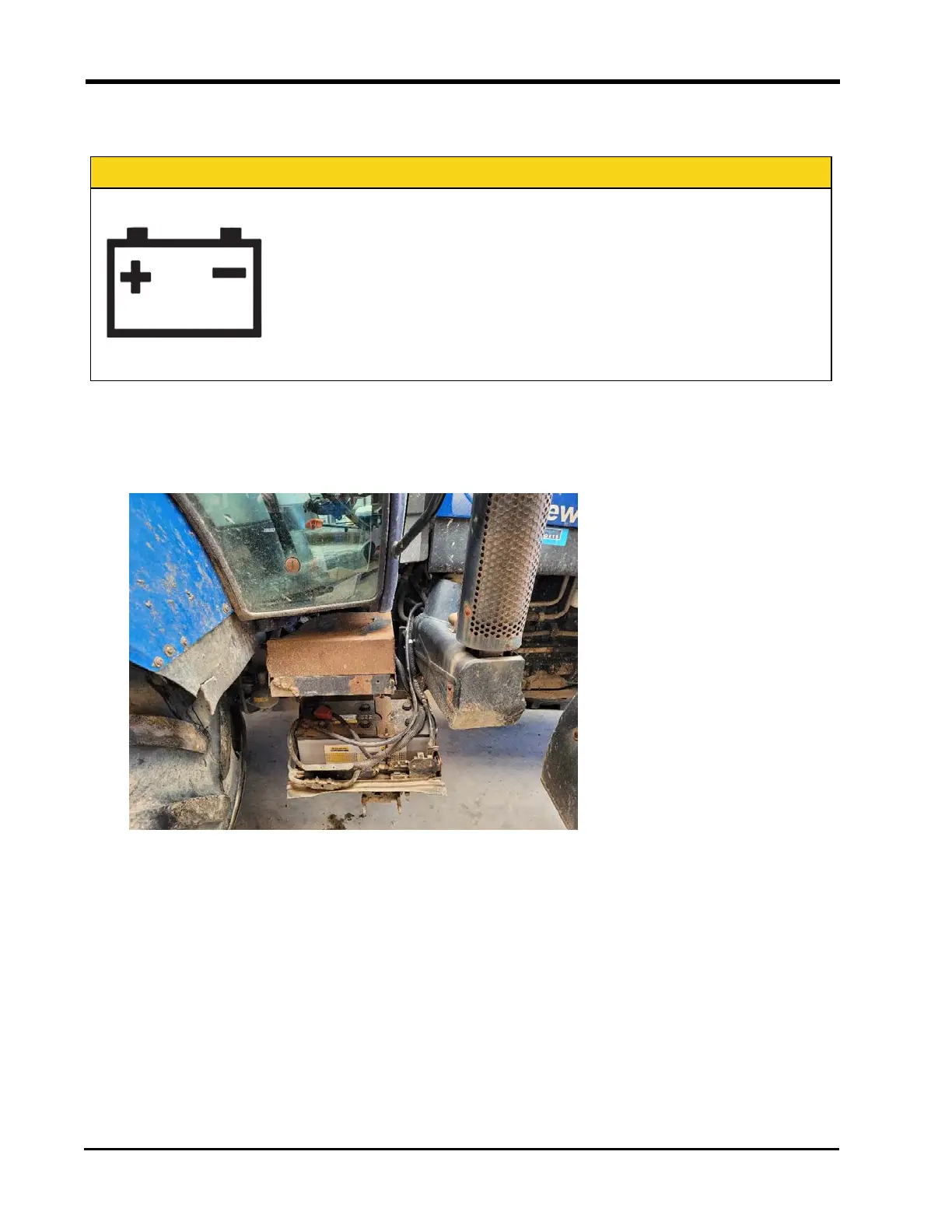

Chapter5
Connect to Power
CAUTION
Do not connect the system power cable to the vehicle ignition or
battery until all system components are mounted and all elec-
trical connections are completed.
1. Locate the battery terminal rings on the DirecSteer power cable (P/N 115-8000-473)
and power harness (P/N 115-8000-060/315 or 115-8000-141).
2. Locate and open the battery compartment.
Note: Generally, the battery compartment is located on the right side of the tractor, in
front of the rear tire and below or beside the tractor cab.
3. Route the black and red ring terminals from the power cable and power harness into
the battery compartment.
48
