Chapter6
Install the Antenna
Install the 500S™ Receiver

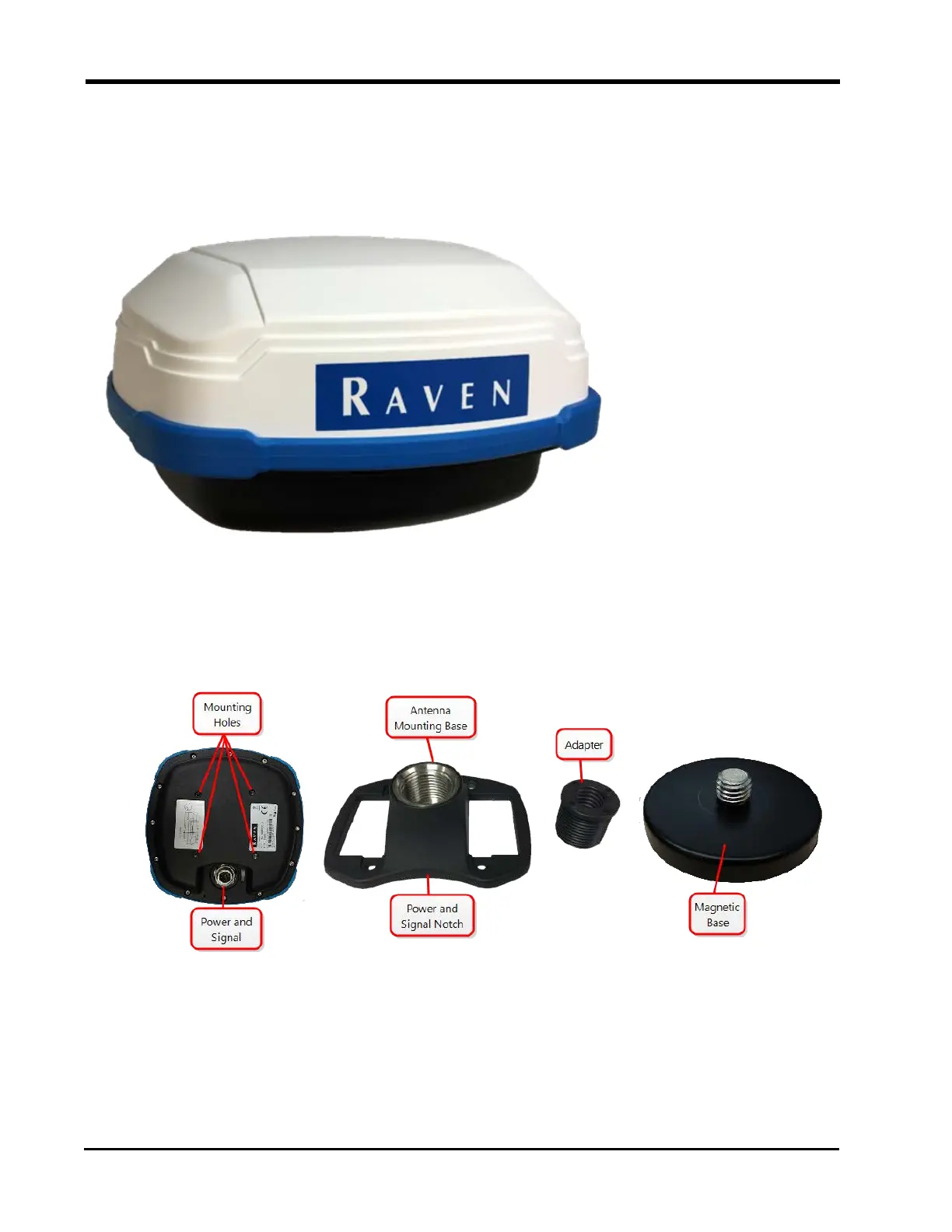

500S™ only allows for the following installation options. To install the antenna:
1. Use the provided screws to secure the antenna mounting base to the antenna. Verify
the power and signal notch on the antenna mounting base faces towards the power
and signal connection on the bottom of the antenna.
2. Install the adapter in the threaded hole of the antenna mounting base.
3. If needed, secure the magnet mounting base to the roof cap.
4. Thread the adapter pole over the existing survey pole or to the magnet mounting base.
58
