CHAPTER 3
10 Raven RS1™ Guidance and Steering Calibration & Operation Manual

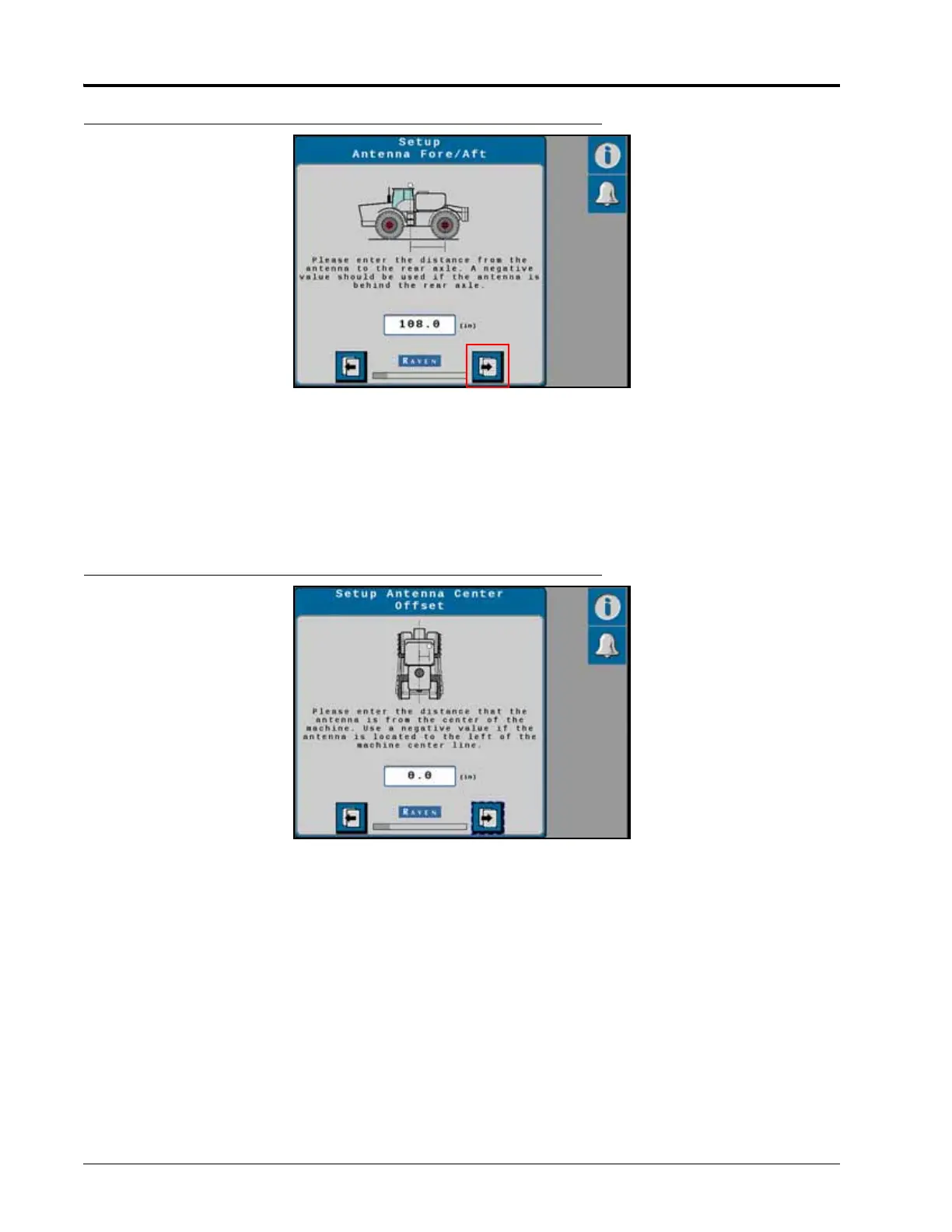

FIGURE 6. Antenna Fore/Aft Screen
3. Select the value box to enter the Antenna Fore/Aft position.
NOTE: The Antenna Fore/Aft position is calculated by measuring from the rear axle of the machine to the
middle of the RS1 unit. A negative value should be entered if the RS1 unit is located behind the rear
axle.
4. Select the Next arrow.
FIGURE 7. Antenna Center Offset Screen
5. Select the value box to enter the Antenna Center Offset position.
NOTE: The Antenna Center Offset position is calculated by measuring from the center of the machine to the
center of the RS1 unit. A negative value should be entered if the RS1 unit is located to the left of the
machine’s center line.
6. Select the Next arrow.
