CALIBRATION

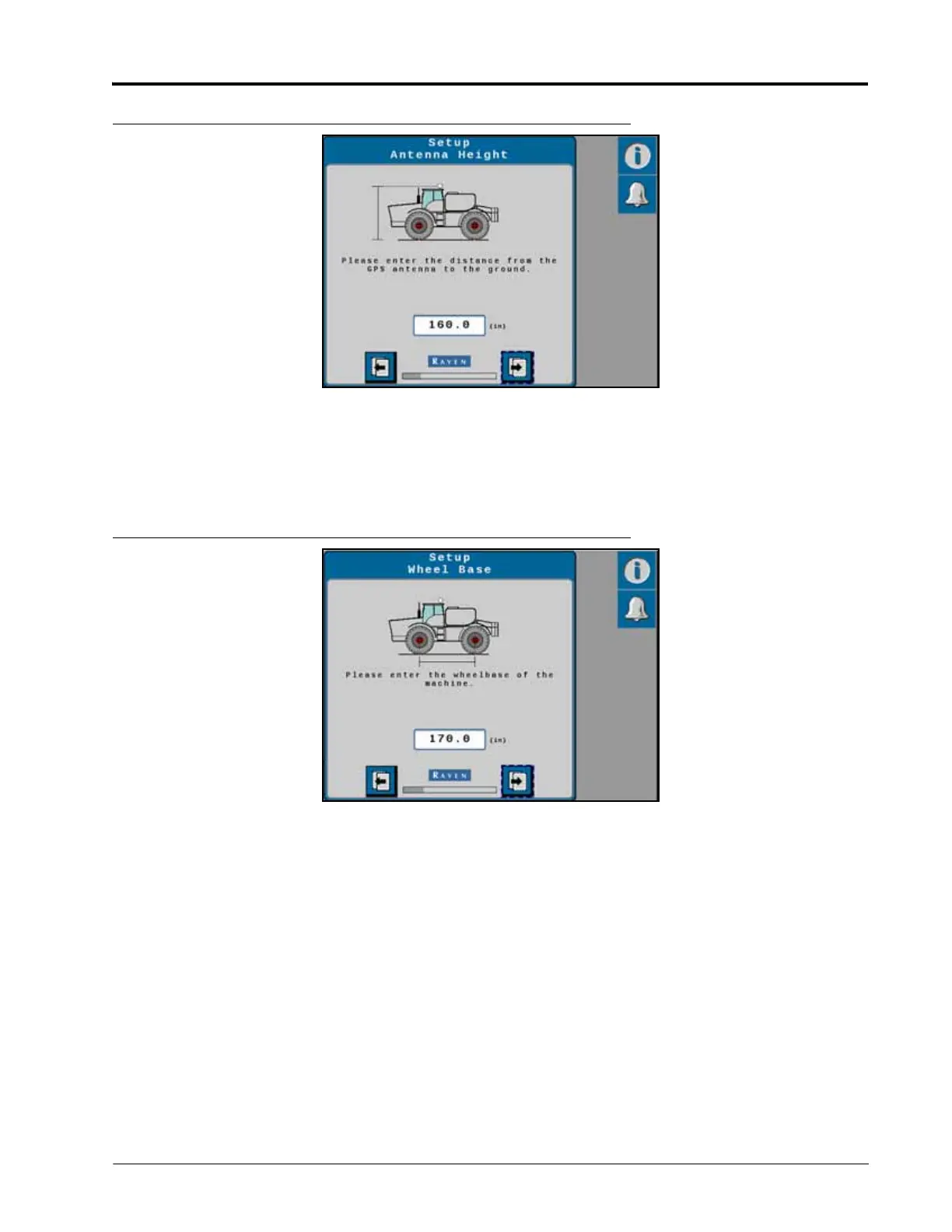

FIGURE 8. Antenna Height Screen
7. Select the value box to enter the Antenna Height.
NOTE: The Antenna Height is calculated by measuring from the ground to the center of the RS1 unit.
8. Select the Next arrow.
FIGURE 9. Wheel Base Screen
9. Select the value box to enter the Wheel Base.
NOTE: The Wheel Base is calculated by measuring from the center of the front tire to the center of the rear
tire on both sides of the machine. Add these measurements together and then divide by 2 to get the
average Wheel Base value.
10. Select the Next arrow.
