Install the DirecSteer System

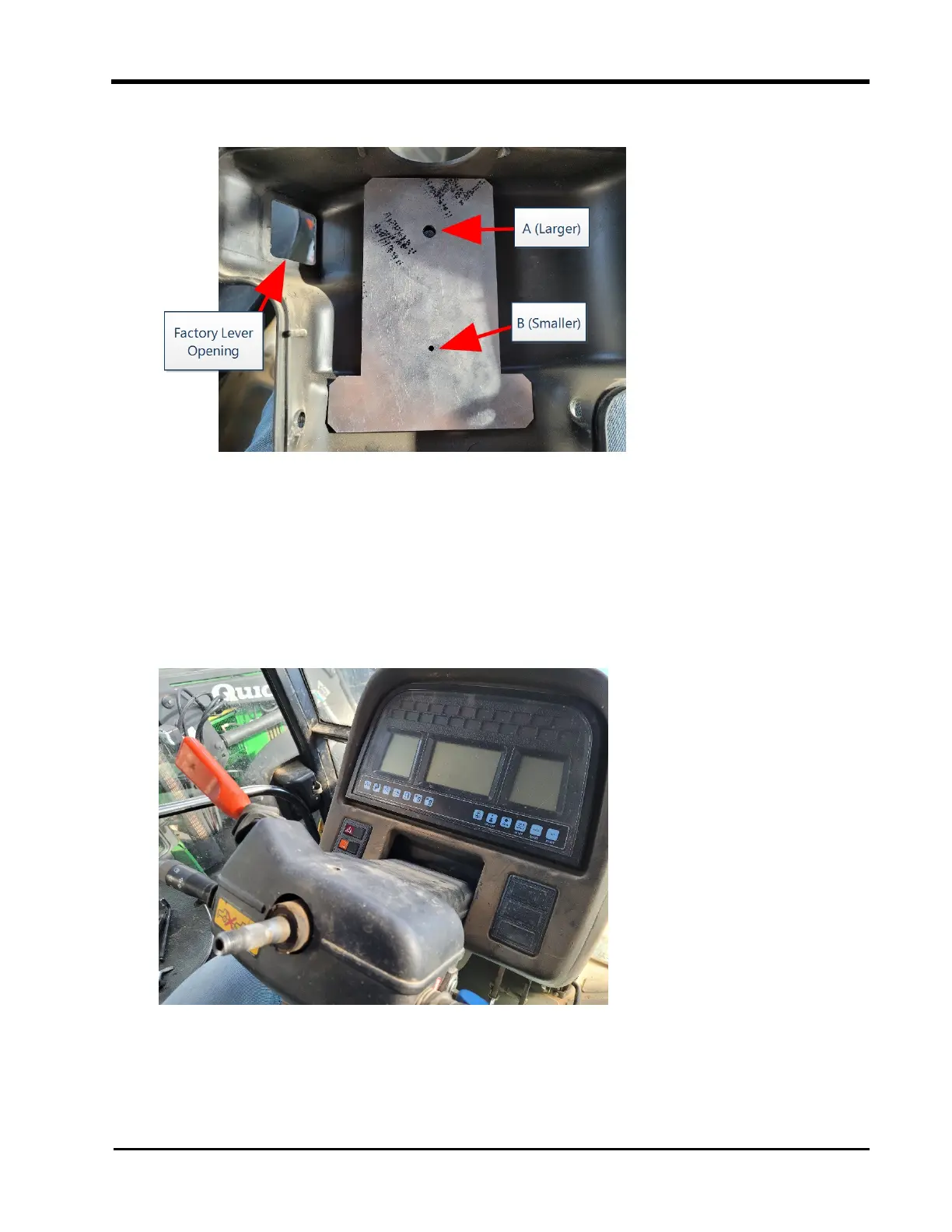

4. Position the provided template (P/N 107-4050-149) inside the cover as shown below.
Note: Line hole A (larger) with the existing hole in the cover.
5. Use the template to mark hole B (smaller) on the cover.
6. Use a step-bit to drill a 25 mm hole in the trim piece at the marked location.
Note: Ensure the 19mm spacer (P/N 107-4050-145) fits through hole B drilled in the
cover.
7. Install the cover and secure with only the two screws on either side.
