Chapter3

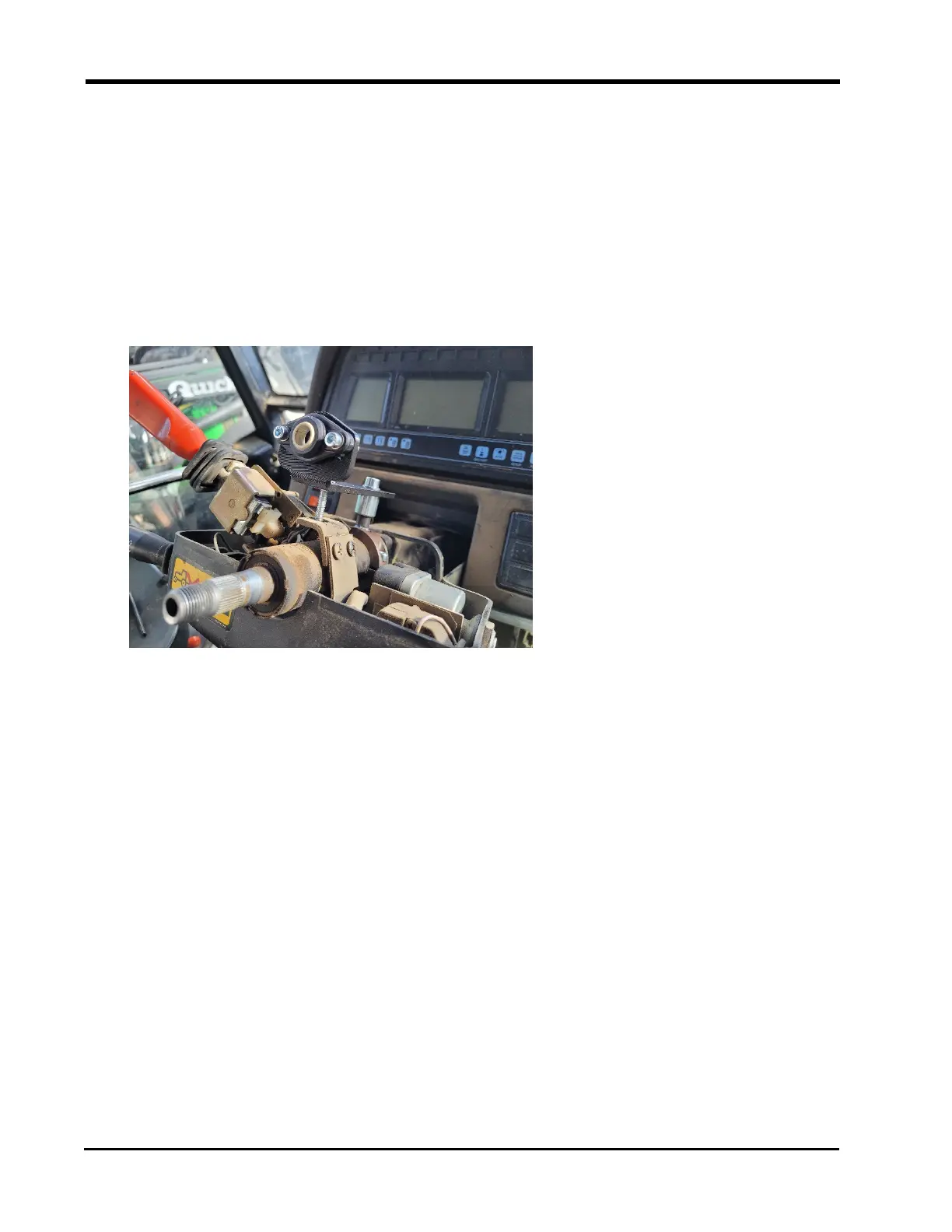

8. Install the spacer in the hole closest to the steering wheel:
For Farmall U and T50x0 Series Tractors
Use the supplied 17.5mm spacer (P/N 107-4050-148) and a 6mm x 35mm bolt.
For MXM, TM, TL, and TS Series Tractors
Use the supplied 13mm spacer (P/N 107-4050-147) and a 6mm x 35mm bolt.
9. Install the 19mm spacer (P/N 107-4050-145) to the clamp mounted on the steering
column.
10. Align the bracket (P/N 107-4050-150) on the cover and secure using the M8x35 (P/N
311-4035-057) and the M6x35 bolt (P/N 311-4035-032).
24
