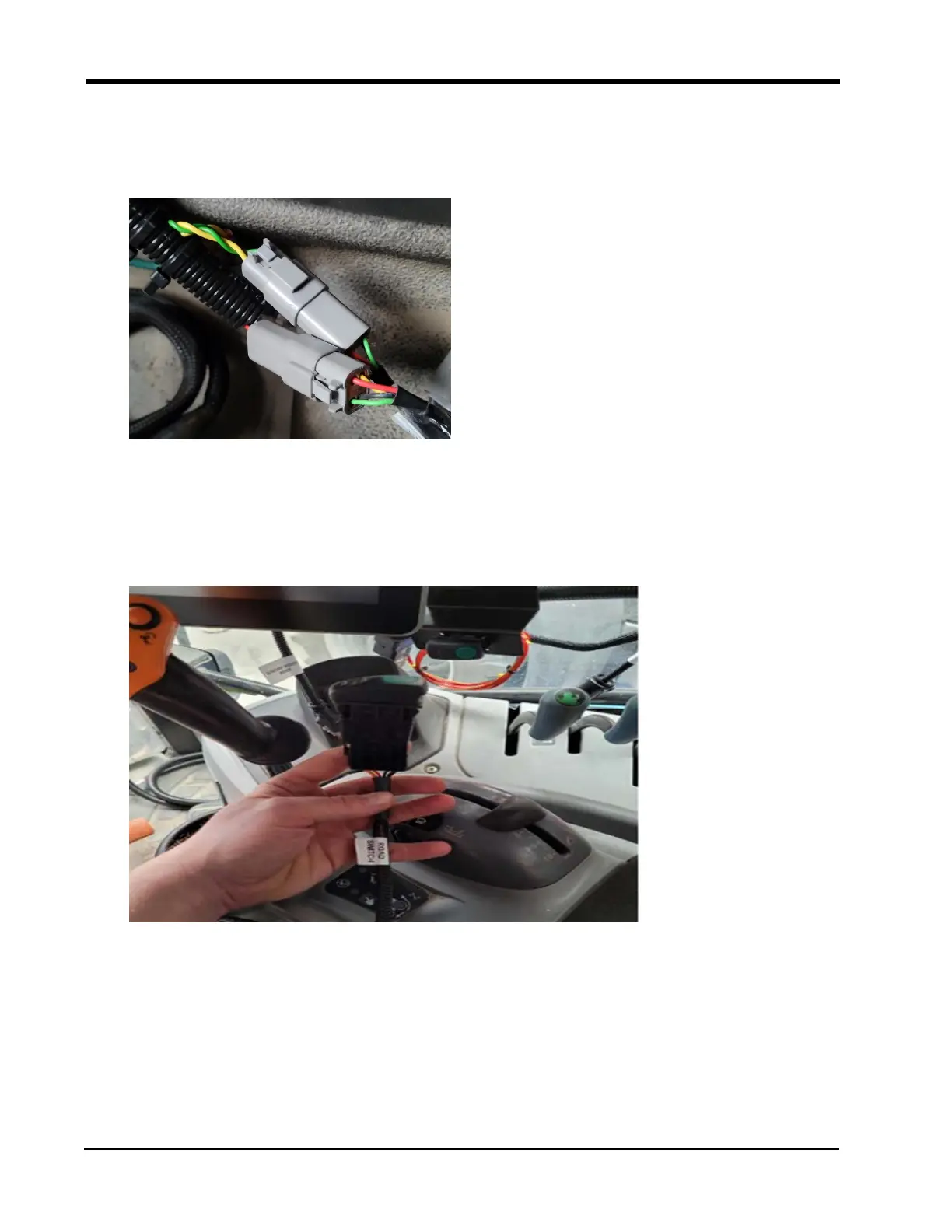

6. Connect the two 4-pin Deutsch connector from the DirecSteer main cable (P/N 115-

8000-474) to the mating CAN2 connectors on the SC1™ in-cab harness (P/N 115-

8000-475).

7. Locate an open or free console cavity for the road switch and remove the blank.

8. Route the road switch connector from the DirecSteer main cable (P/N 115-8000-474)

through the open cavity and connect it to the road switch.

Note: Use the provided adapter for the switch if needed.
