Raven SCS 460 Installation & Service Manual

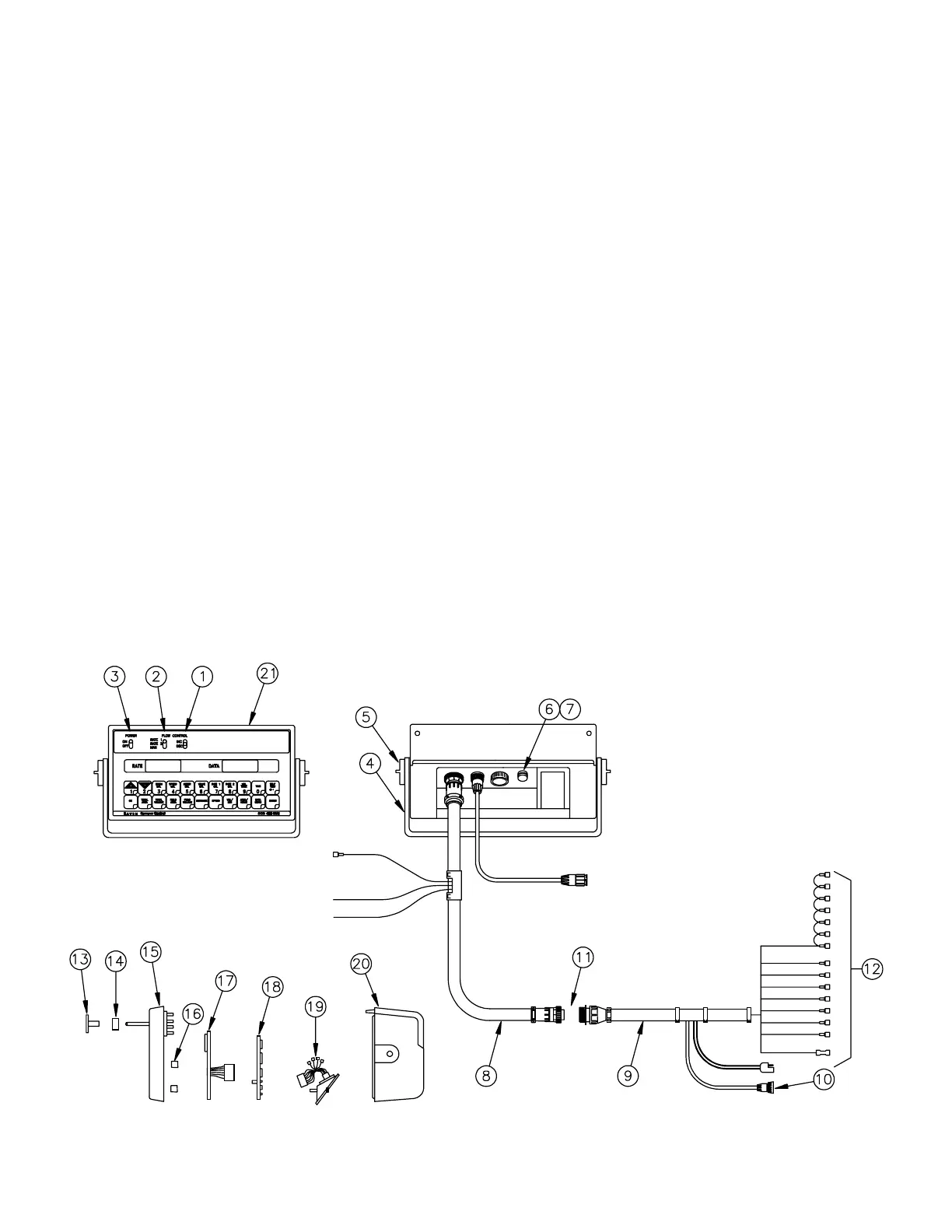

SCS 460 REPLACEMENT PARTS
ITEM DESCRIPTION RAVEN PART #
1 Manual Adj. Switch 412-2011-049
2 Rate1/Rate2/Manual Switch 019-0159-078
3 Power Switch 412-2011-048
4 Mounting Bracket 106-0159-437
5 Mounting Knob 106-0159-438
6 Fuse Holder 510-2001-018
7 Fuse, 15 Amp. 510-1003-003
8 Console Control Cable (10 ft.) 115-0159-492
Console Control Cable (3 ft.) 115-0159-707
9 Flow Control Cable (6 ft.) 115-0159-495
Flow Control Cable (12 ft.) 115-0159-496
Flow Control Cable (24 ft.) 115-0159-708
10 Flow Meter Cable Ext. (6 ft.) 115-0159-016
Flow Meter Cable Ext. (12 ft.) 115-0159-017
11 Flow Ext. Cable (12 ft.) 115-0159-493
Flow Ext. Cable (24 ft.) 115-0159-494
12 Assorted Terminal Kit 117-0159-402
13 Switch Cover 106-0159-433
14 1-Set Filler Spacers 117-0159-421
15 Face Plate Assembly 063-0159-946
16 Display Board Spacer 107-0159-478
17 LCD Display Board 064-0159-428
18 Processor Board 064-0159-570
Processor Board (Serial Interface) 064-0159-572
19 Connector Plate Assembly 063-0159-948
Connector Plate Assembly (Serial Interface) 063-0171-255
20 Back Assembly 063-0159-530
21 SCS 460 Console 063-0159-938
SCS 460 Console (Serial Interface) 063-0171-249
