Chapter 4
22 SCS 4000/5000 Series™ Installation & Operation Manual
Mount the SCS Console
Note:
If the CAN Switch Box will be installed with the console, use the mounting hardware provided with
the CAN Switch Box. Refer to the CAN Switch Box Installation and Operation Guide for mounting
instructions.
1. Select a mounting post or monitor bar within the vehicle cabin to secure the SCS console.
2. If necessary, remove the four bolts holding the mounting plate to the back of the console and rotate the
plate 90° to mount the SCS console to a vertical post or monitor bar.

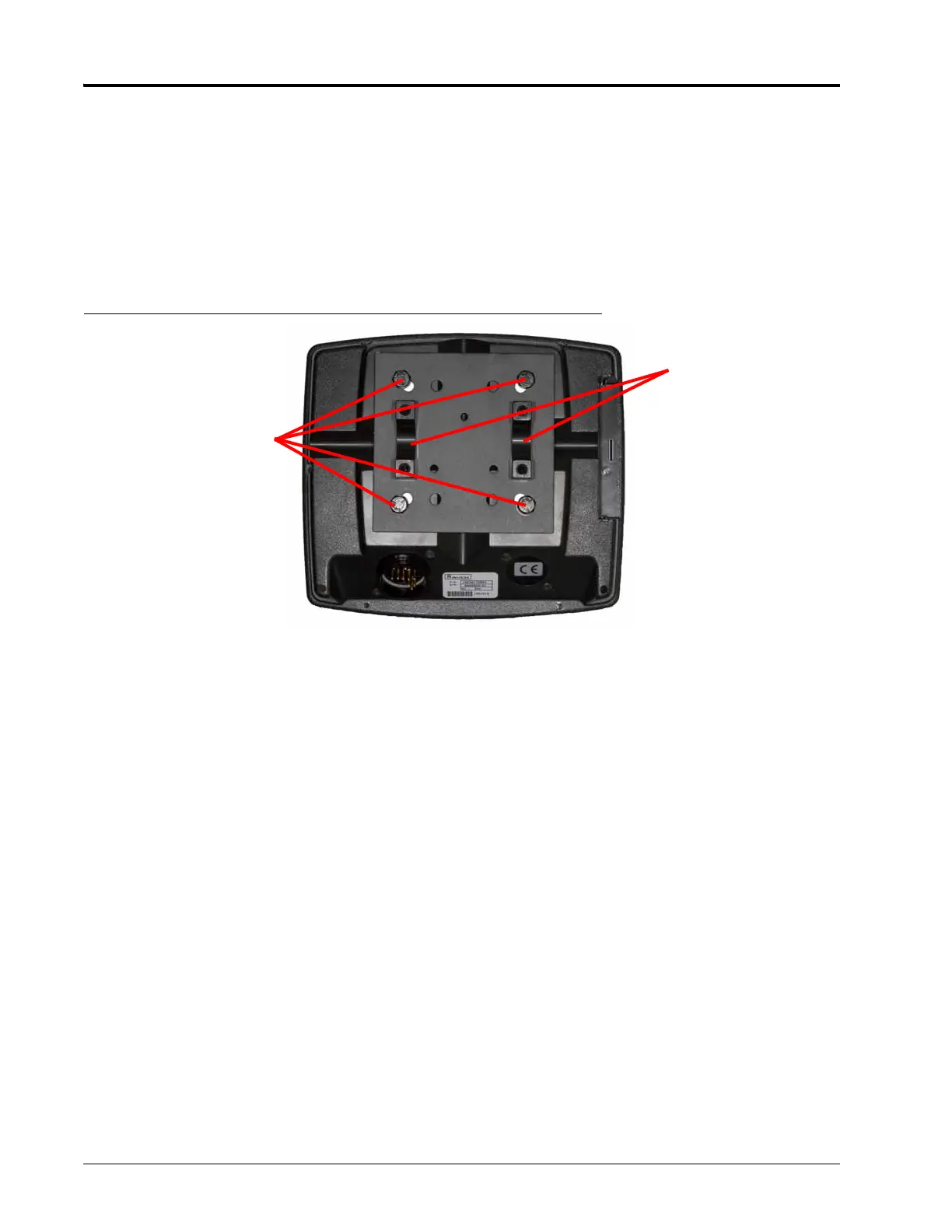

FIGURE 1. Standard Mounting Plate Configuration
Note: The mounting clamps are designed to secure the console to a 1” dia. [2.54 cm] monitor bar or post.
3. Use the provided clamp and thumb screws to secure the console to the selected mounting bar.
Cable and Power Connections
1. Connect the console cable to the large, round plug on the back of the SCS console.
2. Route the console cable out of the vehicle cabin and connect to the CANbus or product cabling on the
sprayer or spreader. Refer to one of the following figures for a diagram of the console cable connections.
• Figure 2, “SCS 4000/4070/5000 Series Console Connections,” on page 23
• Figure 3, “SCS 4400 Console Connections,” on page 24
• Figure 4, “SCS 4600 Console Connections,” on page 25
• Figure 5, “Chassis Cable Platform Example (SCS 4000/4070/5000 Consoles Only),” on page 26
Note: Flow meter and speed sensor extension cables are available from a local Raven dealer.
3. Use the supplied cable ties to secure the console cable to prevent the cable from pinching or breaking and
to prevent tripping hazards.
Mounting
Clamps
Plate
Bolts
To Next Page
