Raven SCS 5000 User Manual

CHAPTER
13
Manual No. 016-0159-925 Rev. F 79
C hapter 13 Ratio Rate Feature
In Ratio Rate mode, the SCS console offers the ability to control up to four products in ratio to the first. The
Ratio Rate feature is enabled through the console submenu within the Data Menu.
When the Ratio Rate mode is enabled, product 1 will control to a user defined volume/area when in Automatic
(AUTO) mode, or display the Rate as volume/minute when in Manual (MAN) mode. Products 2 through 5 will
be controlled in ratio to product 1.
When in Ratio Rate mode, pressing RATE CAL will display the RATIO RATE CAL and will be entered as
follows:
• Product 1 gal/acre [liter/hectare] (if applicable)
• Products 2-5 oz/gal [dl/liter]
The ratio rate feature can also be utilized to operate a handgun (see Figure 1 on page 79).

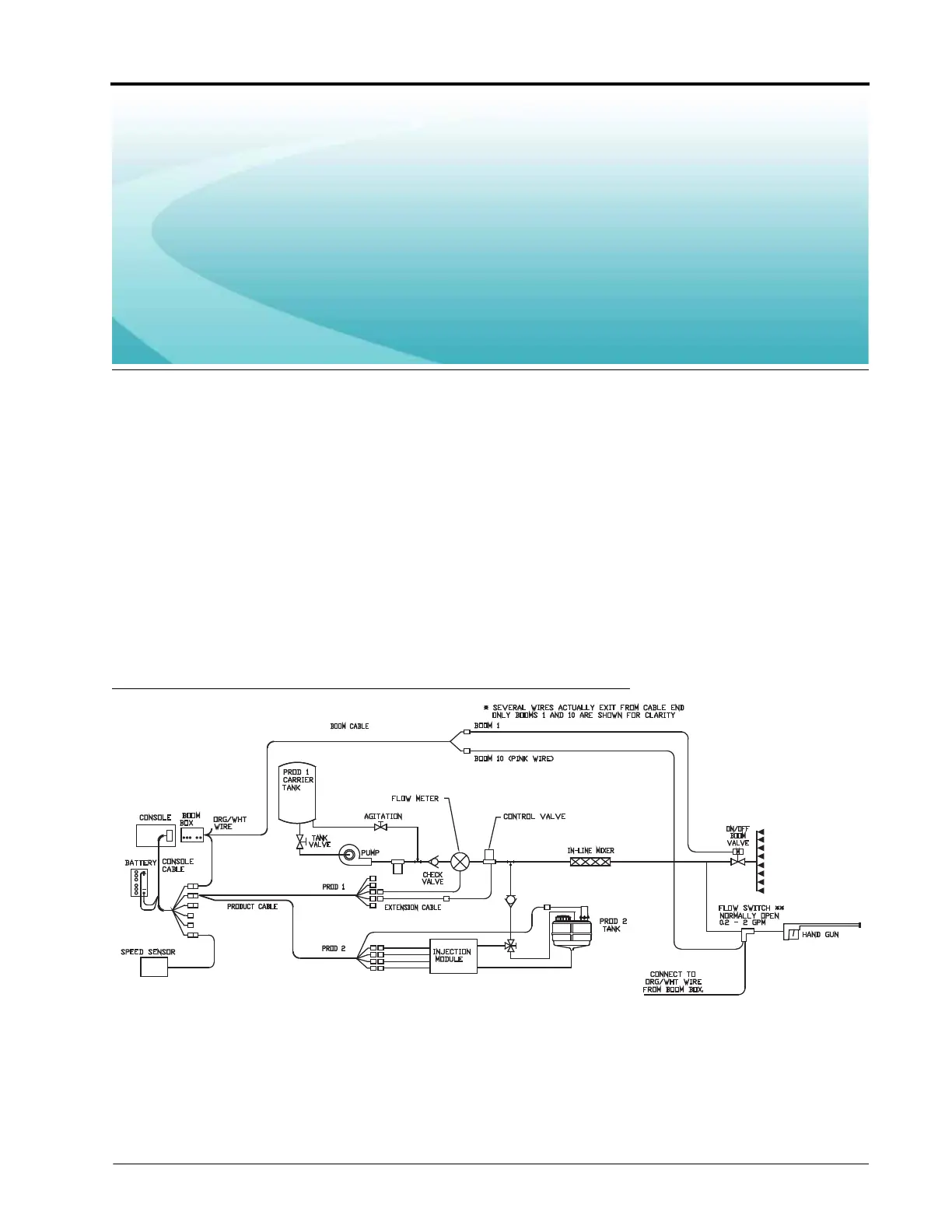

FIGURE 1. Handgun Installation
Note that for handgun operation, a flow switch must be plumbed in-line as shown above. Connect one lead of
the flow switch to the boom box orange/white wire. Connect the other flow switch lead to an unused boom wire.
The associated boom must have a non-zero value programmed into the boom cal.
