14
3 Installation
3.1 Dimensions

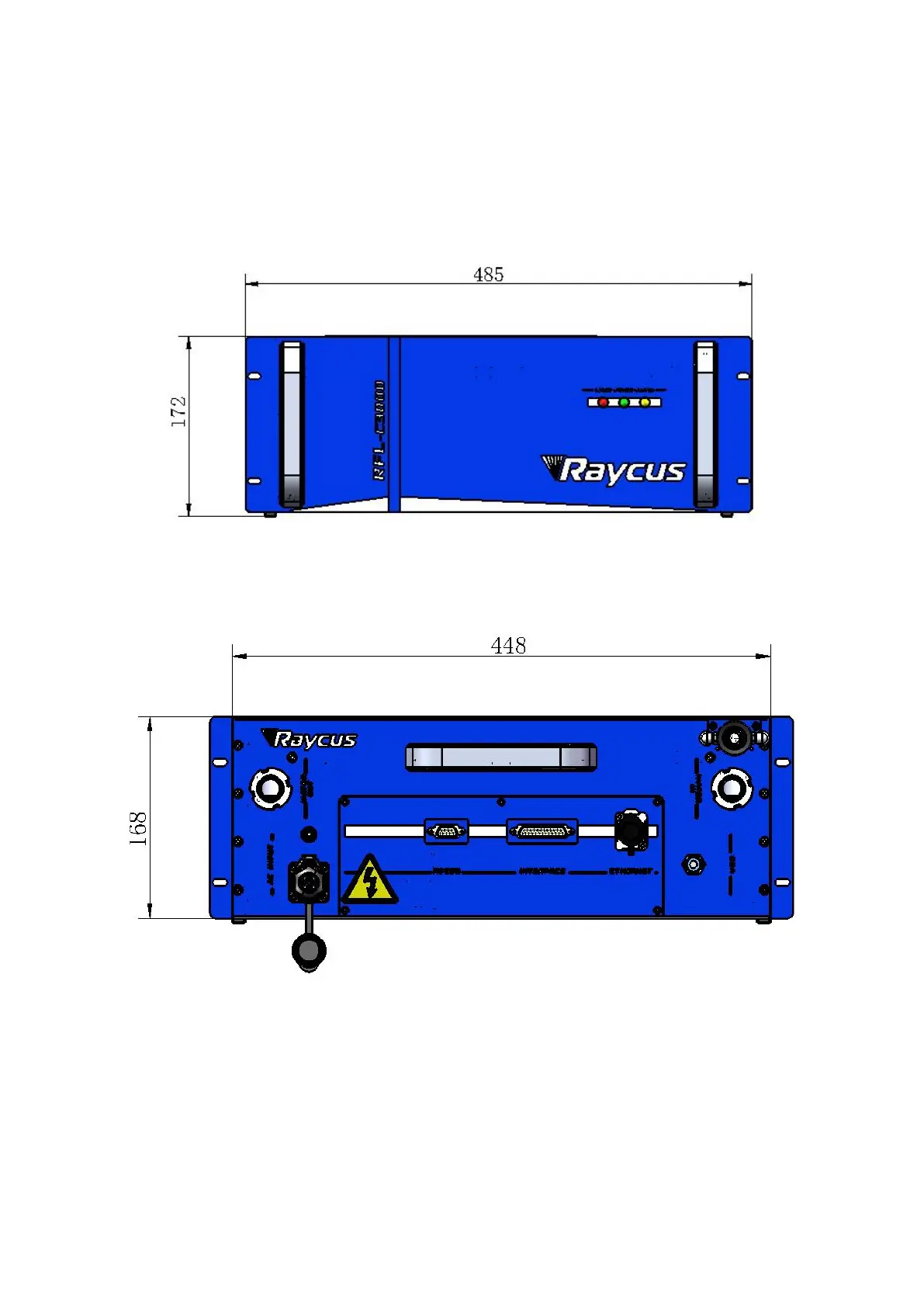

Figure 2 shows dimensions of RFL-C3000S-CE.
Figure 2 (a) Front panel view of RFL-C3000S-CE(unit: mm)
Figure2 (b) Rear panel view of RFL-C3000S-CE (unit: mm)
