User Guide of RFL- RFL-C3000S-CE
35
Figure 18Slave control module status information interface
4.8 Control Modes
The laser selects AD mode, external control, internal modulation mode and external
modulation mode through the upper machine interface.
4.8.1 Control mode wiring diagram
4.8.2.1 Internal control mode

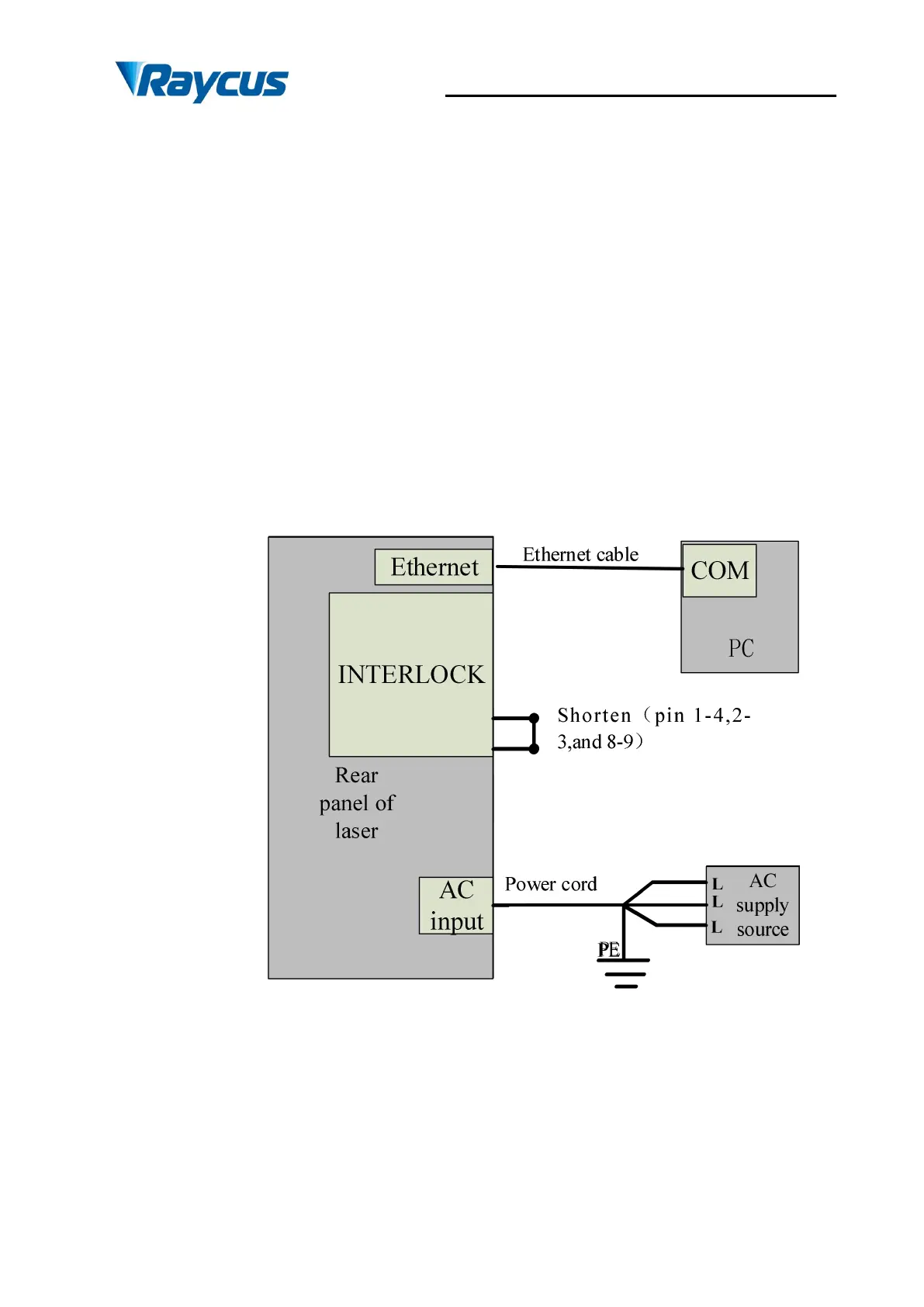

Figure19 Internal control wiring diagram mode
Operation method:
a) Short connection of 8, 9 pin on the 24 -pin of 24 stitches (power on the control board);
b) Open the air, the panel "POWER" indicator lights;
c) Open the upper machine software and close all the external mode (turn off the red light
external control, external envelopes, external AD and external modulation);
d) Click the red light button to view the red light;
