Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C3000S-CE
15

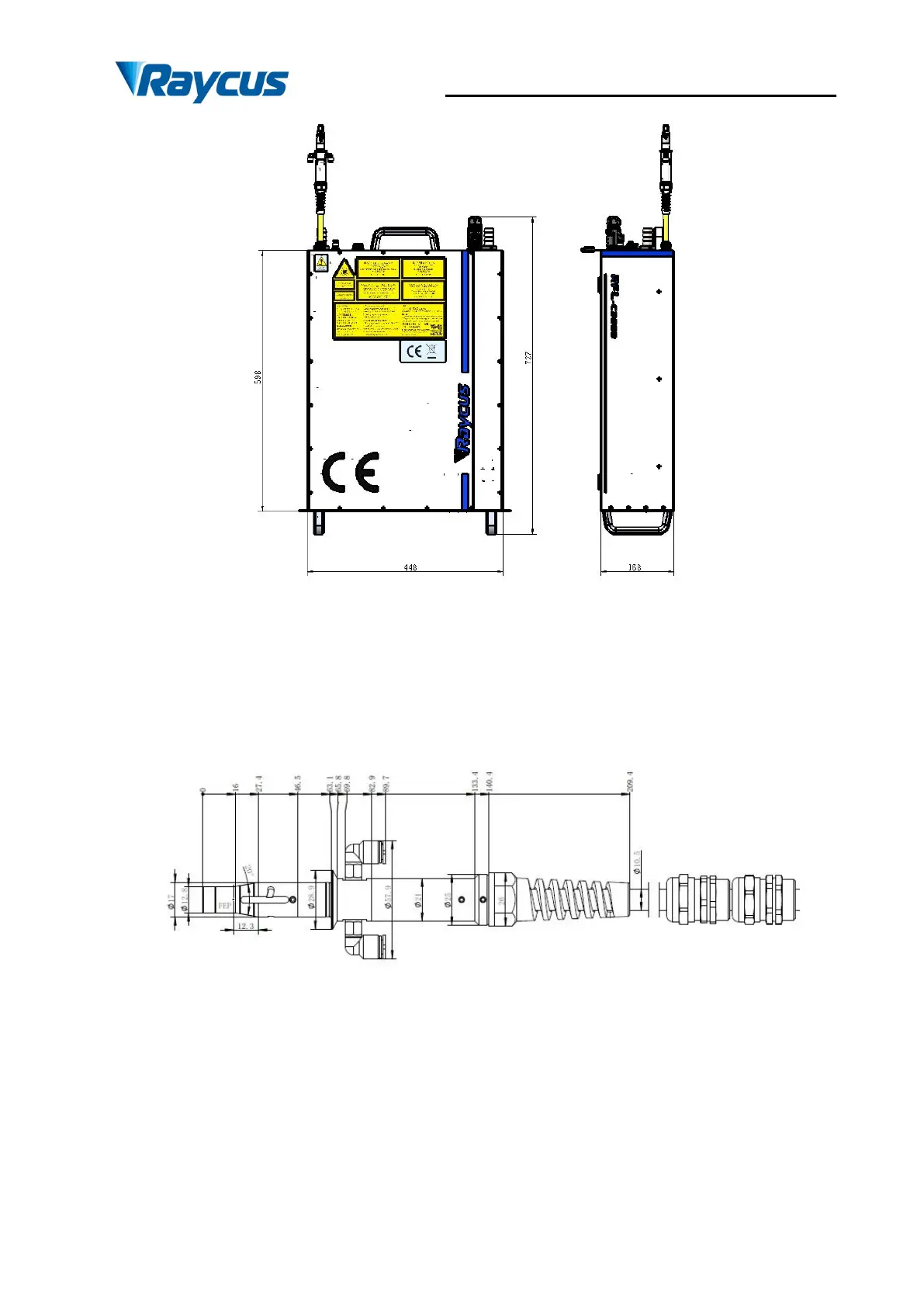

Figure2 (c) Top and Side view of RFL-C3000S-CE (unit: mm)
3.2 Output Head and Installation
Figure 3B Dimensions of iQB Output Head
The QBH and iQB laser outputheadof RFL-C3000S-CE are all thestandard IQB
interface.The specific appearance and dimensions are shown in Figure 3 above.
