Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C6000S-CE
21
a) AC INPUT: The socket for supply source input that can only be mated with the plug on
the power cord we provided (See Table 4 product technical parameters for laser model
and corresponding input voltage). Please use only the enclosed power cord provided by
Raycus.
b) CTRL-INTERFACE: Control interface, CTRL-INTERFACE interface (DB-25),
multi-function multiplex interface, users can set control mode, input analog voltage
signal, modulate 24V signal, and it is also an alarm signal output interface.
c) RS232：Provide remote control and fault information storage of the laser.
d) WATER: Pipe connectors, the inlet and outlet for cooling water to flow in and return.
(See Table 5 for the laser model and corresponding water pipe size for cooling system
requirements)
e) ETHERNET: Ethernet interface. It can provide remote control and storage alarm
information for the laser.
f) CDA
：
Dry air inlet.
4.3 Power Connection
CAUTION: Before connecting the product to AC supply source, you must
check for sure that the AC supply you will apply is in accordance with the
specifications provided in Table 2 or 4.

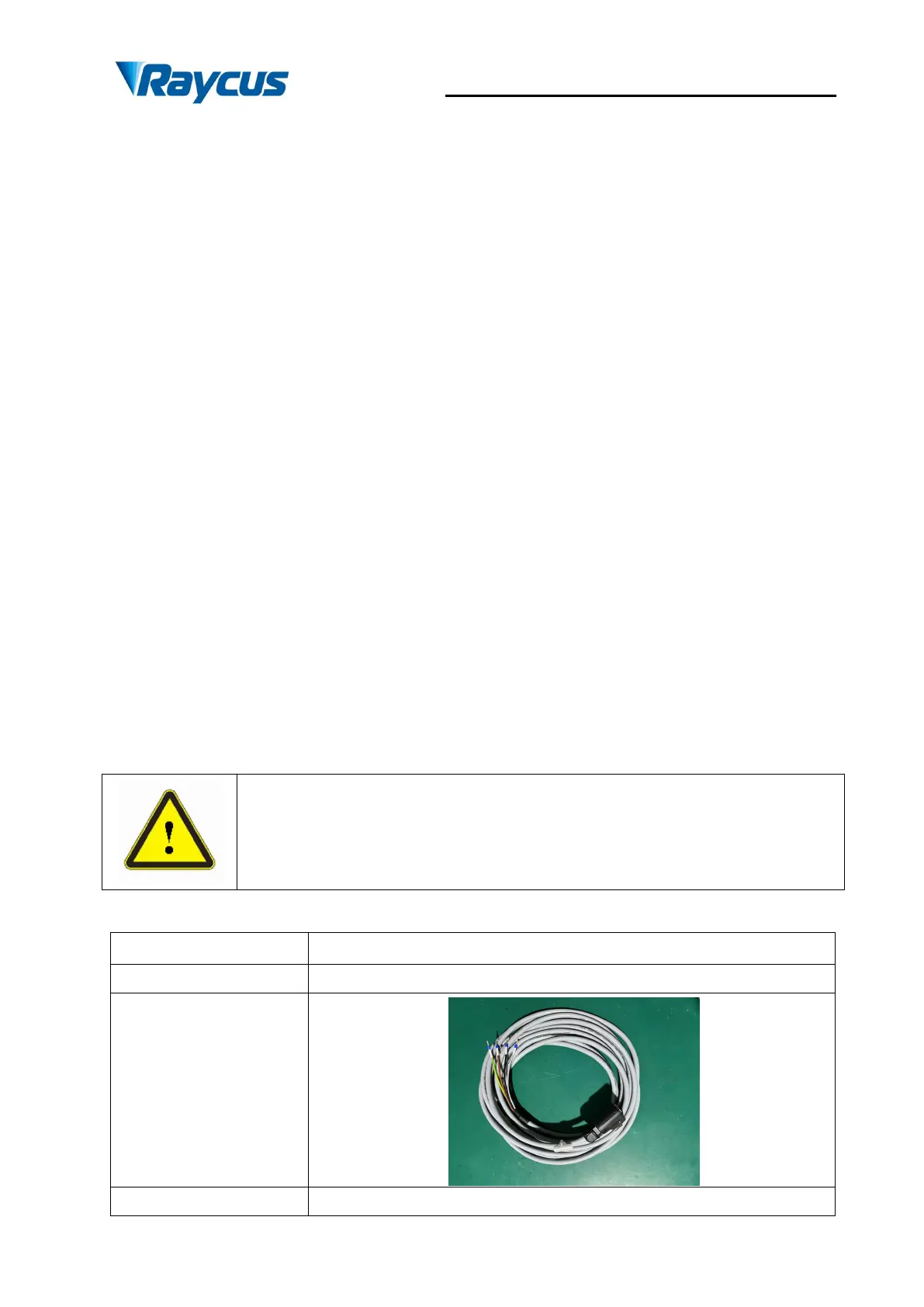

Table 6 Power Connection Requirements
5 wires, the diameter of single wire is 4mm
2
,
