Raycus RFL-C6000S-CE User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C6000S-CE
15
3.2 Output Head and Installation
The laser output head of RFL-C6000S-CE is the standard QBH interface. The specific
appearance and dimensions are shown in Figure 3 above. Compared with other models, the size
of the protective end cap of the fiber delivery cable of this model is lengthened.

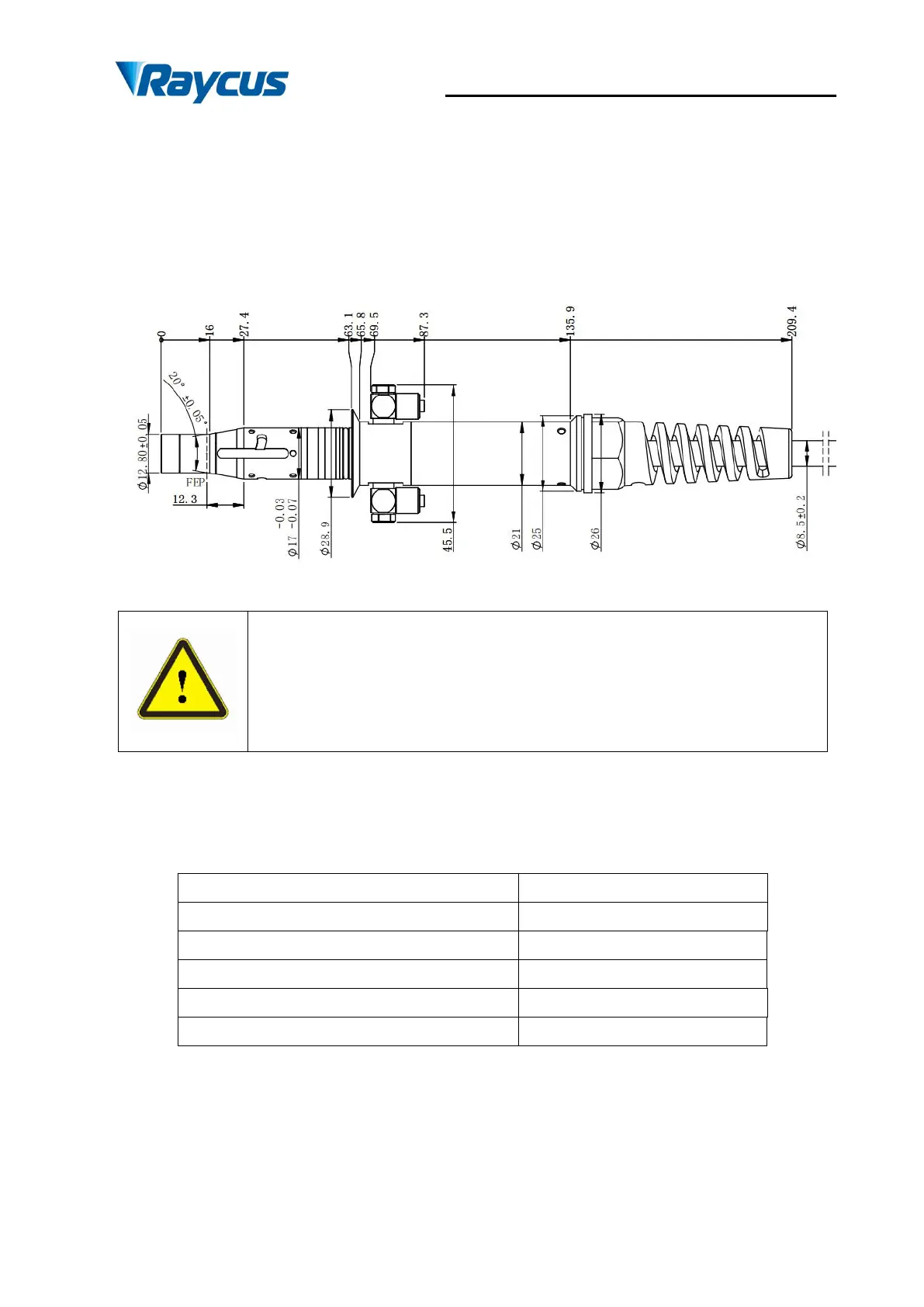

Figure 3 Dimensions of the QBH fiber delivery cable (unit:mm)
CAUTIONS:
 Inspect the output lens before installing the output head to the
processing head. Clean the output lens if necessary.
 It is strictly prohibited to disassemble the output head by personnel not
approved by Raycus, or the warranty is void.
3.3 Cooling Requirements
Table 5 Cooling Requirements
Model
RFL-C6000S-CE
Cooling Capability(W)
>15000
Minimum Flow(L/min)
60
Maximum Pressure(Bar)
7
Pipe Inner Diameter(mm)
25
Water temperature of cooling system(℃)
22±1℃
a) The water temperature setting of cooling system:
22±1℃
b) Cooling system filter access requirements:
