Raycus RFL-C6000X User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3300W~RFL-C15000W
21

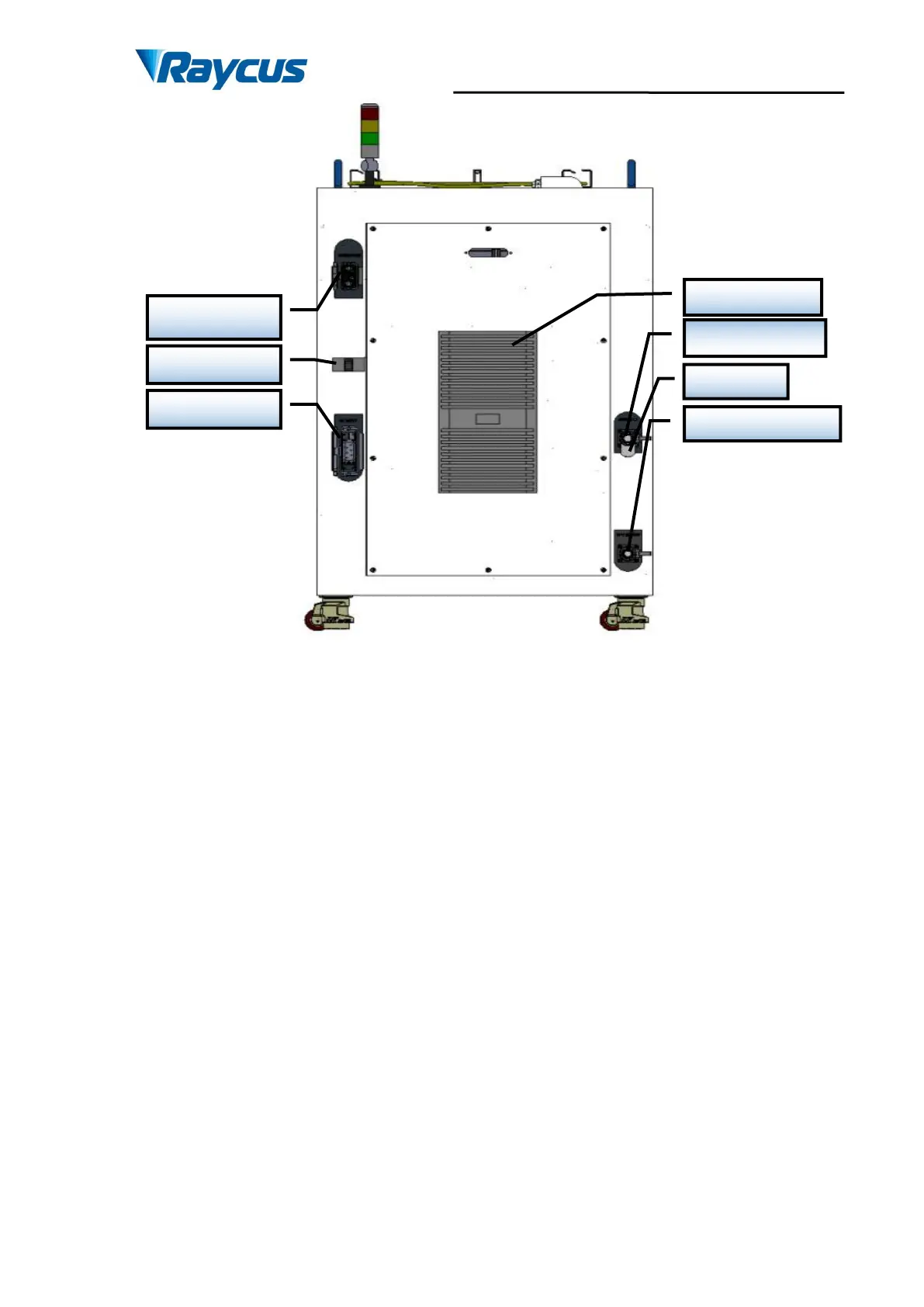

Picture 9-d Rear view of C15kW product panel.
Figure 9 The picture of laser rear panel.
AC INPUT: The socket for supply input that can be only mated with the plug on
the power cord we provided.The socket is provided with a protective cover and a
lock catch. Please use the protective cover and lock catch when not use the laser
device.
INTERFACE: Control interface. This interface provides all control signals,
including RS232 communication, laser switch control, laser remote control mode
selection, analog control, modulation signal, Interlock interface. Please reference
table 4 forspecific definition of control line. The socket is provided with a
protective cover and a lock catch. Please use the protective cover and lock catch
when not use the laser device.
WATER: The pagoda typepipe connector. The intake and outlet are used for
inflow and reflux cooling water.
Interface
Breaker
AC input
Dehumidifier
Water input
Filter
Water output
