4.7.1 Cable Connection of Serial Port Communication Mode

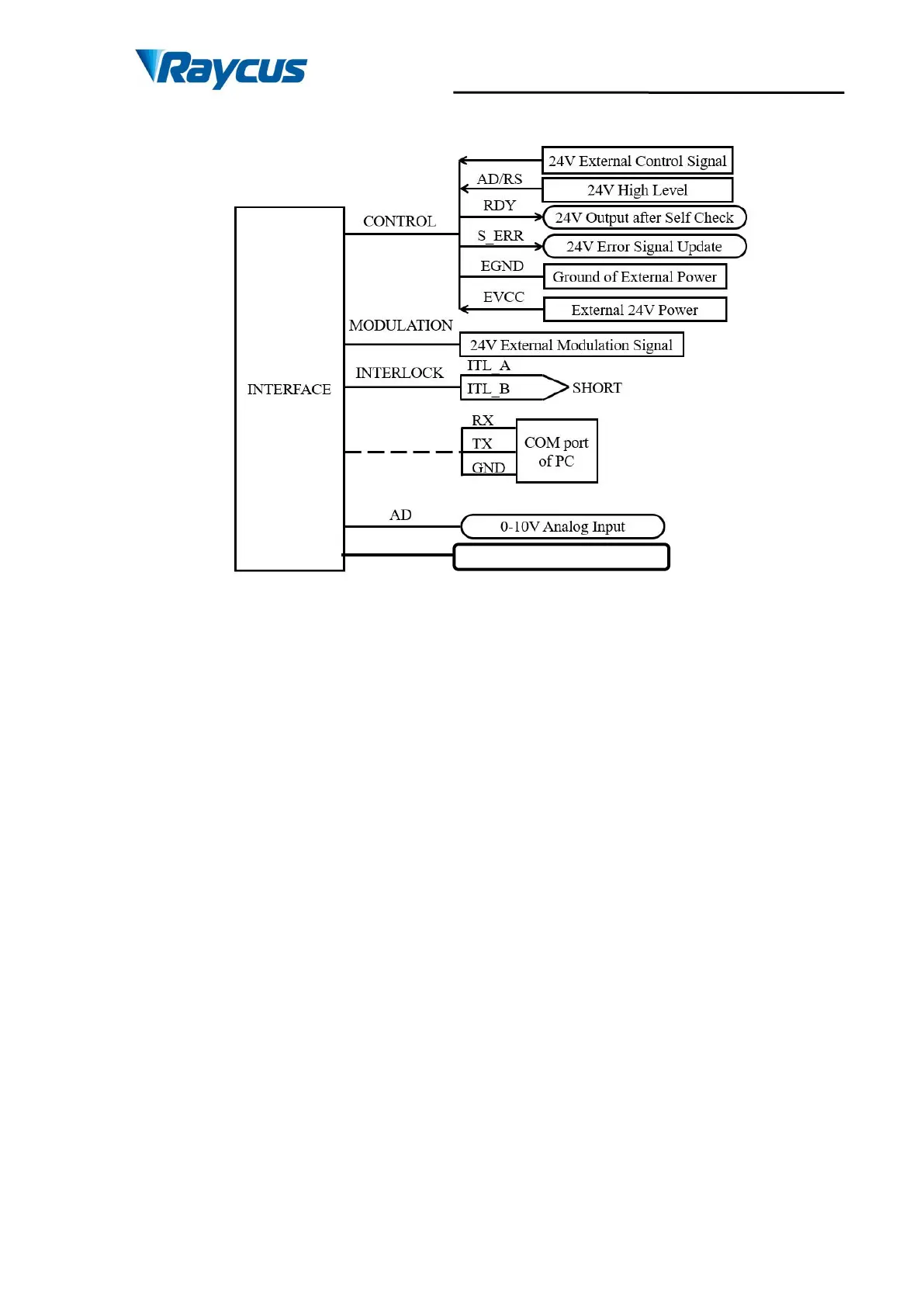

Figure 15 Wiring of Serial Port Communication Mode
4.7.2 Operations in Serial Port Communication Mode
Before the laser is powered on, check whether the laser status meets the
following requirements:
(1) The power wiring and control wiring are connected correctly, and the
voltage meets product requirements.
(2) Ensure the laser emission button on the front panel is released and the
level of sixth pin “LAS_C” of “INTERFACE” port on the rear panel is
low.
(3) Status of Interlock is correct..
(4) Make sure that the water cooling system is connected. The water cooler
starts to work, and the temperature of the water is at the proper working
temperature (about 25°C). Check whether there is any leakage issues
within entire water cooling system and the joints.
0V~8V Power feedback analog
