Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3300W~RFL-C15000W
30
(5) Turn the key to “ON” position, and power on the laser, then the green
LED will illumine. Double click the RAYCUS laser client control
software, then the following interface can be seen in Figure 16.

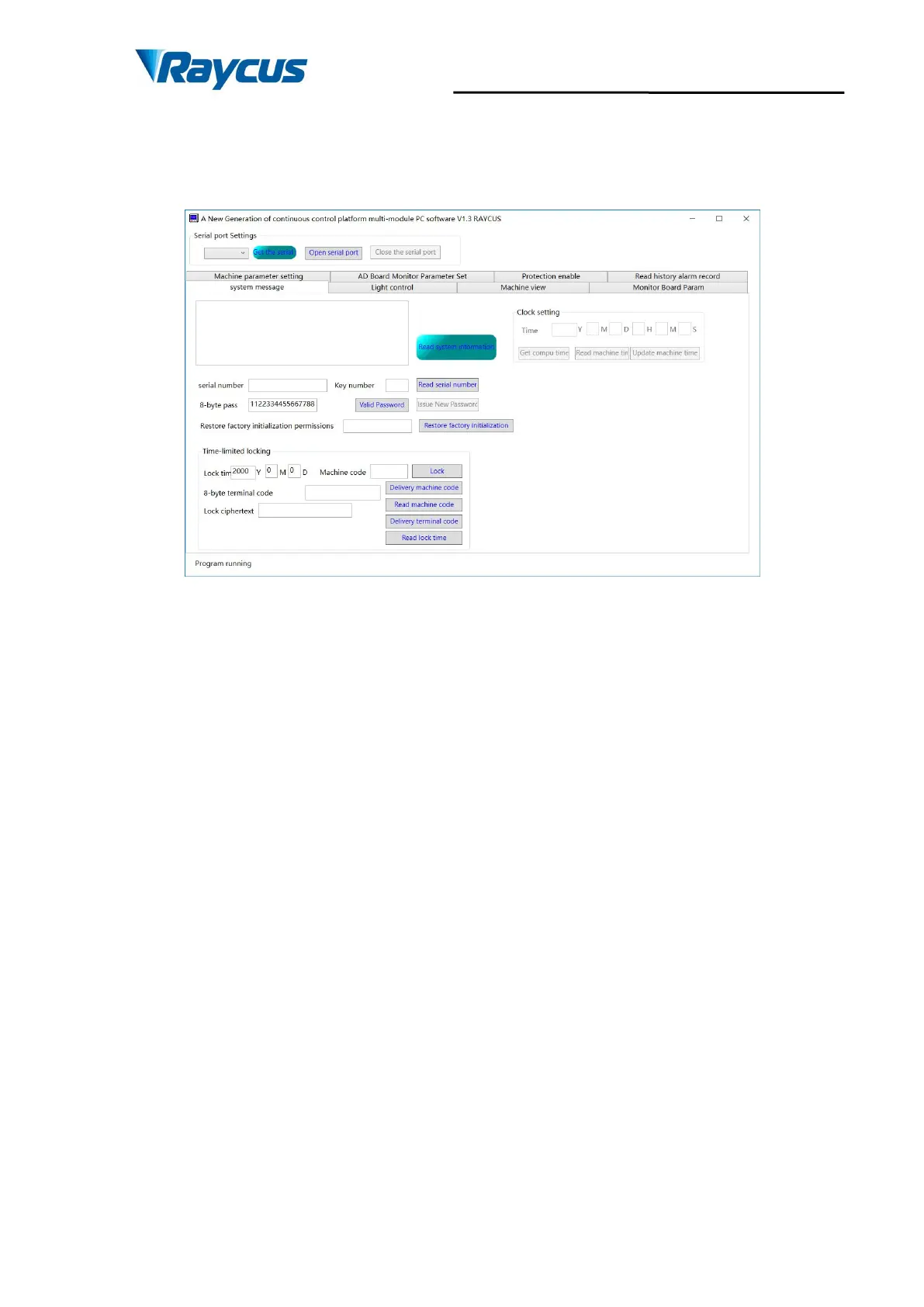

Figure 16 Inteface 1 of the RAYCUS laser client control software.
After self-checking of 20 seconds, users can select the corresponding COM in
the drop-down box and click “Open serial port”. Then click “Read system
information”, and the relevant parameters of the laser can be read by the software
and displayed on the main panel in 1 second, where the panel indicates the
communication between the client control and the laser are normal. Then
operations such as parameter setting 、 laser state reading, and laser emission
controlling can be executed.
(6) After connecting the serial port, select machine view and click “update
parameter” to collect the laser state at present, in Figure 17:
