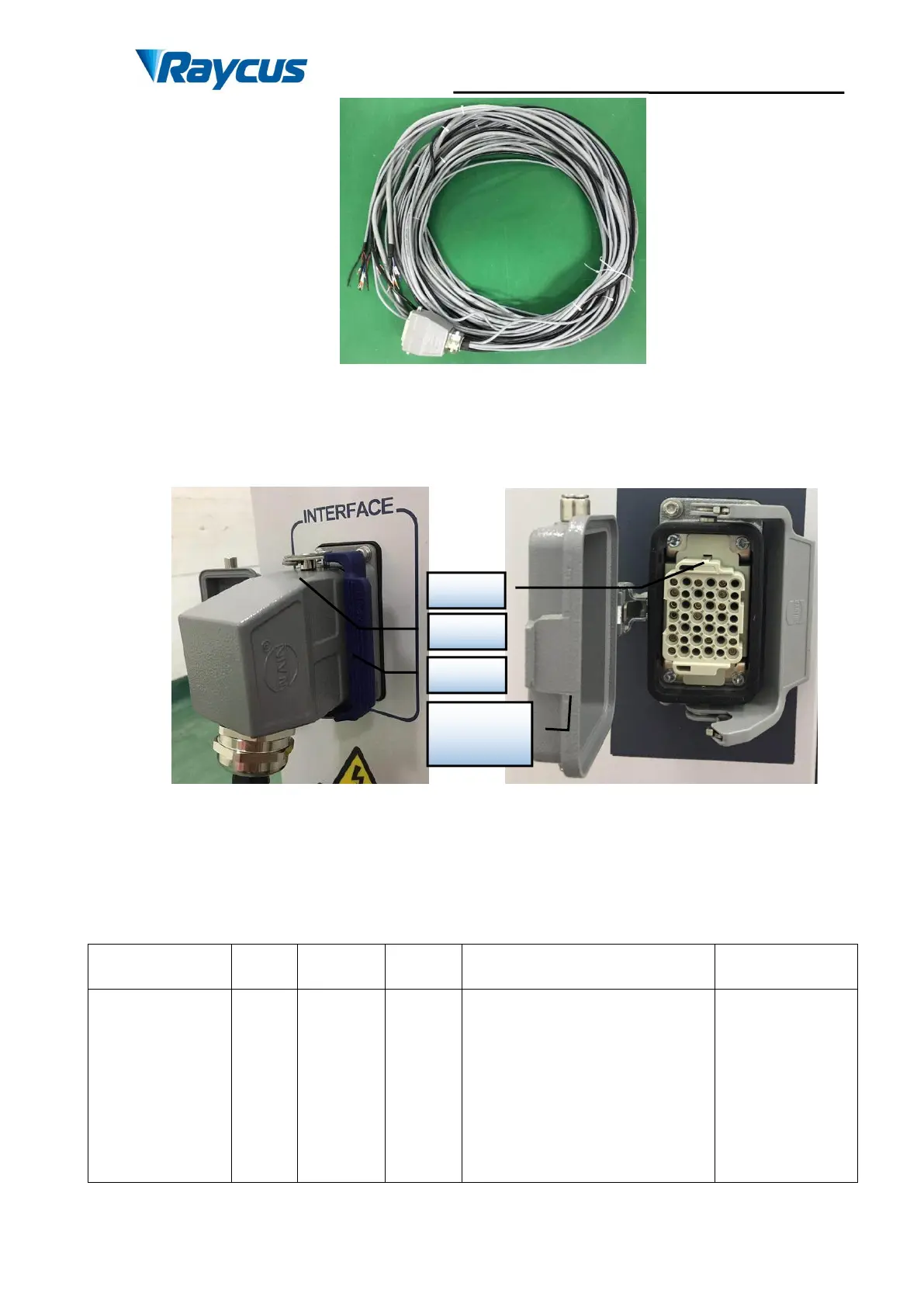

Figure 12 Control cord.
Please insert the control cord we supplied into the “INTERFACE” port on
rear panel when using the product, and lock it, as Figure 13 shows.
Figure 13 Control port and socket on the lock.
The control cord of “INTERFACE” port consists of five different groups of
cords. The definitions of the port are in the following table.
Table 5 Definitions of Control Cord
External control of light
output, high level is 24V.
When the level is high, the
laser emission is ready,
otherwise is disabled. The
function is the same as the
‘LASER’ button on the front
panel. ‘LASER’ and this
control signal can’t work
All reference
ground in
“CONTROL”
cord is “EGND”
