Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C6600S
11
3 Installation
3.1 Dimensions

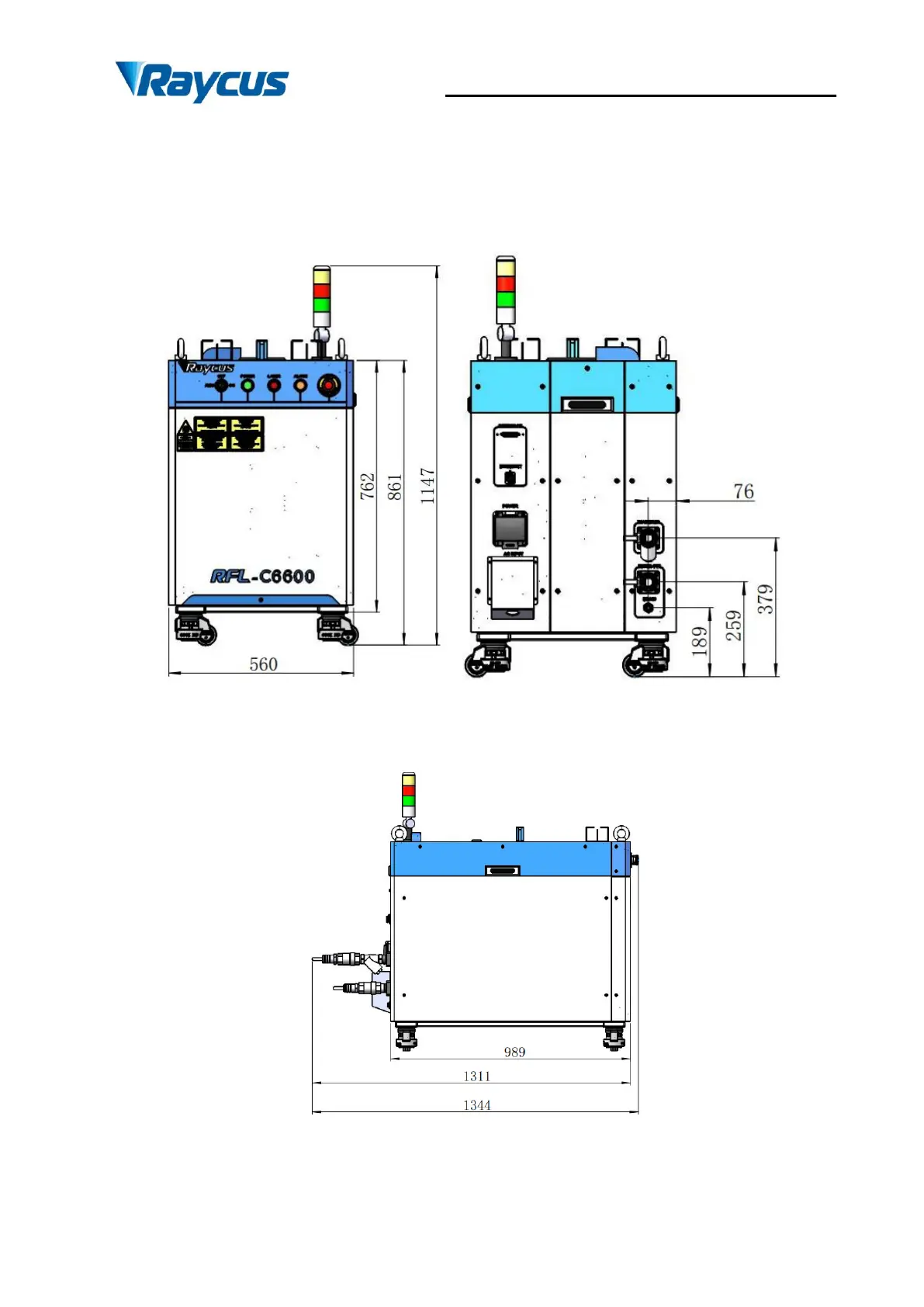

Figure 2 shows dimensions of RFL-C6600S.
Figure 2 (a) Frontand Rear panel view(unit: mm)
Figure2 (b) Top and Side view(unit: mm)
