18
d) ALARM: Alarm indicator, YELLOW, indicates an error condition.
e) EMERGENCY STOP: Press it down to stop the laser immediately. When the button is
in the ‗down‘ position, turn it clockwise to release, but the laser cannot start before it‘s
powered on with key switch for a second time.
4.2 Rear Panel

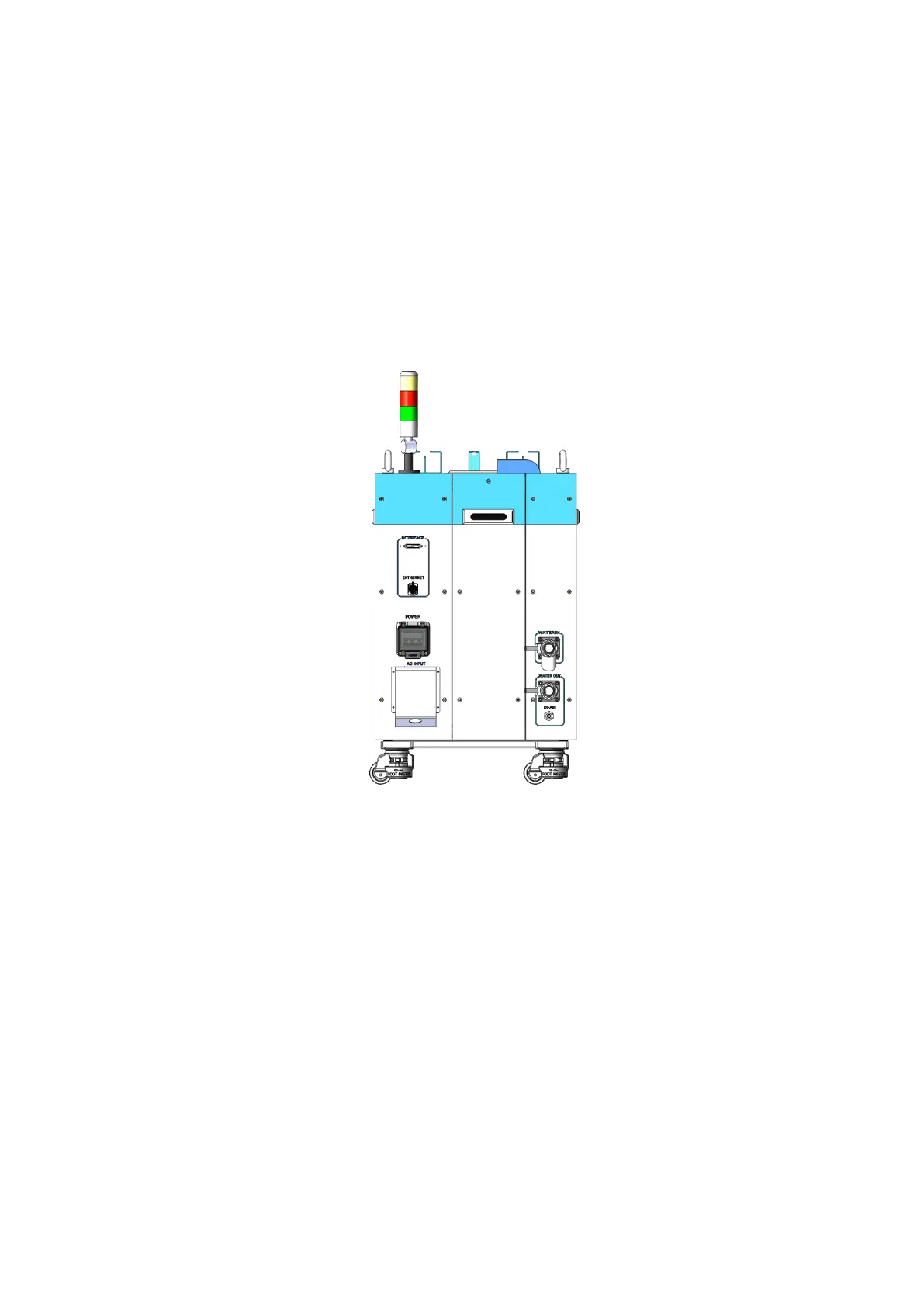

Figure shows the rear panel of RFL-C6600S:
Figure 7 Rear Panel of RFL-C6600S
a) AC INPUT: The socket for supply source input that can only be mated with the plug on
the power cord we provided(See Table 4 product technical parameters for laser model
and corresponding input voltage). Please use only the enclosed power cord provided by
Raycus.
b) POWER:Air switch to control the switching of AC.
c) CTRL-INTERFACE: Control interface, CTRL-INTERFACE interface (DB-25),
multi-function multiplex interface, users can set control mode, input analog voltage
signal, modulate 24V signal, and it is also an alarm signal output interface.
