Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C6600S
19
d) WATER: Pipe connectors, the inlet and outlet for cooling water to flow in and return.
(See Table 5 for the laser model and corresponding water pipe size for cooling system
requirements)
e) ETHERNET: Ethernet interface. It can provide remote control and storage alarm
information for the laser.
f) DRAIN：The built-in dehumidifier has a drainage interface, the built-in dehumidifier
works to condense the water and moisture inside the cabinet into water droplets for
discharge.
4.3 Power Connection
CAUTION: Before connecting the product to AC supply source, you must
check for sure that the AC supply you will apply is in accordance with the
specifications provided in Table 2 or 4.

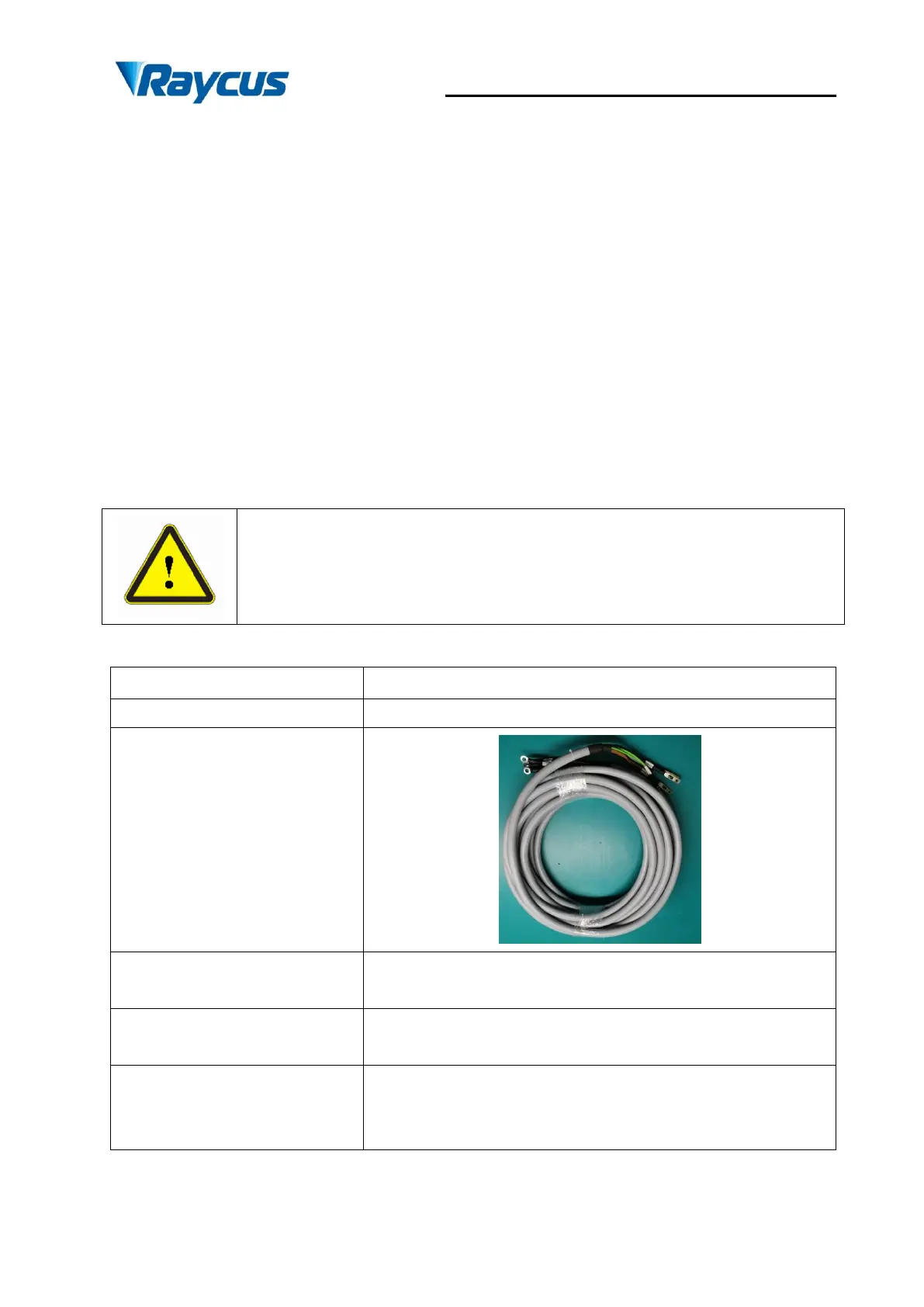

Table 6 Power Connection Requirements
8 wires, each 2 wires are multiplexed, and the diameter of single wire
is 4mm
2
,Four wires labeledL1，L2，L3and PE.
L1，L2，L3-> Phase Line
PE-> Protective Earth
One end of the power cord is a plug, insert it into the socket 'AC
INPUT' on the rear panel. Notice that the plug is wrong-side
preventing. After inserting it, lock it with the lever.
