Raycus RFL-C6600S User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C6600S
47

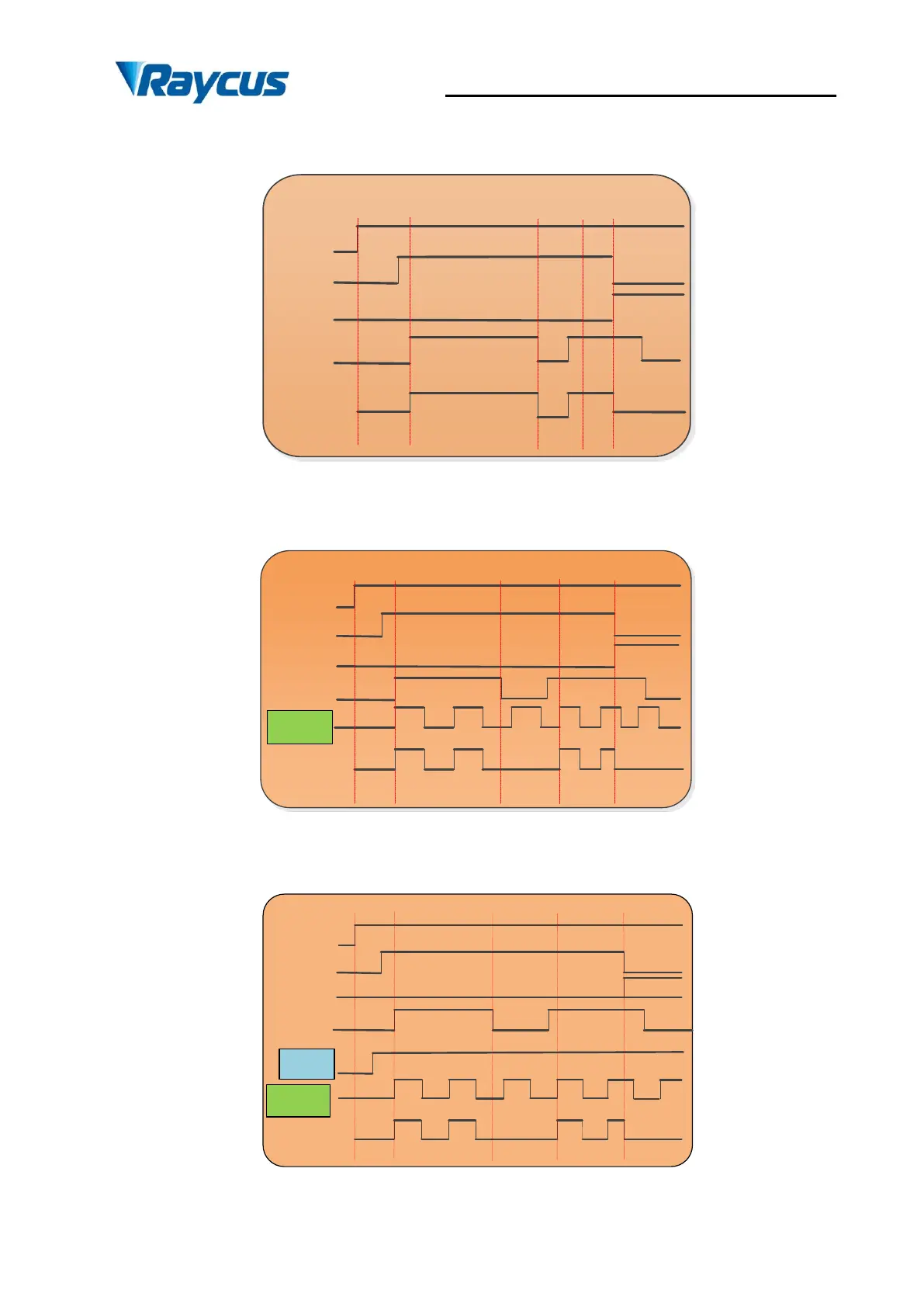

4.11 Laser timing diagram
ON模式——占空比=100% 连续时序图
Power
Ready
ALARM
激光发射
ON/OFF
激光
>10s
>1ms
Figure 38 Control sequence diagram in On mode
调制模式——内部脉冲占空比=100%
Power
Ready
ALARM
激光使能
激光
>10s
>1ms
24针15，16
脚
>1ms
Figure 39 Control sequence diagram of external modulation mode under key "REM"
外部AD模式
Power
Ready
ALARM
激光使能
>10s
>1ms
24针15，16
脚
外部AD
0-10V
激光
>1ms
>1ms
Figure 40 Control sequence diagram of external ad mode under key "REM"
