34

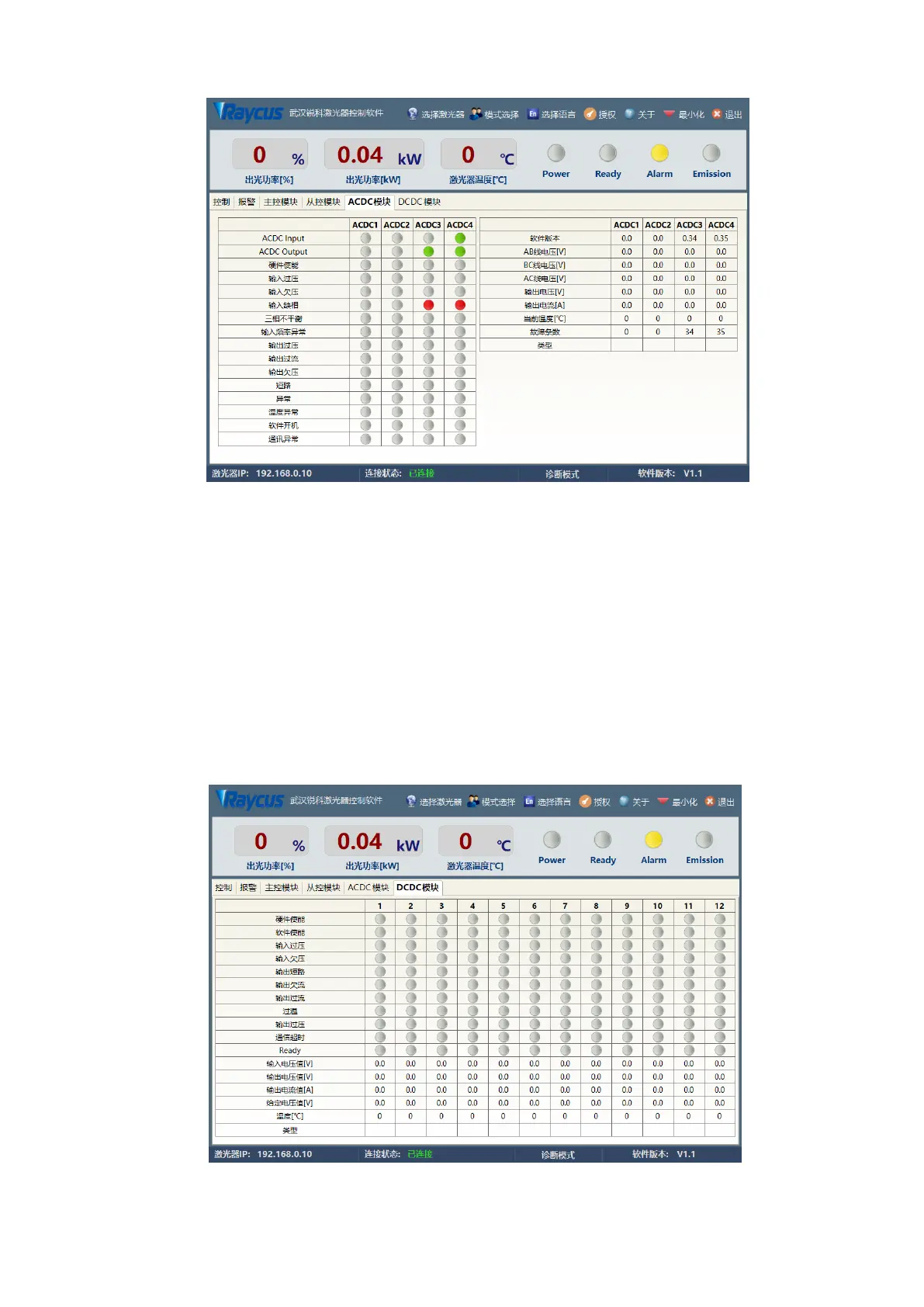

Figure 21 ACDC module interface
4.7.11 DCDC module
The DCDC module page contains the relevant status information of the DCDC module. It
supports up to 12 DCDC modules. The refresh interval of the status information does not exceed
100ms. The data of the DCDC module needs to be forwarded by the main control module, so only
the currently selected page is in the DCDC module. , The upper computer software will
automatically read and refresh the status information, reduce the communication frequency, and
avoid occupying too many resources of the main control module.
Figure 22 DCDC moduleinterface
