77 Chapter 7: Initial Setup
7.4 Configure Nav Stations
For a definition of a Nav station see First time configuration on
page 74.

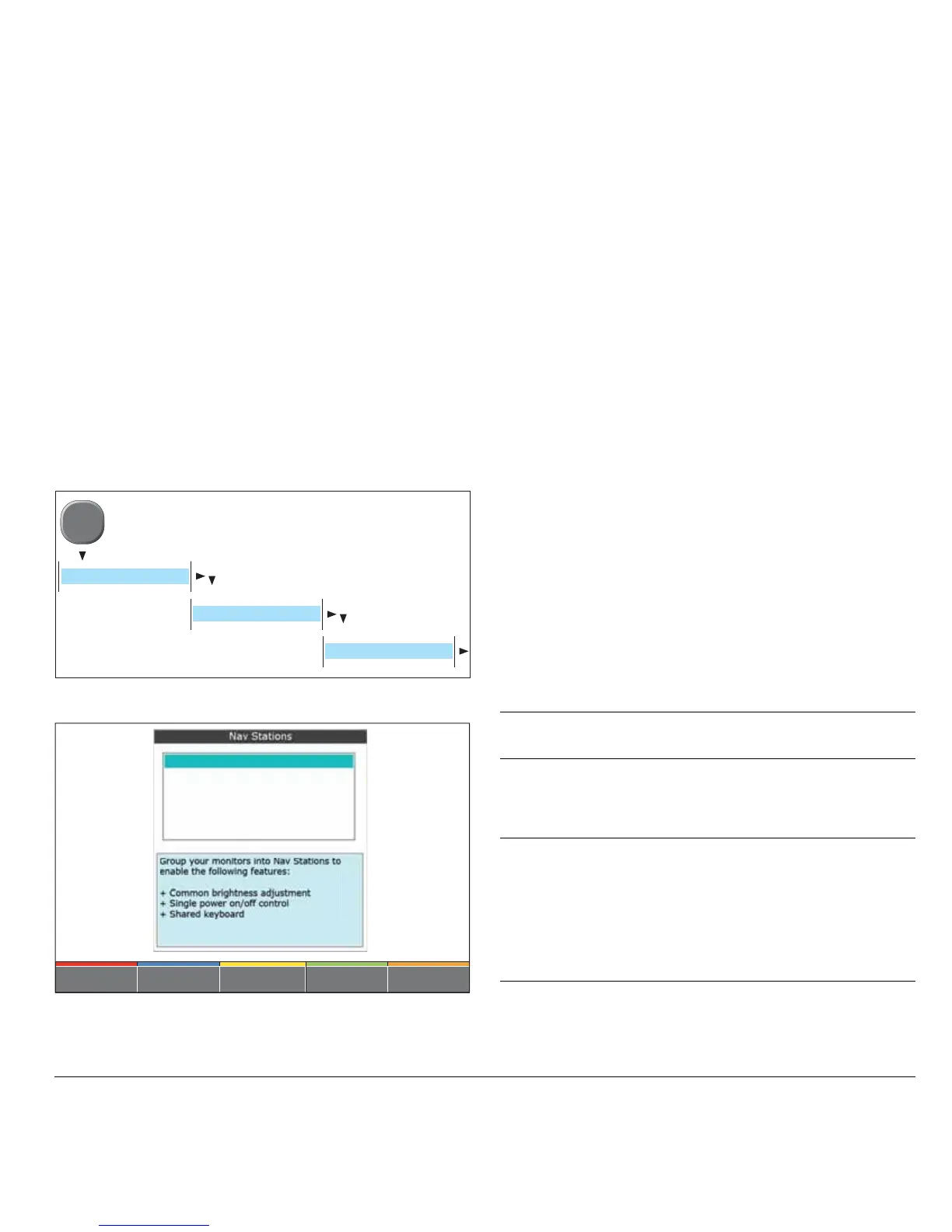

To open the Configure Nav Stations menu:
Nav Stations - menu and soft keys
To create a new Nav Station
from the Configure Nav Stations menu:
1. Press CREATE NAV STATION softkey/
2. Enter the name for the Nav Station.
i. Press SELECT NAME to select from the list of pre defined
names. OR
ii. Press EDIT NAME to use a custom name.
3. Press OK when complete.
To assign monitors to a Nav Station
from the Configure Nav Stations menu:
1. Select the appropriate Nav Station from those displayed
2. Press ASSIGN MONITORS.
3. Select the monitors to be added.
i. Press ADD RAY Monitor to select from the Raymarine
monitors connected to the system. OR
ii. Press ADD OTHER MONITOR to select a non Raymarine
monitor.
4. Enter the appropriate information for the monitor type selected.
D10336-1
MENU
SYSTEM SETUP
SYSTEM CONFIGURATION
CONFIGURE NAV STATIONS
DELETE NAV STSTIONCREATE NAV STATIONASSIGN MONITORS... EDIT NAME
D10337-1
Assign monitors
Information required
Monitor
type(s)
Name
•Press SELECT NAME to select from the list of pre
defined names. OR
•Press EDIT NAME to use a custom name.
ALL
GPM
From the list displayed, select the GPM to which the
monitor is connected.
• DISCOVER GPM
If you are unsure of which GPM to select, press the
DISCOVER GPM softkey to show a message on
every monitor which identifies the GPM to which it is
connected.
ALL
